Unit · AXIAL-PISTON PUMP

AE A10VSO 28 DR /31R-PPA12K01R910913883

Axial piston pump Bosch Rexroth series A10VSO, type code AEA10VSO28DR/31R-PPA12K01, material number R910913883. Nominal size: NG 28. Version: HFA, HFB, HFC hydraulic fluid (E). Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01).

Number
R910913883
Type code
AE A10VSO 28 DR /31R-PPA12K01
Group
A10VSO 28
Edition
06/2020

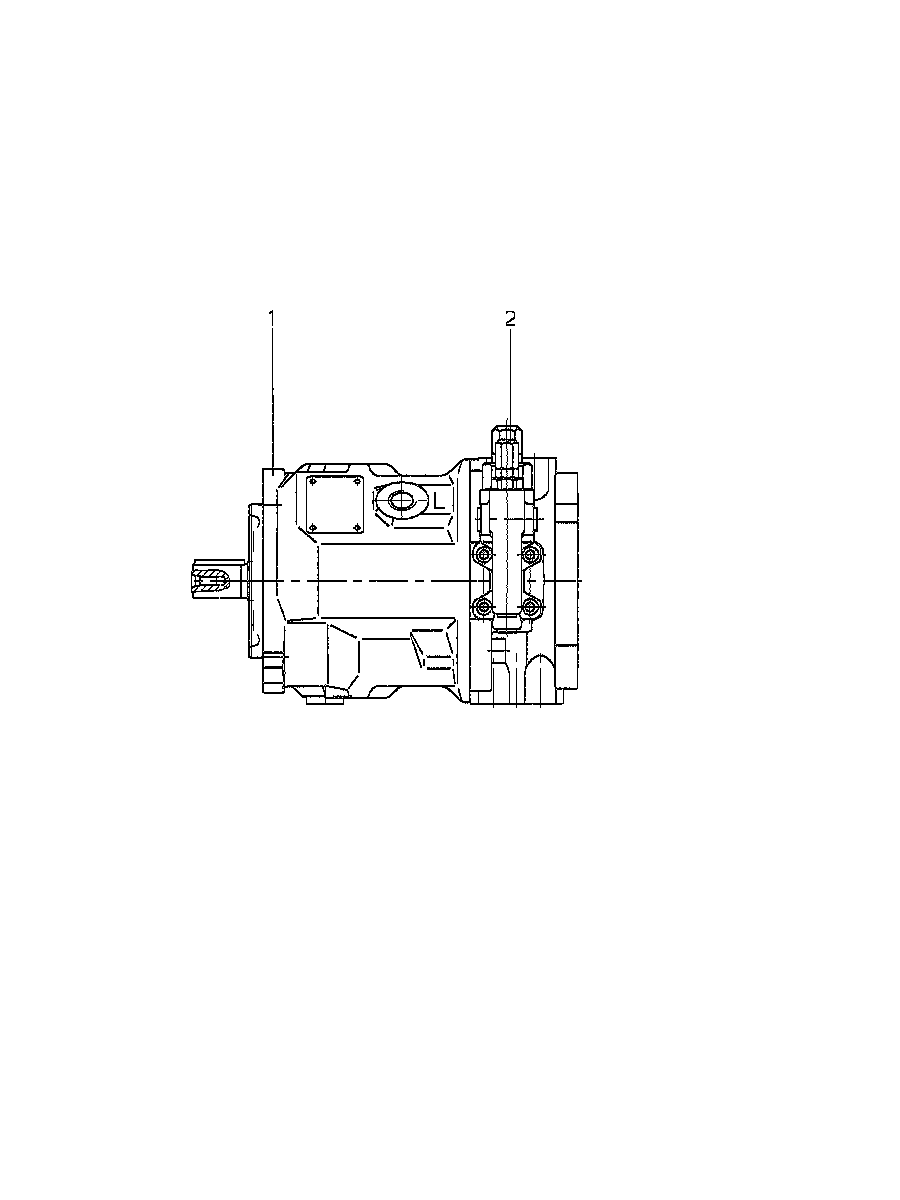

AE A10VSO 28 DR /31R-PPA12K01 — Drawing
Pos.NumberNameQtyAdd to inquiry
1R910911336BASE UNIT Assembly parts list →L1
2R902488507CONTROL VALVE Assembly parts list →L1
70R902421944SHIPPING PROTECTION1
71R902421946SHIPPING PROTECTION1
72R902602010SEAL SCREW1
74R902602975FLANGE COVER1
75R909830326NAMEPLATE1

Parameters from the type code

ItemMeaningCode
VersionHFA, HFB, HFC hydraulic fluidE
Axial piston unitSwashplate design, variable, nominal pressure 280 bar, maximum pressure 350 barA10VS
Operating modePump, open circuitO
Size (NG)2828
Control devicePressure controller hydraulicDR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialNBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluidP
Drive shaftParallel keyed shaft DIN 6885 permissible through-drive torqueP
Mounting flangeISO 3019-2 2-holeA
Working portSAE flange ports according to ISO 6162, metric fastening thread laterally opposite12
Through drive82-2 (A) 5/8 in 9T 16/32DPK01
