Unit · BASE UNIT
GE A10V O 28 OV /31L-PSC62N00R910913903
Base unit Bosch Rexroth series A10VO, type code GEA10VO28OV/31L-PSC62N00, material number R910913903. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: without through drive (N00).
- Number
- R910913903
- Type code
- GE A10V O 28 OV /31L-PSC62N00
- Group
- A10VO 28
- Edition
- 06/2020

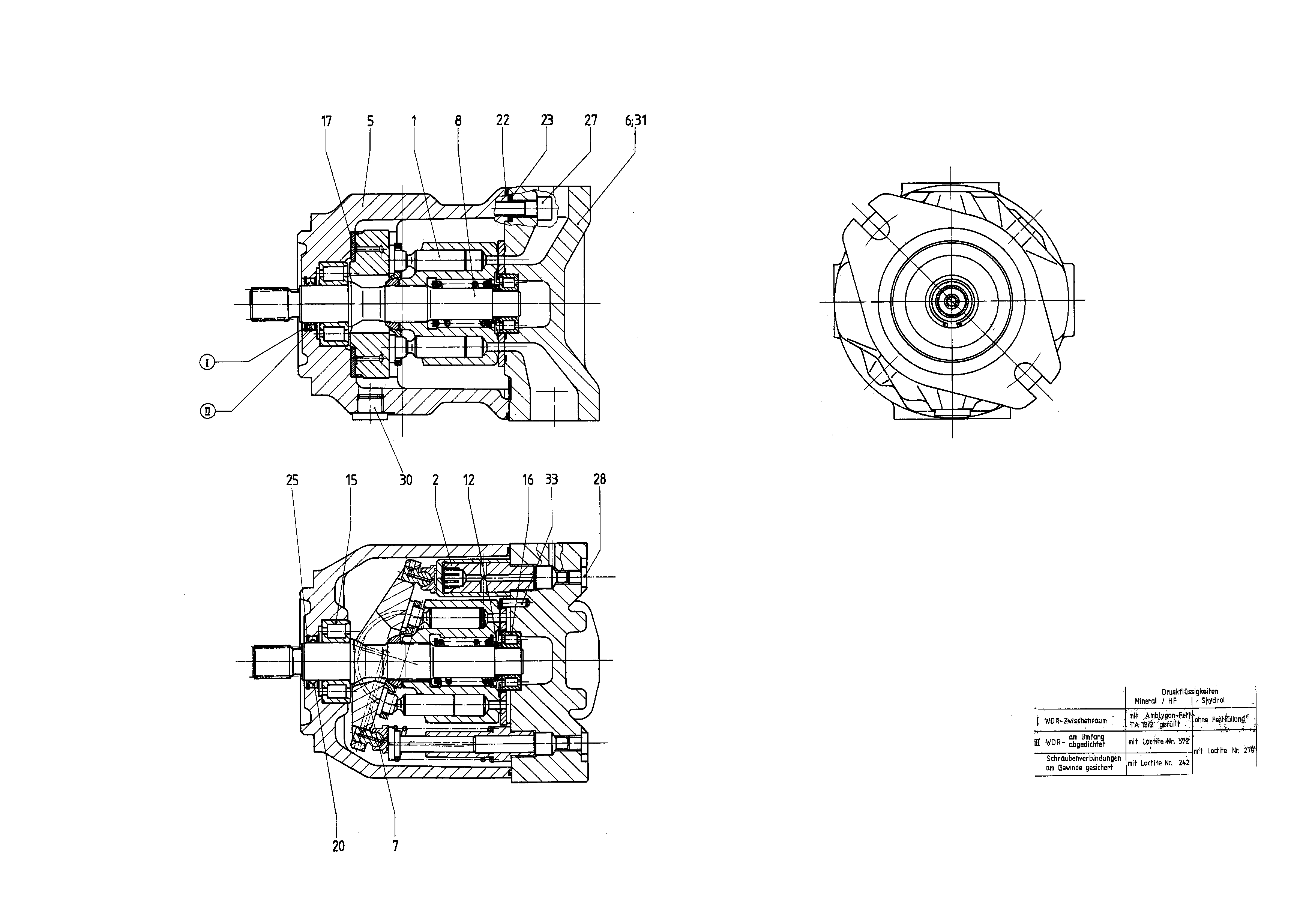

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902439596 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910911162 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902550217 | PUMP HOUSING | 1 | ||
| R910947997 | CONNECTION PLATE | 1 | ||
| R910960999 | SWASH PLATE | 1 | ||
| R902417366 | DRIVE SHAFT | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 2 | ||
| R910739502 | CYL. ROLLER BEARING | 1 | ||
| R910739529 | CYL. ROLLER BEARING | 1 | ||
| R910902778 | BEARING SHELL | 2 | ||
| R910916103 | SHAFT SEALING RINGD | 1 | ||
| R910730041 | O-RINGD | 1 | ||
| R913052108 | R-RINGD | 4 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909153338 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | Without through drive | N00 |
Other versions 7
- R910915642 G A10V O 28 OV /31L-PSC62N00 -SO 13
- R902437251 G A10V O 28 OV /31L-PSC62N00 -SO239
- R910989283 G A10V O 28 OV /31L-PSC62N00 -SO753
- R902403487 G A10V O 28 OV /31L-PSC62N00 -SO854
- R910905742 GA10VO28OV/31L-PSC62N00
- R910914934 GA10VO28OV/31L-PSC62N00-SO97
- R910913335 GE A10V O 28 OV /31L-PSC62N00 -SO 97
