Unit · AXIAL-PISTON MOTOR
AA6VM250EP2/61W-PZB010A-SO13R910914020
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM250EP2/61W-PZB010A-SO13, material number R910914020. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EP2). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports Without valve 0 A and B at rear 01 (010). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S). Special version no. 13.
- Number
- R910914020
- Type code
- AA6VM250EP2/61W-PZB010A-SO13
- Group
- A6VM 250
- Edition
- 06/2020

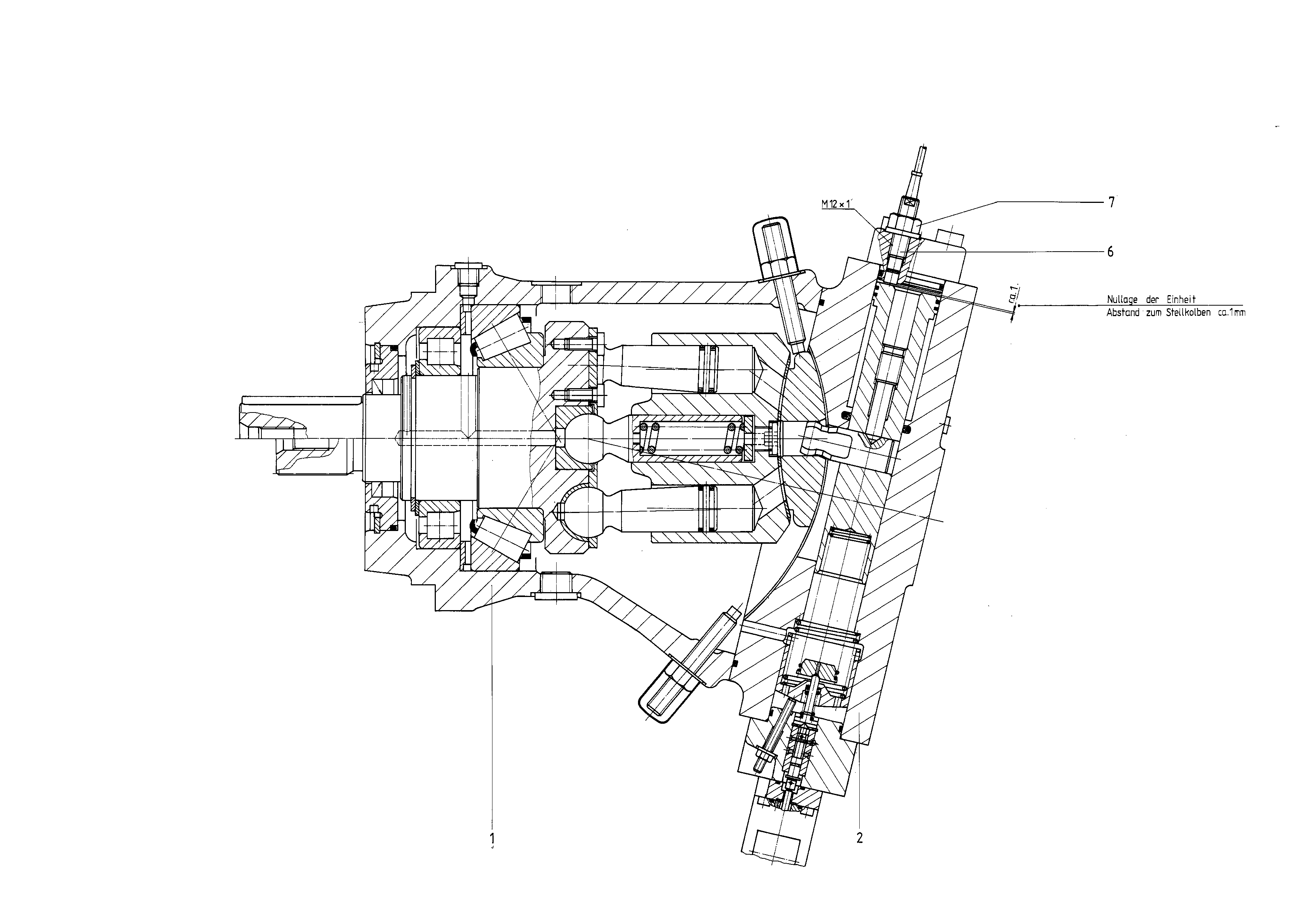

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910905222 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | |
| R910914010 | CONTROL Assembly parts list →L | 1 | ||
| 6 | R910914023 | DUMMY | 1 | |
| 7 | R910802102 | DUMMYD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EP2 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
