Unit · AXIAL-PISTON PUMP
AA10VSO45+DFLR/31R-PPA12K68-SO18R910914131
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO45+DFLR/31R-PPA12K68-SO18, material number R910914131. Nominal size: NG 45. Operating mode: pump, open circuit (O).
- Number
- R910914131
- Type code
- AA10VSO45+DFLR/31R-PPA12K68-SO18
- Group
- A10VSO 45
- Edition
- 06/2020

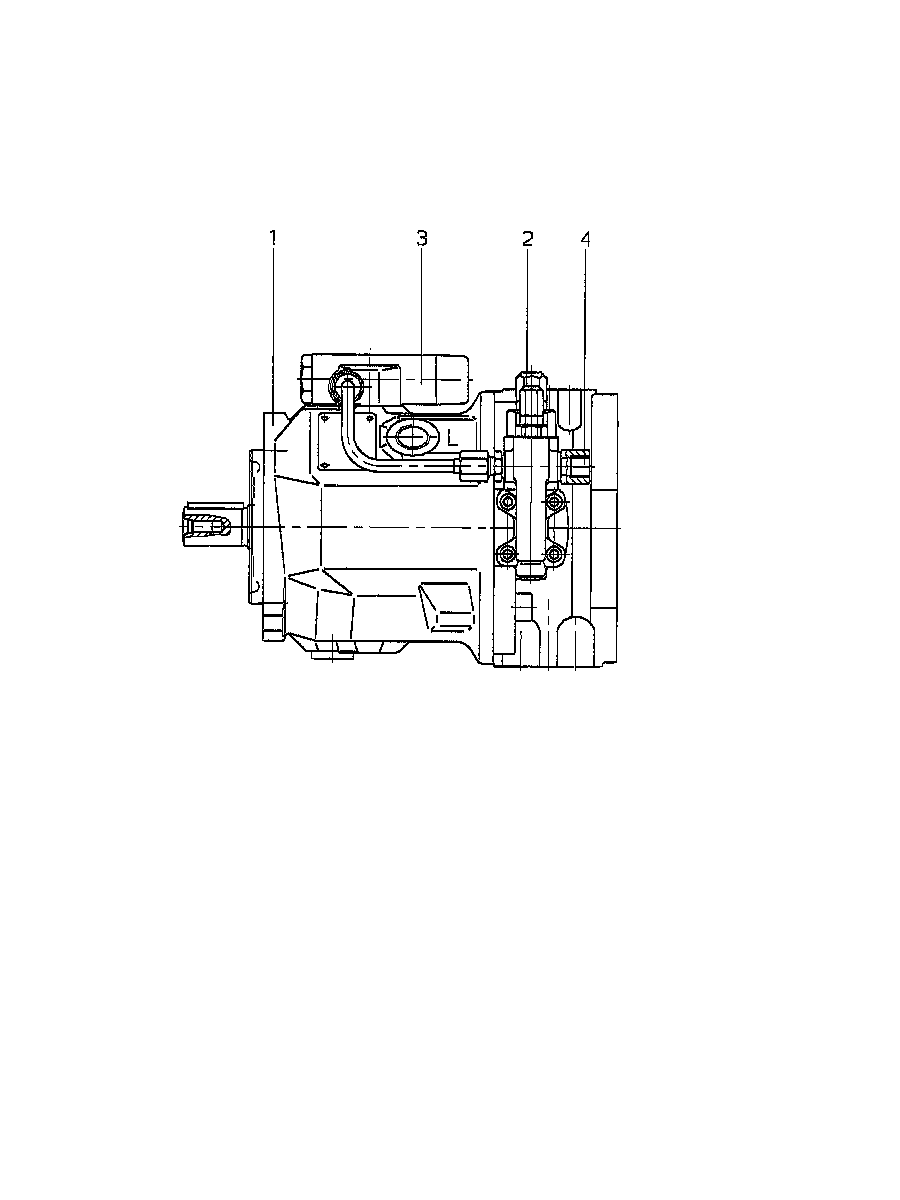

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910913742 | BASE UNIT Assembly parts list →L | 1 | |
| 2 | R902450439 | CONTROL VALVE Assembly parts list →L | 1 | |
| 3 | R902533217 | CONTROL VALVE Assembly parts list →L | 1 | |
| 4 | R910932941 | ADAPTER Assembly parts list →L | 1 | |
| 10 | R910960164 | PIPING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
