Unit · CONTROL
V AA6V M 250 EZ2 /61-P527R910914660
Control Bosch Rexroth series A6VM, type code VAA6VM250EZ2/61-P527, material number R910914660. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: two-point control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EZ2). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (527).
- Number
- R910914660
- Type code
- V AA6V M 250 EZ2 /61-P527
- Group
- A6VM 250
- Edition
- 06/2020

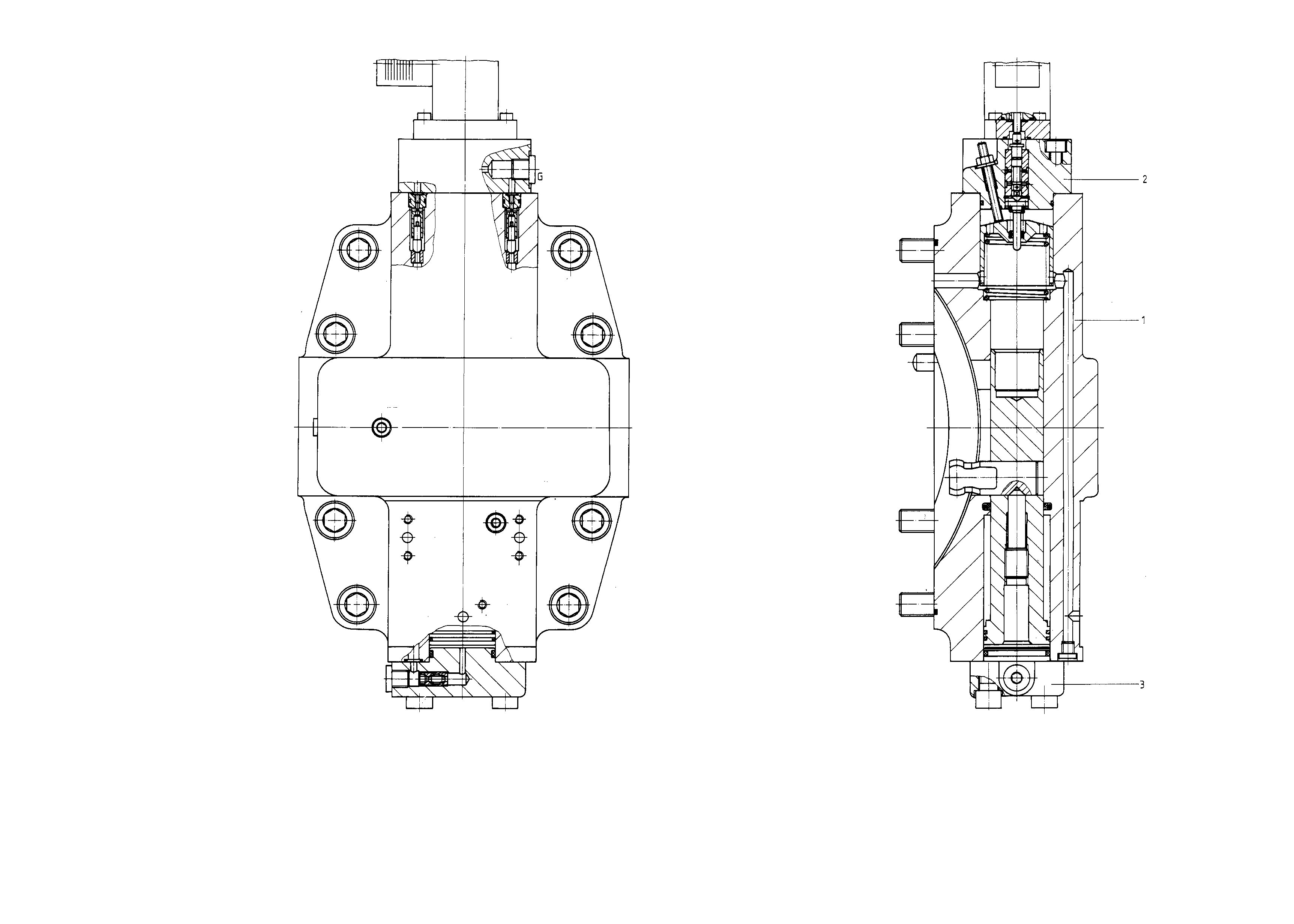

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910909398 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| 2 | R910914661 | CONTROL PART Assembly parts list →L | 1 | |
| 3 | R910914662 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Two-point control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EZ2 |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 527 |
