Unit · BASE UNIT
G A10V O 28 OV /31L-PSC61N00 -SO 57R910914802
Base unit Bosch Rexroth series A10VO, type code GA10VO28OV/31L-PSC61N00-SO57, material number R910914802. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC Not for through drive (61). Through drive: without through drive (N00). Special version no. 57.
- Number
- R910914802
- Type code
- G A10V O 28 OV /31L-PSC61N00 -SO 57
- Group
- A10VO 28
- Edition
- 06/2020

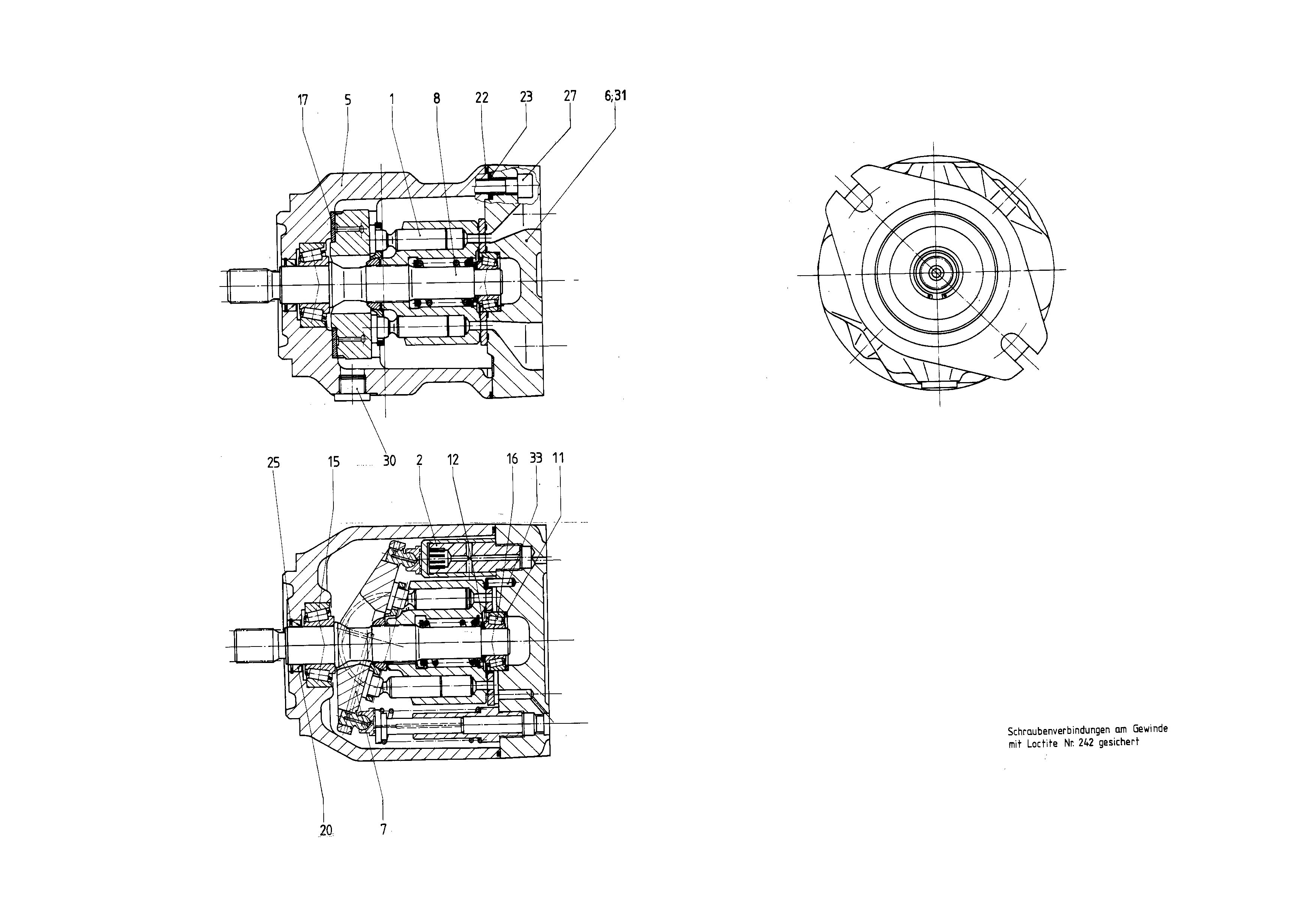

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902439596 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910911162 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902550217 | PUMP HOUSING | 1 | ||
| R910907564 | CONNECTION PLATE | 1 | ||
| R910960999 | SWASH PLATE | 1 | ||
| R902417366 | DRIVE SHAFT | 1 | ||
| R910744158 | WASHER | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R910902778 | BEARING SHELL | 2 | ||
| R910794325 | SHAFT SEALING RINGD | 1 | ||
| R910730041 | O-RINGD | 1 | ||
| R913052108 | R-RINGD | 4 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153338 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC Not for through drive | 61 |
| Through drive | Without through drive | N00 |
