Unit · AXIAL-PISTON PUMP
AEA10VSO28+DR/31L-PSC12N00R910914834
Axial piston pump Bosch Rexroth series A10VSO, type code AEA10VSO28+DR/31L-PSC12N00, material number R910914834. Nominal size: NG 28. Version: HFA, HFB, HFC hydraulic fluid (E). Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O).
- Number
- R910914834
- Type code
- AEA10VSO28+DR/31L-PSC12N00
- Group
- A10VSO 28
- Edition
- 06/2020

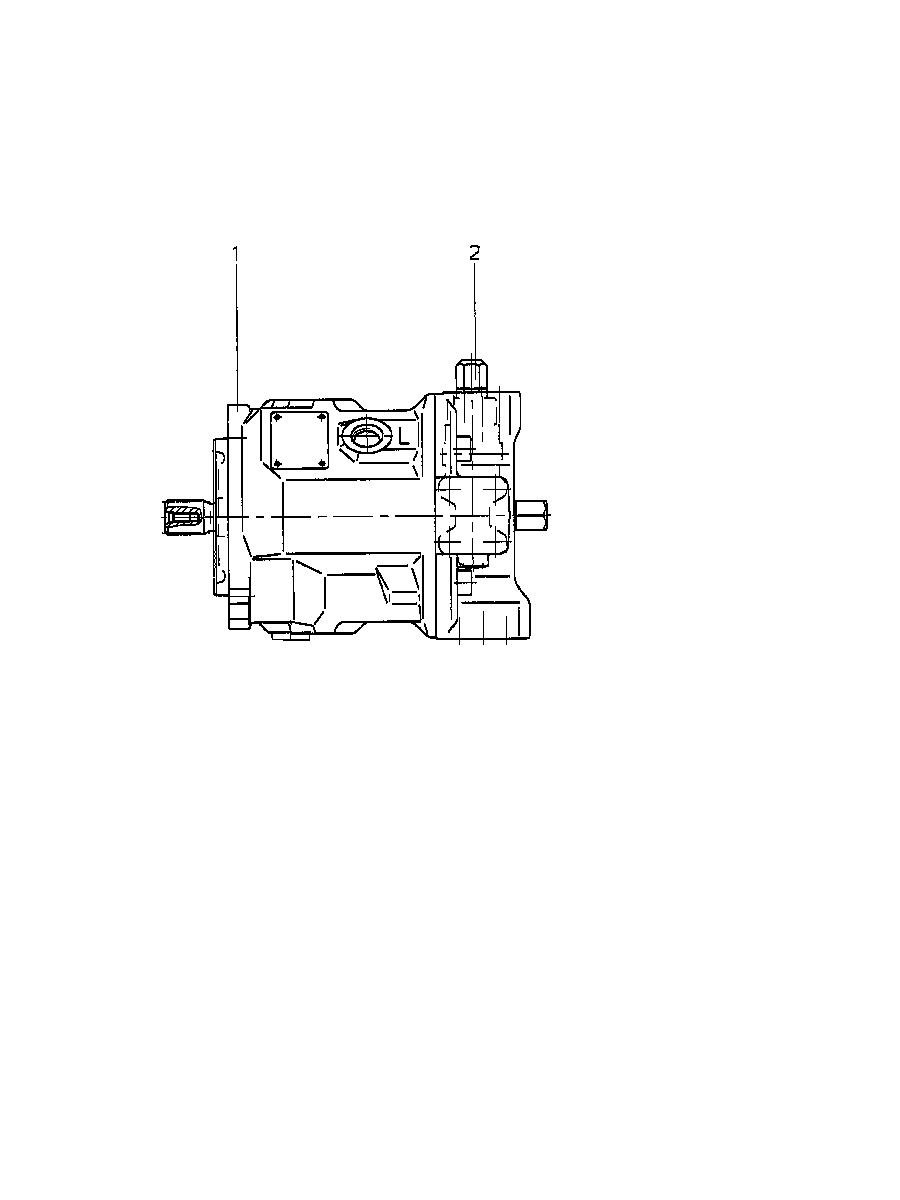

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910914772 | BASE UNIT Assembly parts list →L | 1 | ||
| 2 | R902488507 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | HFA, HFB, HFC hydraulic fluid | E |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
