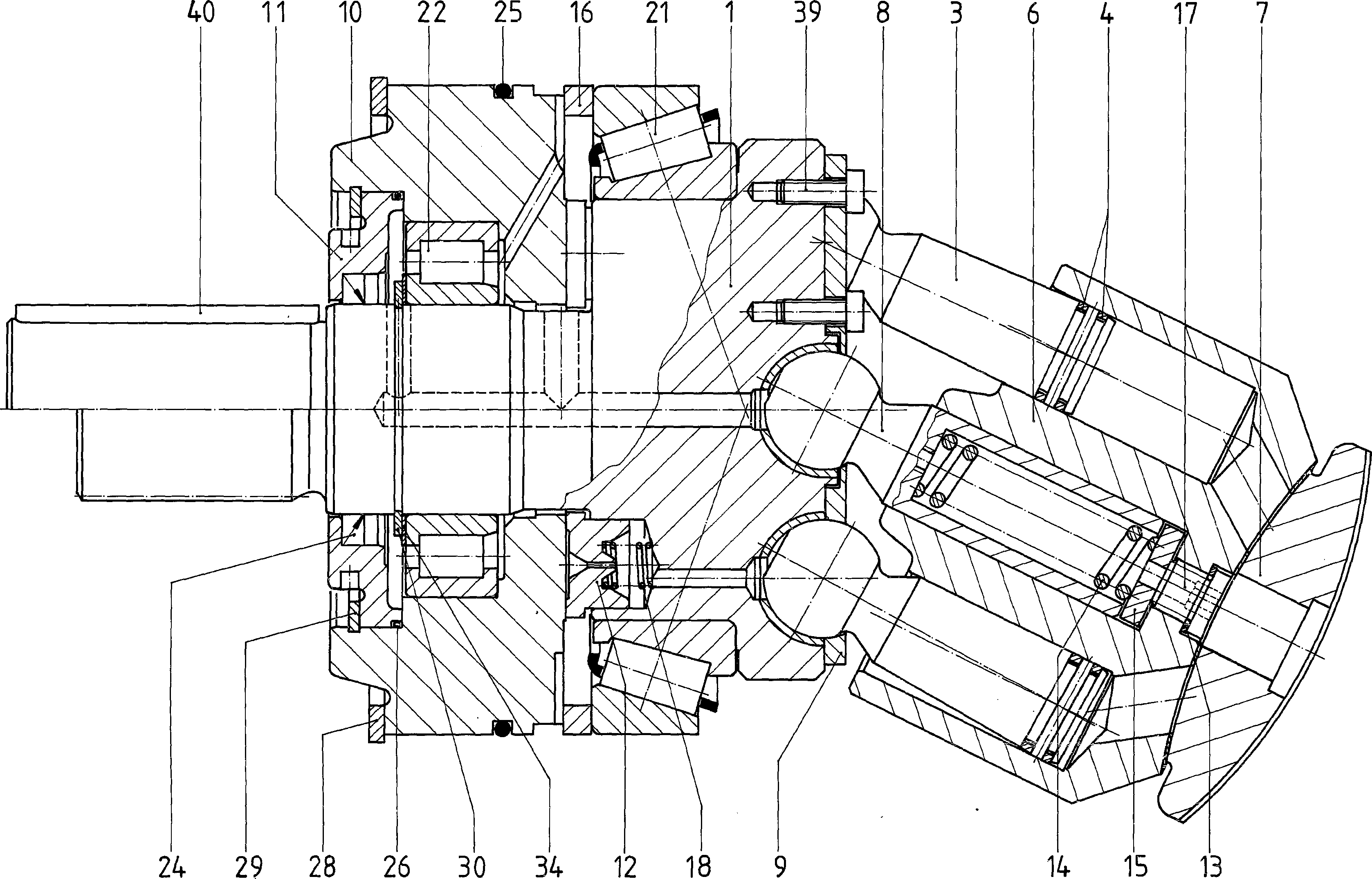

Unit · ROTARY GROUP
TWA6VLM355/61W-VZR910914853
Rotary group Bosch Rexroth series A6VM, type code TWA6VLM355/61W-VZ, material number R910914853. Nominal size: NG 355. Axial piston unit: bent-axis design, variable (A6V). Drive shaft bearing: long-life bearing (L). Operating mode: motor (M). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z).
- Number
- R910914853
- Type code
- TWA6VLM355/61W-VZ
- Group
- A6VLM 355
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902512797 | DRIVE FLANGE | 1 | ||
| R902567608 | PISTON | 7 | ||
| R902490713 | CYLINDER | 1 | ||
| R902537039 | CONTROL LENS | 1 | ||
| R902537507 | THRUST JOURNAL | 1 | ||
| R902556371 | RETAINING PLATE | 1 | ||
| R910937898 | BEARING RING | 1 | ||
| R910921149 | SEALING FLANGE | 1 | ||
| R910742465 | PAD | 7 | ||
| R910936002 | SHIM RING | 1 | ||
| R910933287 | COMPRESSION SPRING | 1 | ||
| R910933031 | WASHER | 1 | ||
| R902416438 | TUNING KIT | 1 | ||
| R910933066 | SPACER SCREW | 1 | ||
| R910717207 | COMPRESSION SPRING | 7 | ||
| R902650817 | TAPERED-ROLLER BEARING | 1 | ||
| R910914860 | CYL. ROLLER BEARING | 1 | ||
| R909831663 | ROTARY SHAFT LIP SEALD | 1 | ||
| R910636355 | O-RINGD | 1 | ||
| R910921211 | O-RINGD | 1 | ||
| R910513202 | RETAINING RING | 1 | ||
| R910106135 | RETAINING RING | 1 | ||
| R910083895 | RETAINING RING | 1 | ||
| R910677493 | SHIM RING | 1 | ||
| R902602715 | PAN-HEAD SCREW | 14 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Drive shaft bearing | Long-life bearing | L |
| Operating mode | Motor | M |
| Size (NG) | 355 | 355 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
