Unit · BASE UNIT
G A4VSO 71 M/10X-PPB13K02R910916138
Base unit Bosch Rexroth series A4VSO, type code GA4VSO71M/10X-PPB13K02, material number R910916138. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) Metric (A4VS). Operating mode: pump, open circuit (O). Drive shaft: parallel keyed shaft DIN 6885 (P).
- Number
- R910916138
- Type code
- G A4VSO 71 M/10X-PPB13K02
- Group
- A4VSO 71
- Edition
- 06/2020

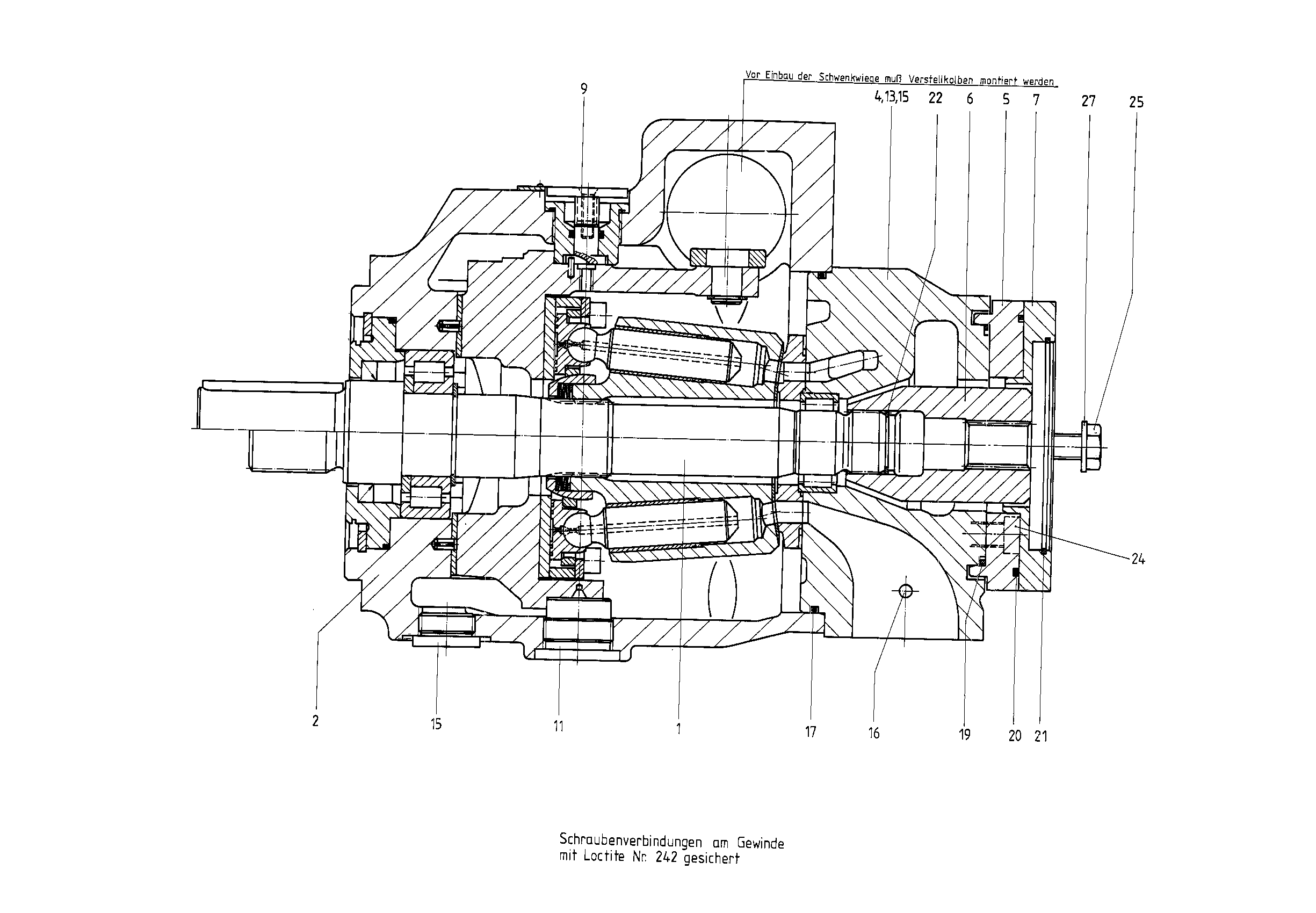

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910932035 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 4 | R910900953 | CONNECTION PLATE | 1 | |
| 5 | R902561231 | FLANGE | 1 | |
| 6 | R902561233 | SPLINED COUPLING | 1 | |
| R902420794 | INTERMEDIATE FLANGE | 1 | ||
| R910798363 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| 11 | R910798355 | STUD BOLT Assembly parts list →L | 1 | |
| 13 | R910402303 | SOCKET HEAD CAP SCREW | 4 | |
| 15 | R909153365 | SCREW PLUGD | 4 | |
| R909151979 | SCREW PLUGD | 3 | ||
| 17 | R910765325 | O-RINGD | 1 | |
| 19 | R910661813 | O-RINGD | 1 | |
| 20 | R910941107 | O-RINGD | 1 | |
| 21 | R910787655 | O-RINGD | 1 | |
| 24 | R910714917 | SOCKET HEAD CAP SCREW | 4 | |
| R910104922 | HEXAGON SCREW | 2 | ||
| R910186732 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) Metric | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 1, index 0 (series 1, index 1, only for control HD and EP) | 10 |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Through-drive | 2 | 02 |
