Unit · AXIAL-PISTON PUMP
AA10VSO28+DR/31R-PPA12K01-SO164R910916563
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO28+DR/31R-PPA12K01-SO164, material number R910916563. Nominal size: NG 28. Operating mode: pump, open circuit (O).
- Number
- R910916563
- Type code
- AA10VSO28+DR/31R-PPA12K01-SO164
- Group
- A10VSO 28
- Edition
- 06/2020

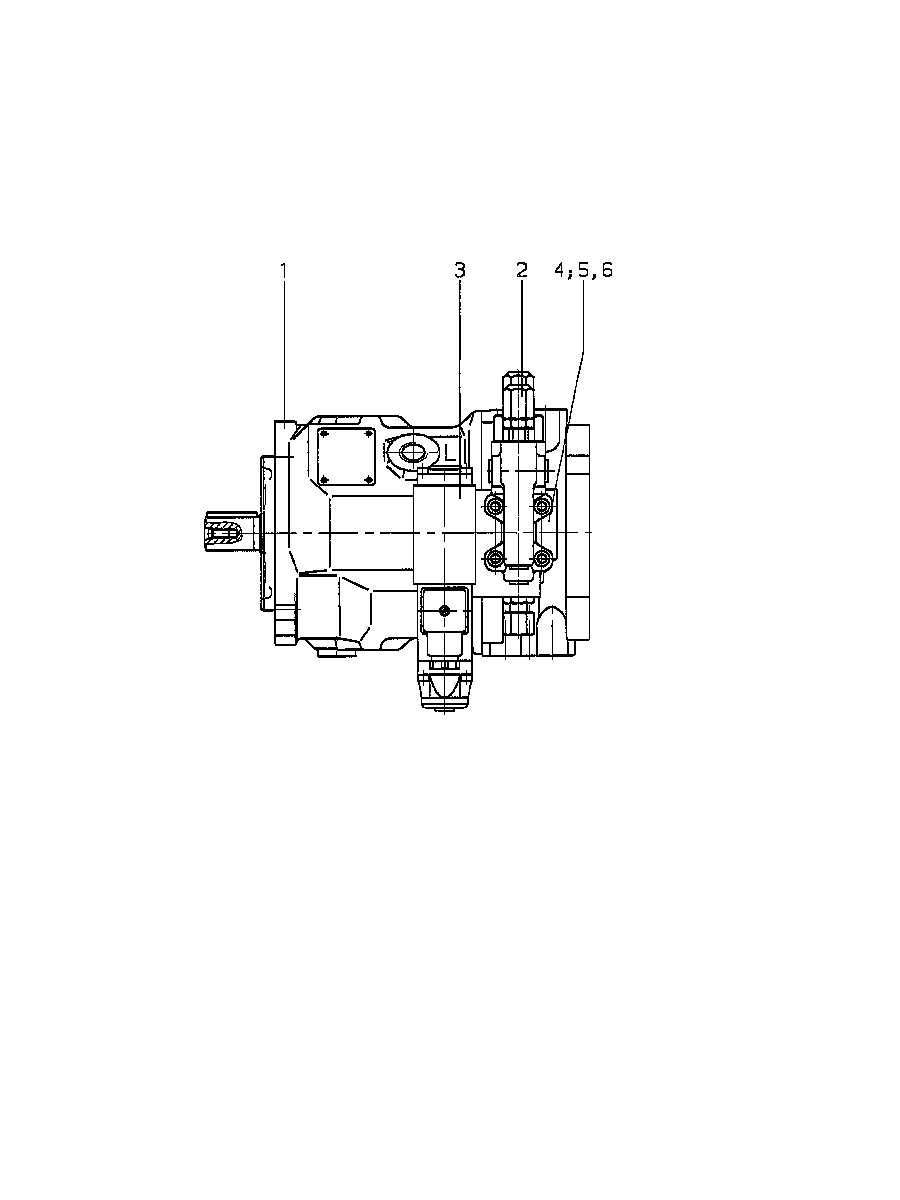

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910904180 | BASE UNIT Assembly parts list →L | 1 | |
| 2 | R902453112 | CONTROL VALVE Assembly parts list →L | 1 | |
| R910916567 | DIRECTIONAL SPOOL VALVE | 1 | ||
| 4 | R902472640 | CONTROL BLOCK Assembly parts list →L | 1 | |
| 5 | R902650500 | SOCKET HEAD CAP SCREW | 4 | |
| 6 | R910515078 | O-RINGD | 3 | |
| 9 | R910785105 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
