Unit · BASE UNIT
G A10V O 45 OV /3XR-PSC62N00 MESSEMOD.R910917041
Base unit Bosch Rexroth series A10VO, type code GA10VO45OV/3XR-PSC62N00MESSEMOD., material number R910917041. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: without through drive (N00).
- Number
- R910917041
- Type code
- G A10V O 45 OV /3XR-PSC62N00 MESSEMOD.
- Group
- A10VO 45
- Edition
- 06/2020

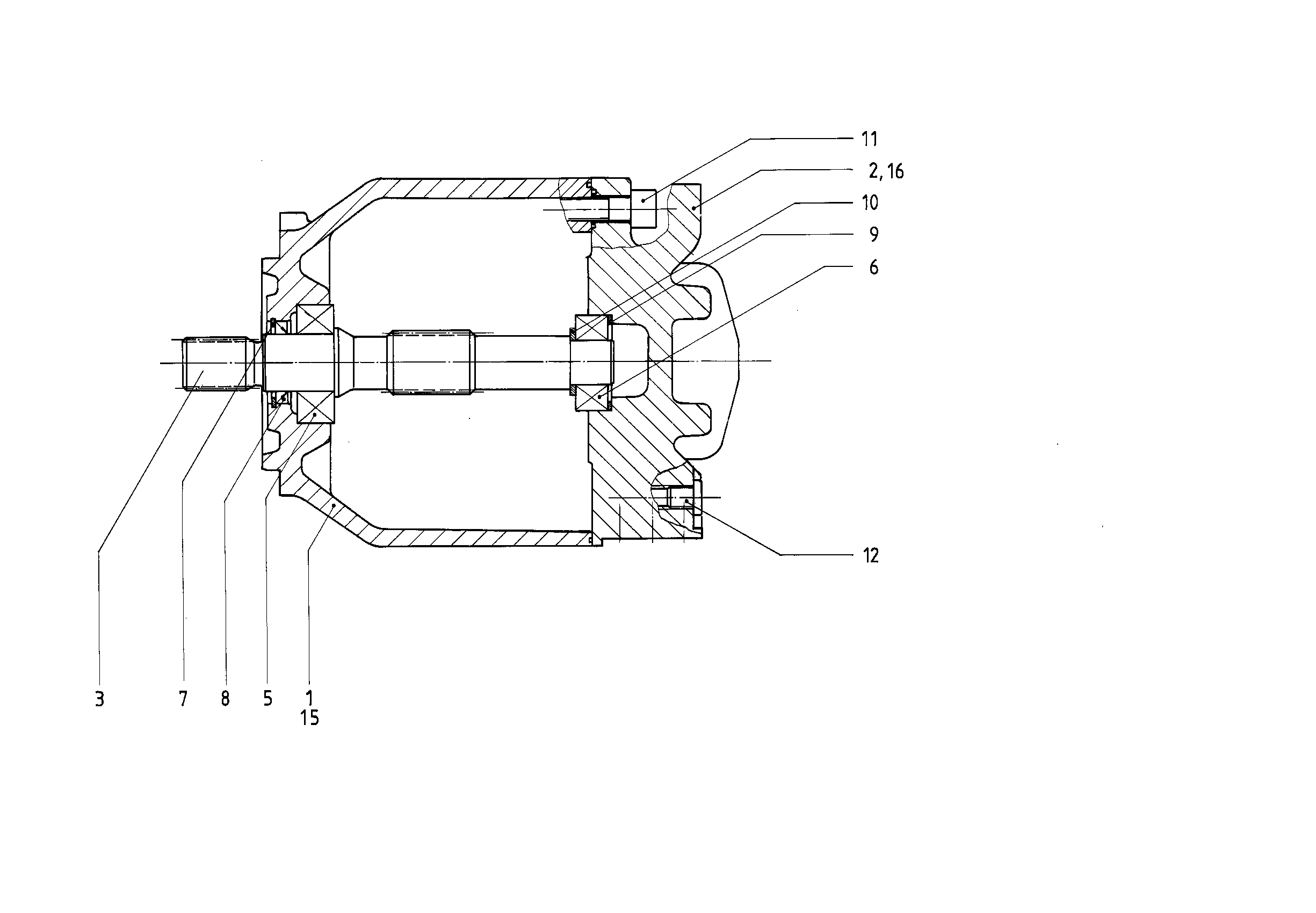

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902546051 | PUMP HOUSING | 1 | |
| 2 | R910985653 | CONNECTION PLATE | 1 | |
| 3 | R910763934 | DRIVE SHAFT | 1 | |
| 5 | R910704946 | TAPERED-ROLLER BEARING | 1 | |
| 6 | R910704954 | TAPERED-ROLLER BEARING | 1 | |
| 7 | R902403814 | RETAINING RING | 1 | |
| 8 | R910793671 | SHAFT SEALING RINGD | 1 | |
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| 16 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | Without through drive | N00 |
