Unit · AXIAL-PISTON MOTOR
AA6VM250DA/61W-VSB020B-SO12R910917498
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM250DA/61W-VSB020B-SO12, material number R910917498. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, speed related pSt/pHD = 3/100, hydraulic travel direction valve (DA). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S). Special version no. 12.
- Number
- R910917498
- Type code
- AA6VM250DA/61W-VSB020B-SO12
- Group
- A6VM 250
- Edition
- 06/2020

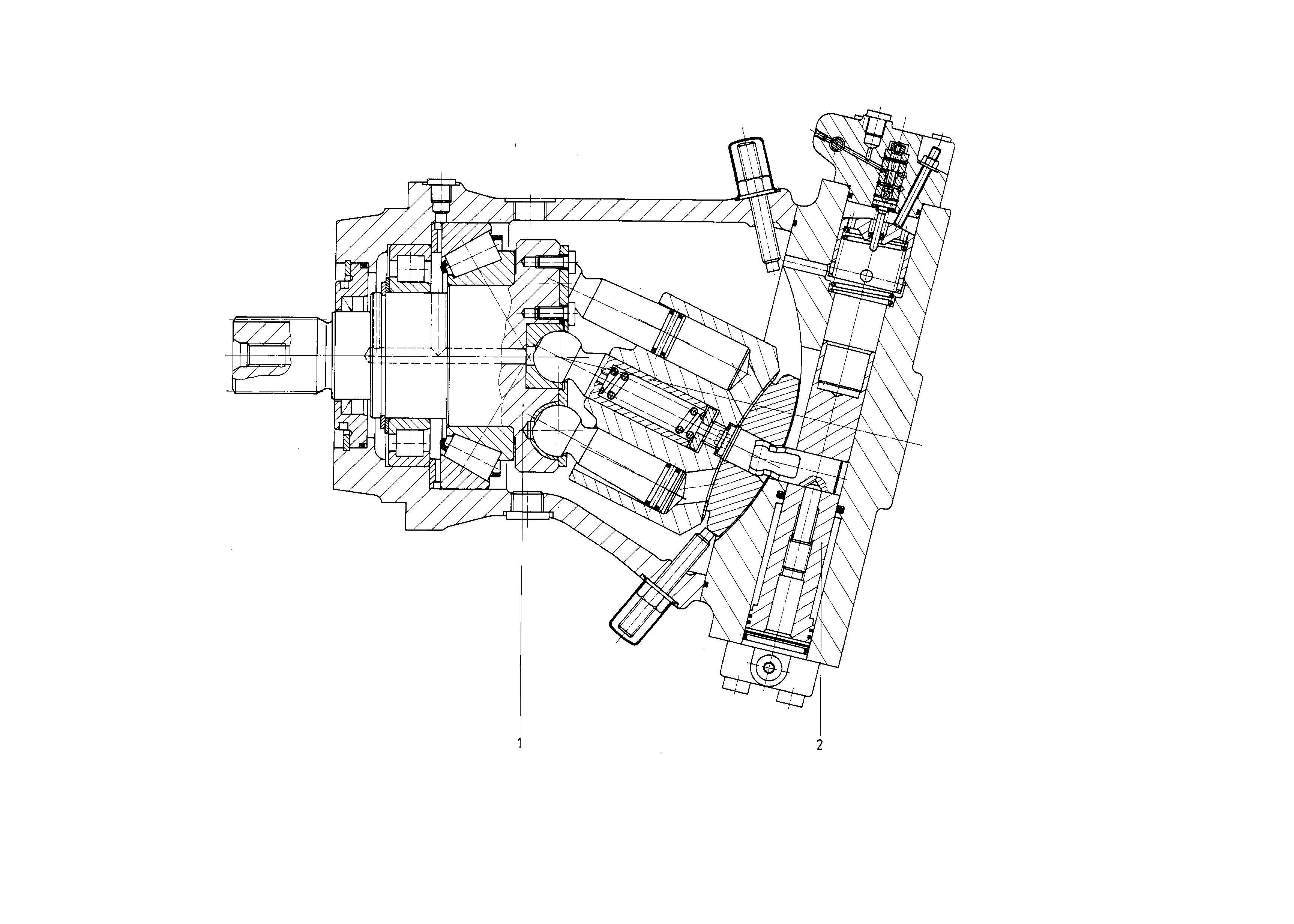

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910917364 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| 2 | R910906480 | AXIAL-PISTON PUMP Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Automatic control, speed related pSt/pHD = 3/100, hydraulic travel direction valve | DA |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
