Unit · AXIAL-PISTON MOTOR
AAA6VM250HA2T/61W-VSB527A-SO24R910917682
Axial piston motor Bosch Rexroth series A6VM, type code AAA6VM250HA2T/61W-VSB527A-SO24, material number R910917682. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with pressure increase Δp = 1450 psi (100 bar) (HA2). Override (only for HA): override, hydraulic, remote controlled, proportional (T). Direction of rotation: viewed on drive shaft bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft ANSI B92.1a (S). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (527). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S). Special version no. 24.
- Number
- R910917682
- Type code
- AAA6VM250HA2T/61W-VSB527A-SO24
- Group
- A6VM 250
- Edition
- 06/2020

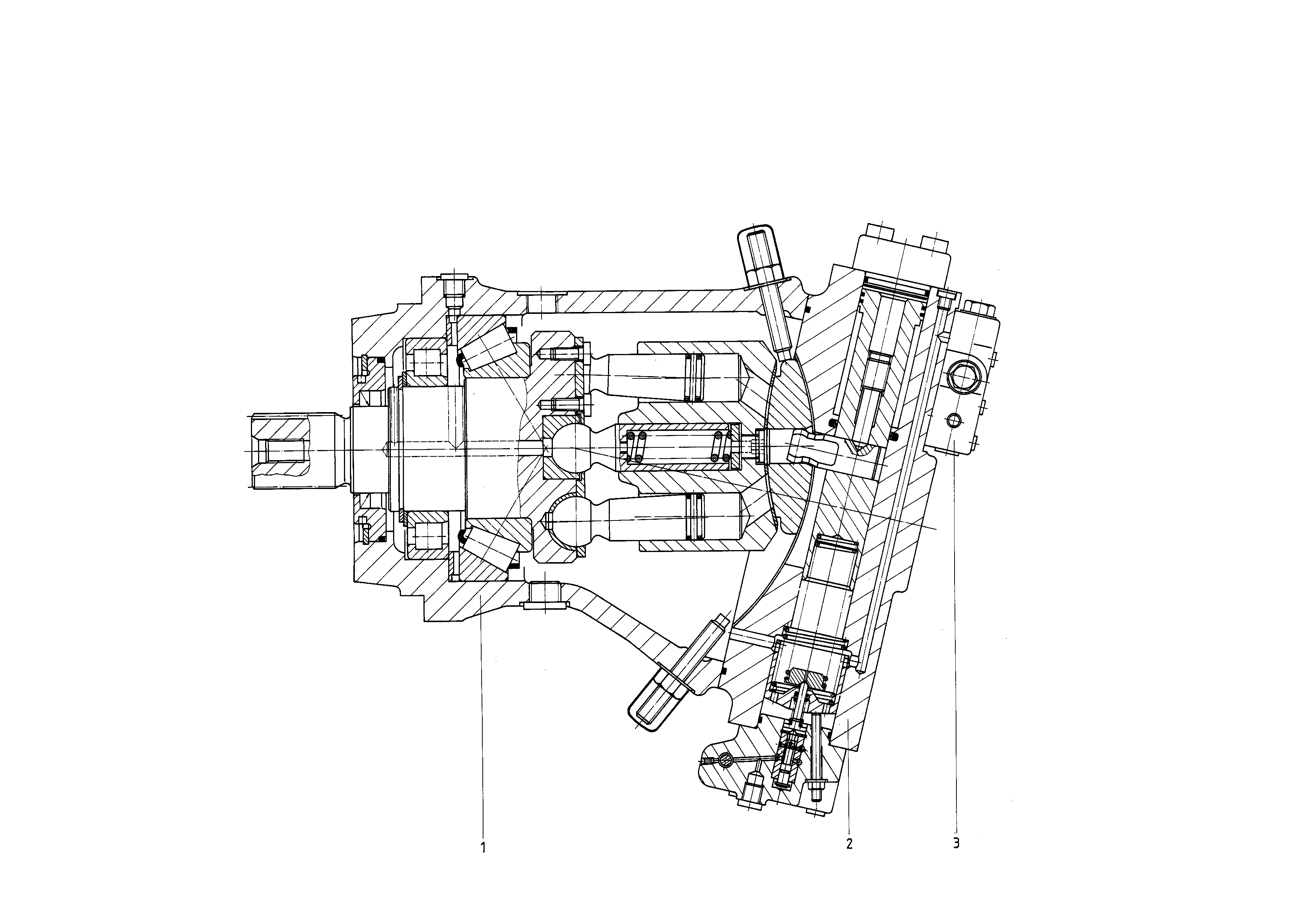

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910917364 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| 2 | R910917683 | CONTROL Assembly parts list →L | 1 | |
| 3 | R910800755 | FLUSH/BOOST PRESSURE VALVE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Automatic control, high-pressure related with pressure increase Δp = 1450 psi (100 bar) | HA2 |
| Override (only for HA) | Override, hydraulic, remote controlled, proportional | T |
| Direction of rotation | Viewed on drive shaft bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft ANSI B92.1a | S |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 527 |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
