Unit · BASE UNIT
G AA10VSO 45 OV /31R-PKC62K01 -SO 13R910918118
Base unit Bosch Rexroth series A10VSO, type code GAA10VSO45OV/31R-PKC62K01-SO13, material number R910918118. Nominal size: NG 45. Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 13.
- Number
- R910918118
- Type code
- G AA10VSO 45 OV /31R-PKC62K01 -SO 13
- Group
- A10VSO 45
- Edition
- 06/2020

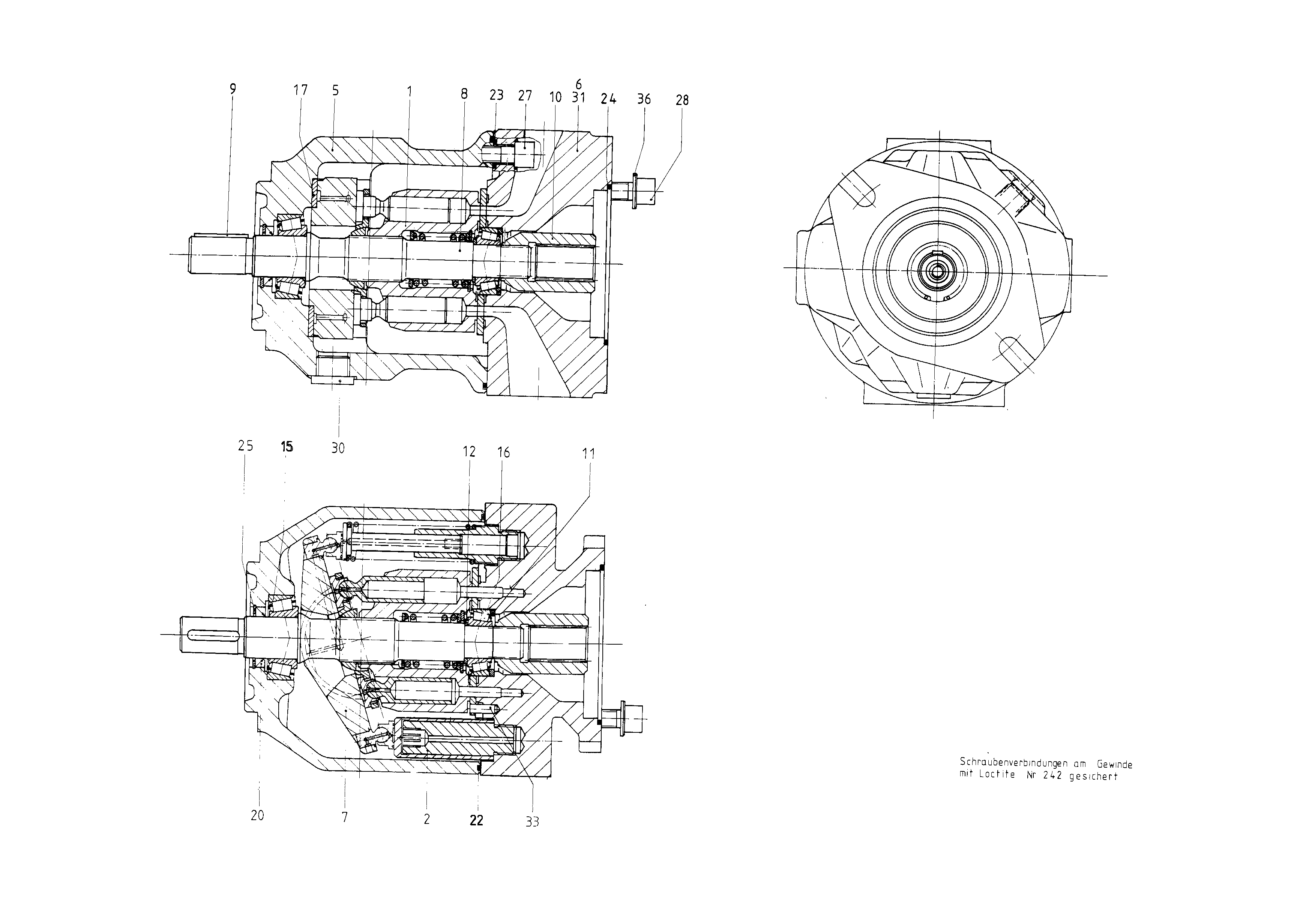

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902559903 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910913557 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902546050 | PUMP HOUSING | 1 | ||
| R910997146 | CONNECTION PLATE | 1 | ||
| R910961024 | SWASH PLATE Assembly parts list →L | 1 | ||
| R902417385 | DRIVE SHAFT | 1 | ||
| R910749265 | PARALLEL KEY | 1 | ||
| R910943529 | SPLINED COUPLING | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910900198 | BEARING SHELL | 2 | ||
| R910793671 | SHAFT SEALING RINGD | 1 | ||
| R910704997 | O-RINGD | 1 | ||
| R913052114 | R-RINGD | 4 | ||
| R910111945 | O-RINGD | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| 34 | R913011601 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
