Unit · CONTROL
V A4VSG 500 EMR910918335
Control Bosch Rexroth series A4VSG, type code VA4VSG500EM, material number R910918335. Nominal size: NG 500. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump / motor, closed circuit (G).
- Number
- R910918335
- Type code
- V A4VSG 500 EM
- Group
- A4VSG 500
- Edition
- 07/2020

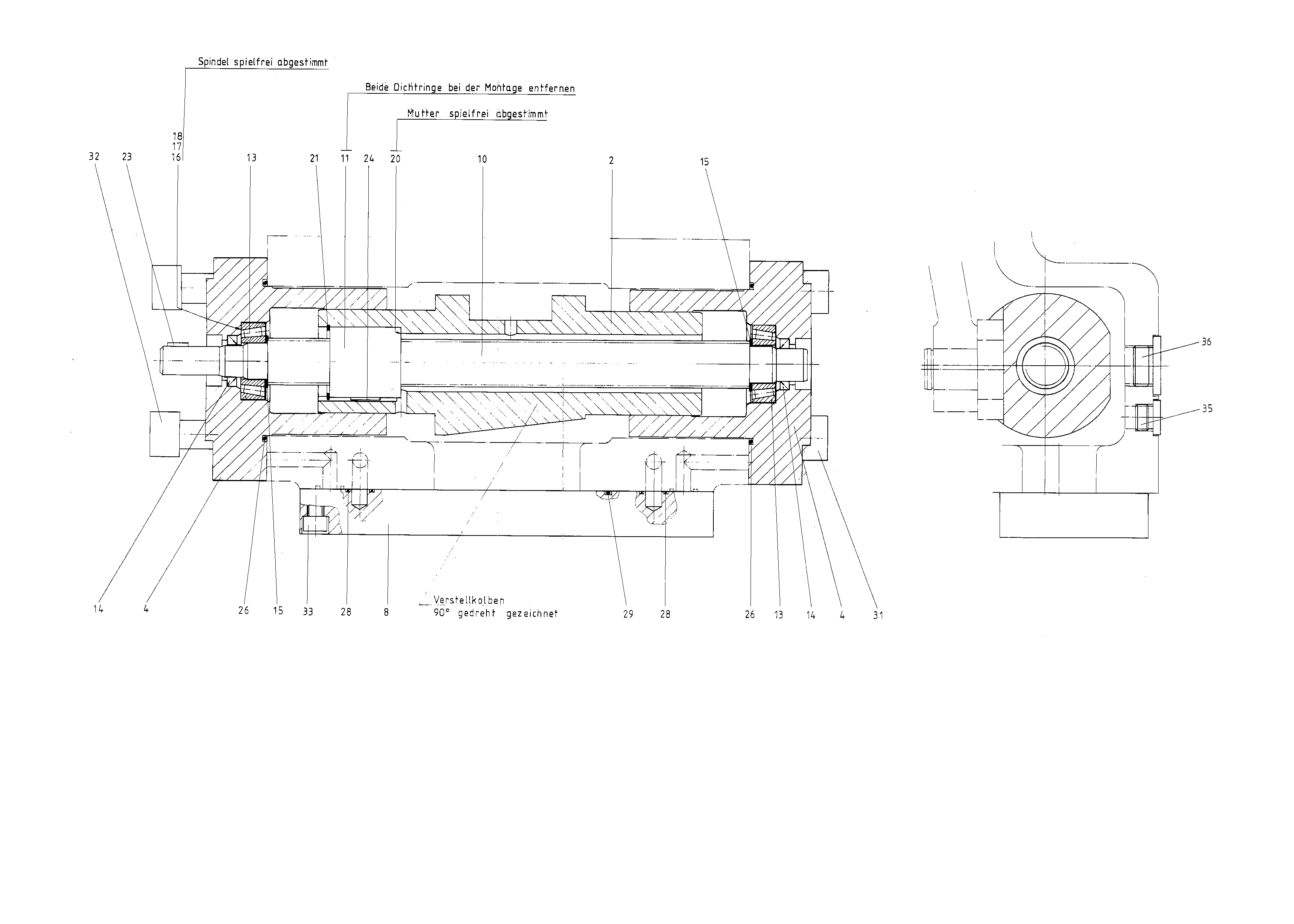

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 2 | R910917770 | ADJUSTING PISTON | 1 | |
| R910931202 | PISTON HOUSING | 2 | ||
| R910988549 | GASKET Assembly parts list →L | 1 | ||
| R910946387 | BALL SCREW ASSEMBLY | 1 | ||
| 13 | R910101397 | TAPERED-ROLLER BEARING | 2 | |
| R910900853 | SHAFT SEALING RINGD | 2 | ||
| R910105449 | SUPPORTING DISC | 2 | ||
| R910585335 | SHIM RING | 2 | ||
| R910635022 | SHIM RING | 1 | ||
| R910635014 | SHIM RING | 1 | ||
| R910126276 | SHIM RING | 1 | ||
| R910150541 | RETAINING RING | 1 | ||
| R910125504 | PARALLEL KEY | 1 | ||
| R910125482 | PARALLEL KEY | 1 | ||
| R910977052 | O-RINGD | 2 | ||
| 31 | R910120782 | SOCKET HEAD CAP SCREW | 4 | |
| R910705799 | SOCKET HEAD CAP SCREW | 4 | ||
| 35 | R909153815 | SCREW PLUGD | 2 | |
| 36 | R909153365 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump / motor, closed circuit | G |
| Size (NG) | 500 | 500 |
