Unit · BASE UNIT
G A4VSG 500 M/10X-PPH10K35R910918883
Base unit Bosch Rexroth series A4VSG, type code GA4VSG500M/10X-PPH10K35, material number R910918883. Nominal size: NG 500. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump / motor, closed circuit (G). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 8-hole (H). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through drives (for mounting options and dimensions: 224, 4-hole 60x2x28x9g (K35).
- Number
- R910918883
- Type code
- G A4VSG 500 M/10X-PPH10K35
- Group
- A4VSG 500
- Edition
- 07/2020

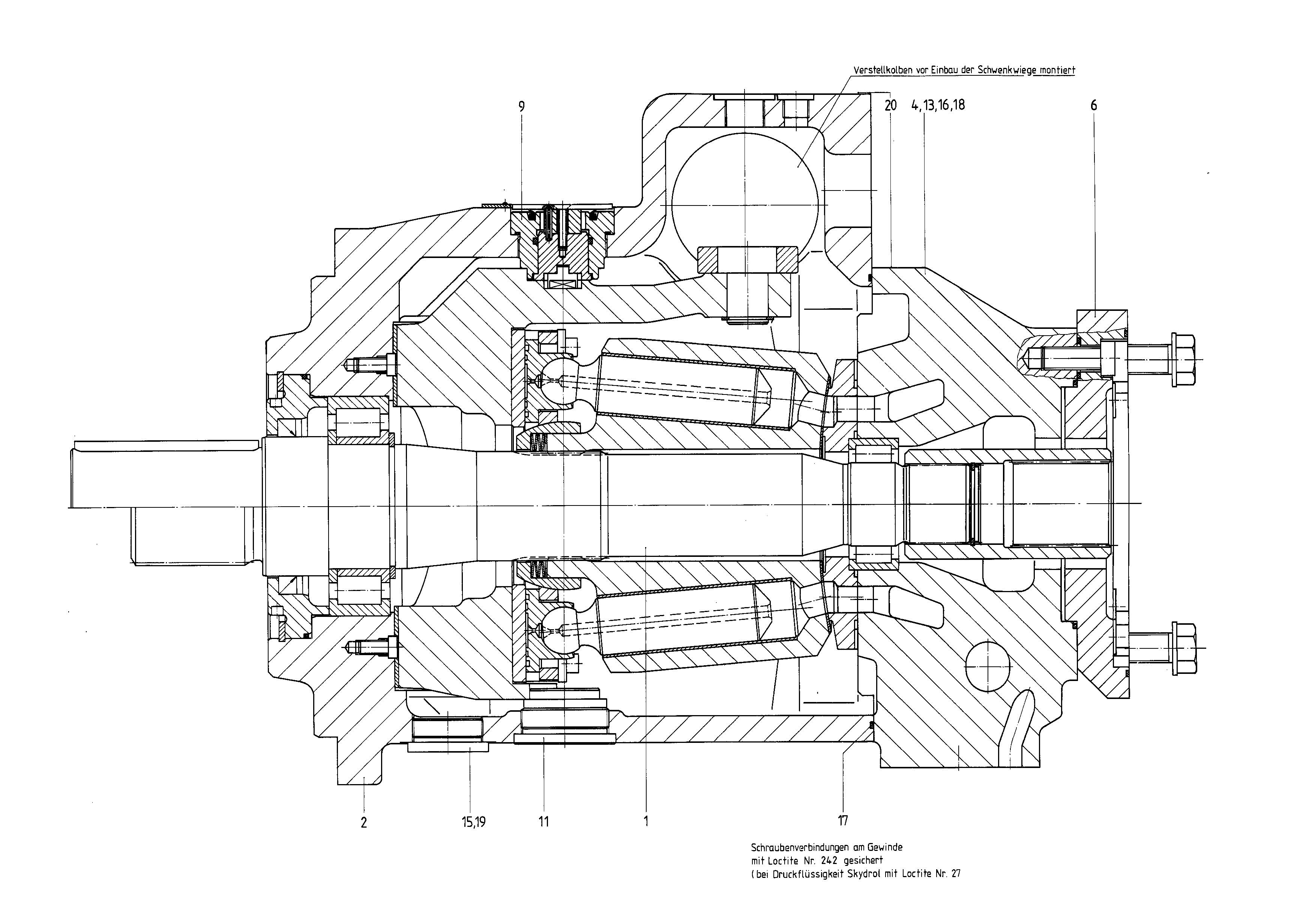

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910917086 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910911860 | PUMP HOUSING | 1 | ||
| R910918530 | CONNECTION PLATE | 1 | ||
| R910911794 | ATTACHMENT KIT Assembly parts list →L | 1 | ||
| R910919860 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R902544277 | STUD BOLT Assembly parts list →L | 1 | ||
| R902572930 | SOCKET HEAD CAP SCREW | 8 | ||
| R902650283 | SCREW PLUG | 3 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R910914695 | O-RINGD | 1 | ||
| R910514985 | O-RINGD | 2 | ||
| R910415375 | SEAL RINGD | 3 | ||
| R910938084 | DOUBLE BREAK-OFF PLUGD | 3 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump / motor, closed circuit | G |
| Size (NG) | 500 | 500 |
| Series | Series 1, index 0 | 10 |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 metric 8-hole | H |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through drives (for mounting options and dimensions | 224, 4-hole 60x2x28x9g | K35 |
