Unit · AXIAL-PISTON PUMP
A A4VSO 40 LR2GH /10R-PZB13N00R910919361
Axial piston pump Bosch Rexroth series A4VSO, type code AA4VSO40LR2GH/10R-PZB13N00, material number R910919361. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum (A4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: port B and S: SAE flange lateral, offset 90°, metric fastening thread (can only be ordered without through-drive (N00) or with K.. through-drives) (13). Through-drive: without through drive (N00).
- Number
- R910919361
- Type code
- A A4VSO 40 LR2GH /10R-PZB13N00
- Group
- A4VSO 40
- Edition
- 01/2021

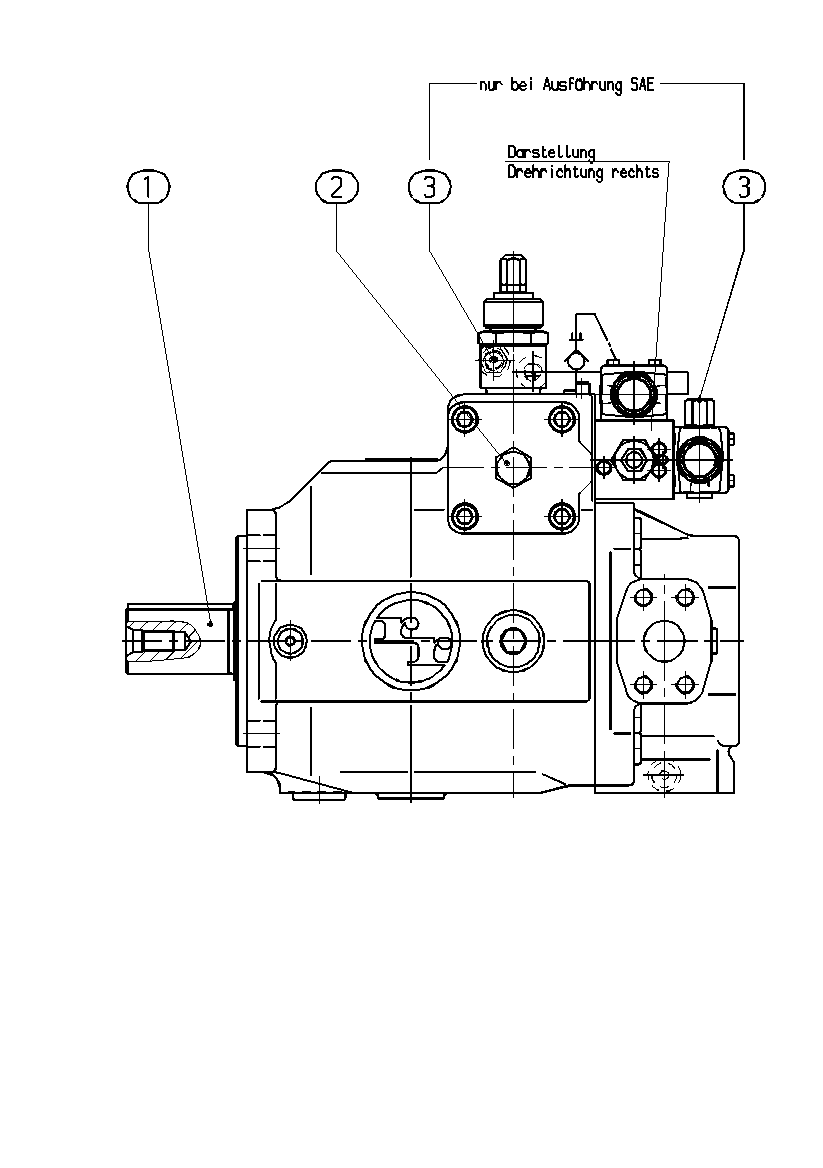

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902418730 | BASE UNIT Assembly parts list →L | 1 | |
| R910911215 | REGULATOR Assembly parts list →L | 1 | ||
| 61 | R902805707 | SHIPPING PROTECTION | 1 | |
| 62 | R902602011 | SEAL SCREW | 1 | |
| 63 | R902421948 | SHIPPING PROTECTION | 1 | |
| 81 | R902602008 | SEAL SCREW | 2 | |
| 82 | R910723126 | PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum | A4VS |
| Operating mode | Pump, open circuit | O |
| Series | Series 1, index 0 (series 1, index 1, only for control HD and EP) | 10 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | Port B and S: SAE flange lateral, offset 90°, metric fastening thread (can only be ordered without through-drive (N00) or with K.. through-drives) | 13 |
| Through-drive | Without through drive | N00 |
