Unit · AXIAL-PISTON PUMP
A A4VSO 250 EM1141/10R-PPB13N00R910919363
Axial piston pump Bosch Rexroth series A4VSO, type code AA4VSO250EM1141/10R-PPB13N00, material number R910919363. Nominal size: NG 1141. Axial piston unit: swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) (AA4VS). Directions of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P). Through-drive: without through drive (N00).
- Number
- R910919363
- Type code
- A A4VSO 250 EM1141/10R-PPB13N00
- Group
- A4VSO 250
- Edition
- 01/2021

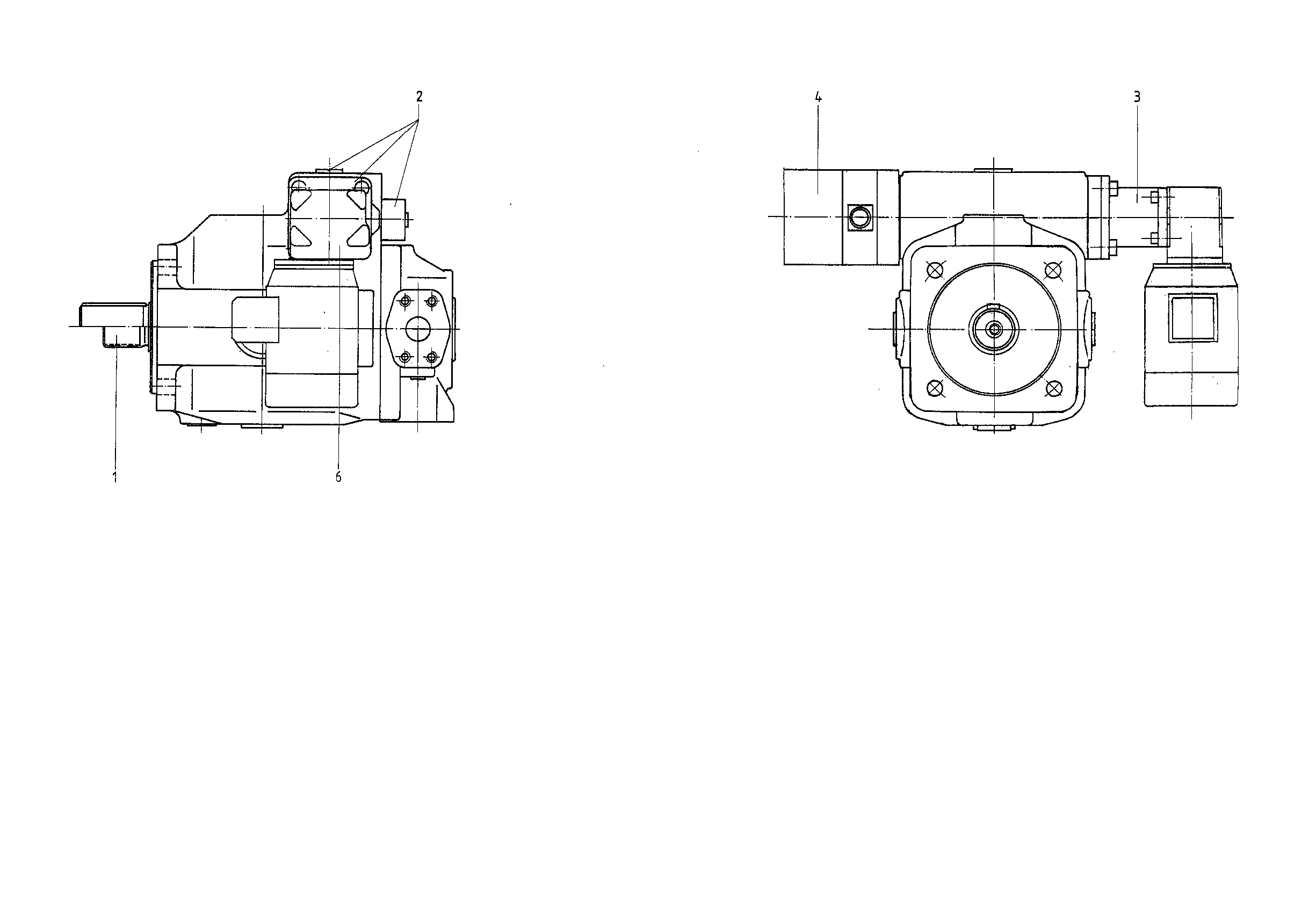

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910928607 | BASE UNIT Assembly parts list →L | 1 | ||
| 2 | R910917549 | CONTROL Assembly parts list →L | 1 | |
| 3 | R910917550 | COUPLING | 1 | |
| R910917548 | LIMIT SWITCH | 1 | ||
| 6 | R910919258 | GEAR MOTOR | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) | AA4VS |
| Size (NG) | 1141 | 1141 |
| Series | Series 1, index 0 (series 1, index 1, only for control HD and EP) | 10 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Through-drive | Without through drive | N00 |
