Unit · CONTROL
V A4VSO 40 EMR910919663

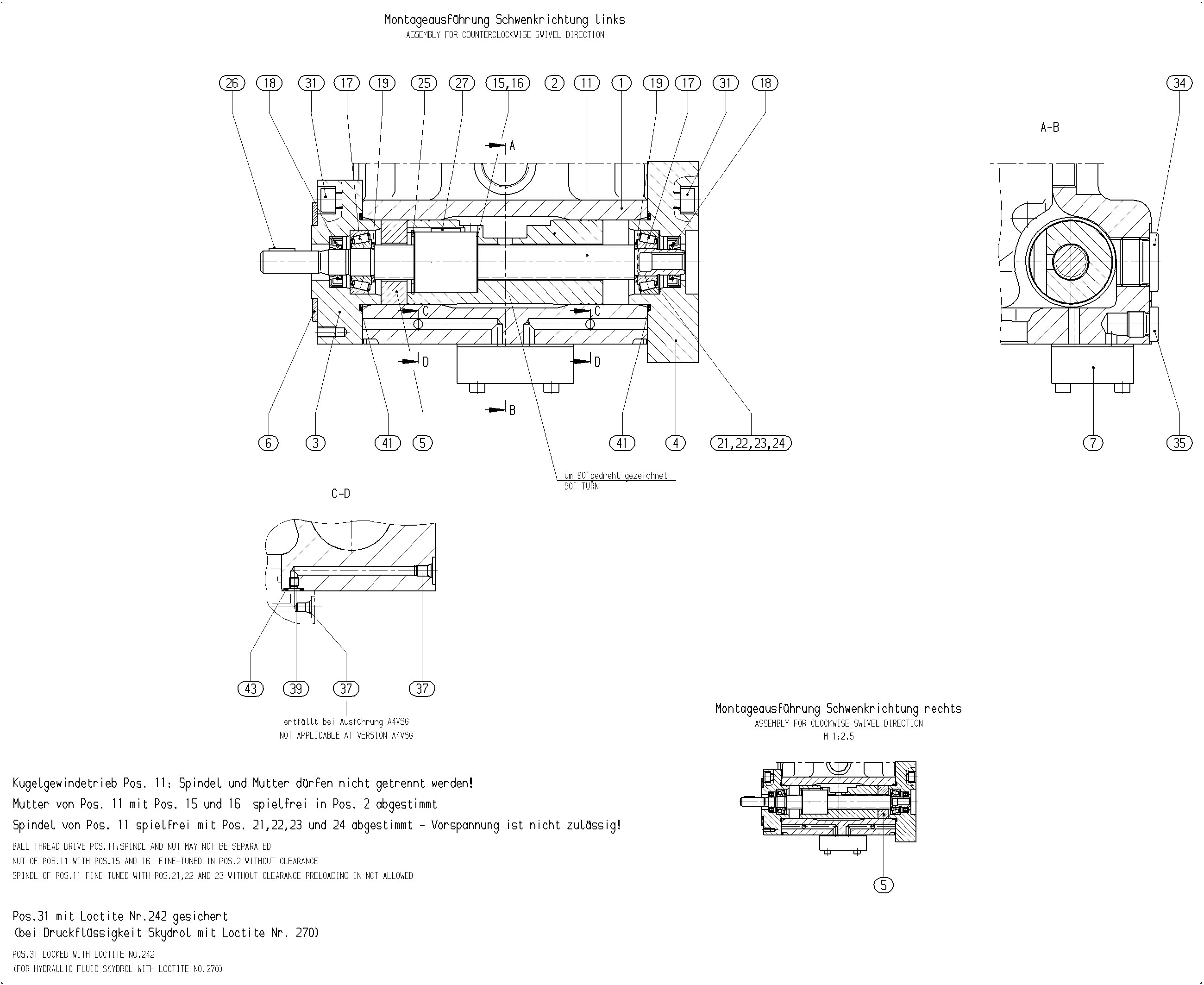

Control Bosch Rexroth series A4VSO, type code VA4VSO40EM, material number R910919663. Nominal size: NG 40. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) Metric (A4VS). Operating mode: pump, open circuit (O).
- Number
- R910919663
- Type code
- V A4VSO 40 EM
- Group
- A4VSO 40
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910906273 | PUMP HOUSING | 1 | ||
| R902569792 | ADJUSTING PISTON | 1 | ||
| R910919679 | BEARING FLANGE | 1 | ||
| R910919680 | BEARING FLANGE | 1 | ||
| R910919685 | SIDE MARKER RING | 1 | ||
| R910919681 | CENTERING DISK | 1 | ||
| R910914233 | COVER PLATE | 1 | ||
| R910946384 | BALL SCREW ASSEMBLY | 1 | ||
| R910625566 | SHIM RING | 1 | ||
| R910625558 | SHIM RING | 1 | ||
| R909086994 | TAPERED-ROLLER BEARING | 2 | ||
| R910967339 | ROTARY SHAFT LIP SEALD | 2 | ||
| R910105414 | SUPPORTING DISC | 2 | ||
| R910148881 | SHIM RING | 1 | ||
| R910257079 | SHIM RING | 1 | ||
| R910127213 | SHIM RING | 1 | ||
| R910127221 | SHIM RING | 1 | ||
| R910303372 | RETAINING RING | 1 | ||
| R910103314 | PARALLEL KEY | 1 | ||
| R910103357 | PARALLEL KEY | 1 | ||
| R910109487 | SOCKET HEAD CAP SCREW | 8 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910800379 | O-RINGD | 2 | ||
| R910942134 | R-RING | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) Metric | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 40 | 40 |
| Electric motor control 92072 | EM |
