Unit · CONTROL
V A4VS 71 EMR910919676

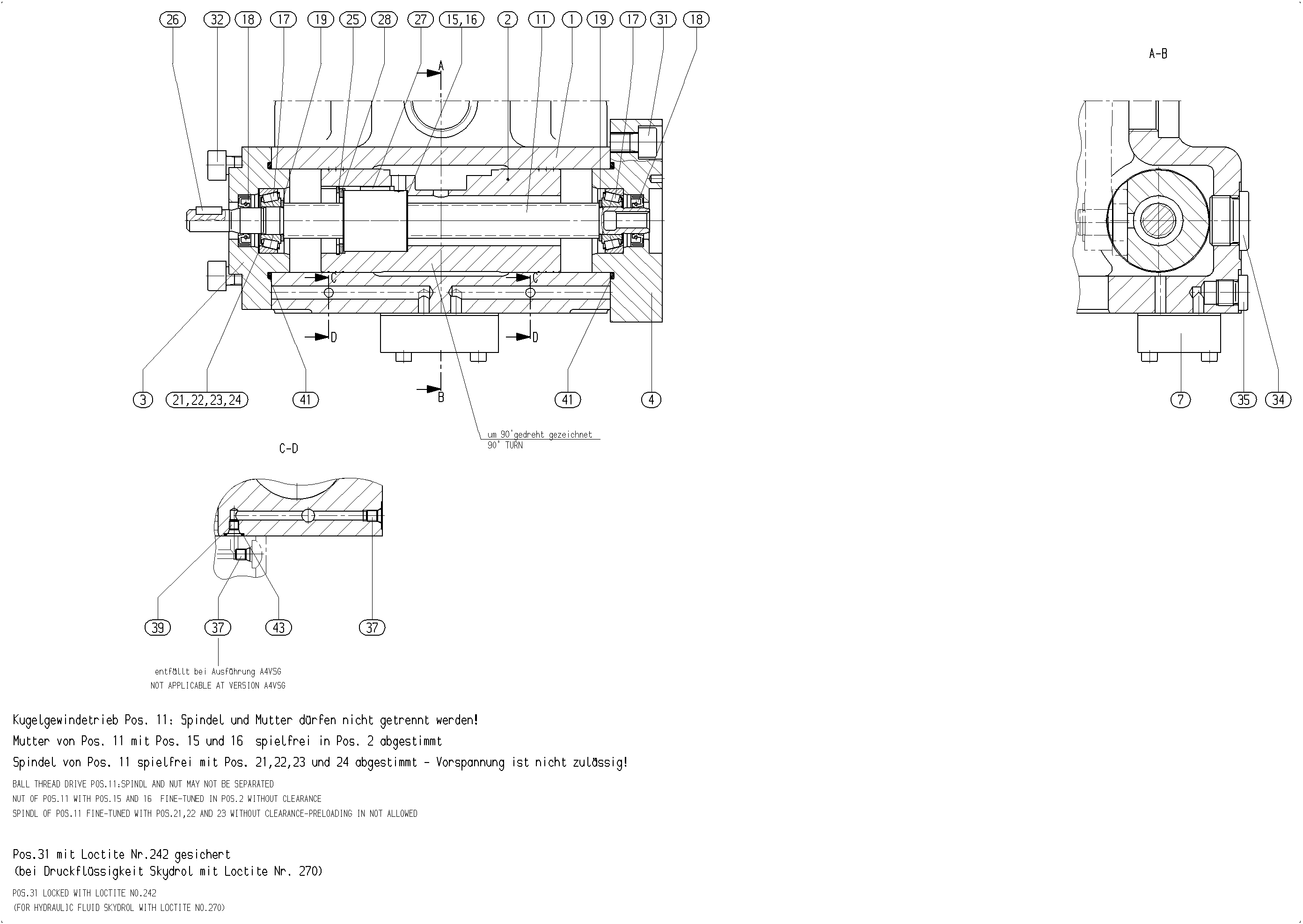

Control Bosch Rexroth series A4VS, type code VA4VS71EM, material number R910919676.
- Number
- R910919676
- Type code
- V A4VS 71 EM
- Group
- A4VS 71
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910902660 | PUMP HOUSING | 1 | ||
| R902569328 | ADJUSTING PISTON | 1 | ||
| R910919107 | BEARING FLANGE | 1 | ||
| R910919108 | BEARING FLANGE | 1 | ||
| R910914233 | COVER PLATE | 1 | ||
| R910946385 | BALL SCREW ASSEMBLY | 1 | ||
| R910625566 | SHIM RING | 1 | ||
| R910625558 | SHIM RING | 1 | ||
| R909086994 | TAPERED-ROLLER BEARING | 2 | ||
| R910967339 | ROTARY SHAFT LIP SEALD | 2 | ||
| R910105414 | SUPPORTING DISC | 2 | ||
| R910148881 | SHIM RING | 1 | ||
| R910257079 | SHIM RING | 1 | ||
| R910127213 | SHIM RING | 1 | ||
| R910127221 | SHIM RING | 1 | ||
| R910105945 | RETAINING RING | 1 | ||
| R910103314 | PARALLEL KEY | 1 | ||
| R910103357 | PARALLEL KEY | 1 | ||
| R910105449 | SUPPORTING DISC | 1 | ||
| R910109614 | SOCKET HEAD CAP SCREW | 4 | ||
| R910109622 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910530492 | O-RINGD | 2 | ||
| R910942134 | R-RINGD | 2 |
