Unit · INDICATING DEVICE

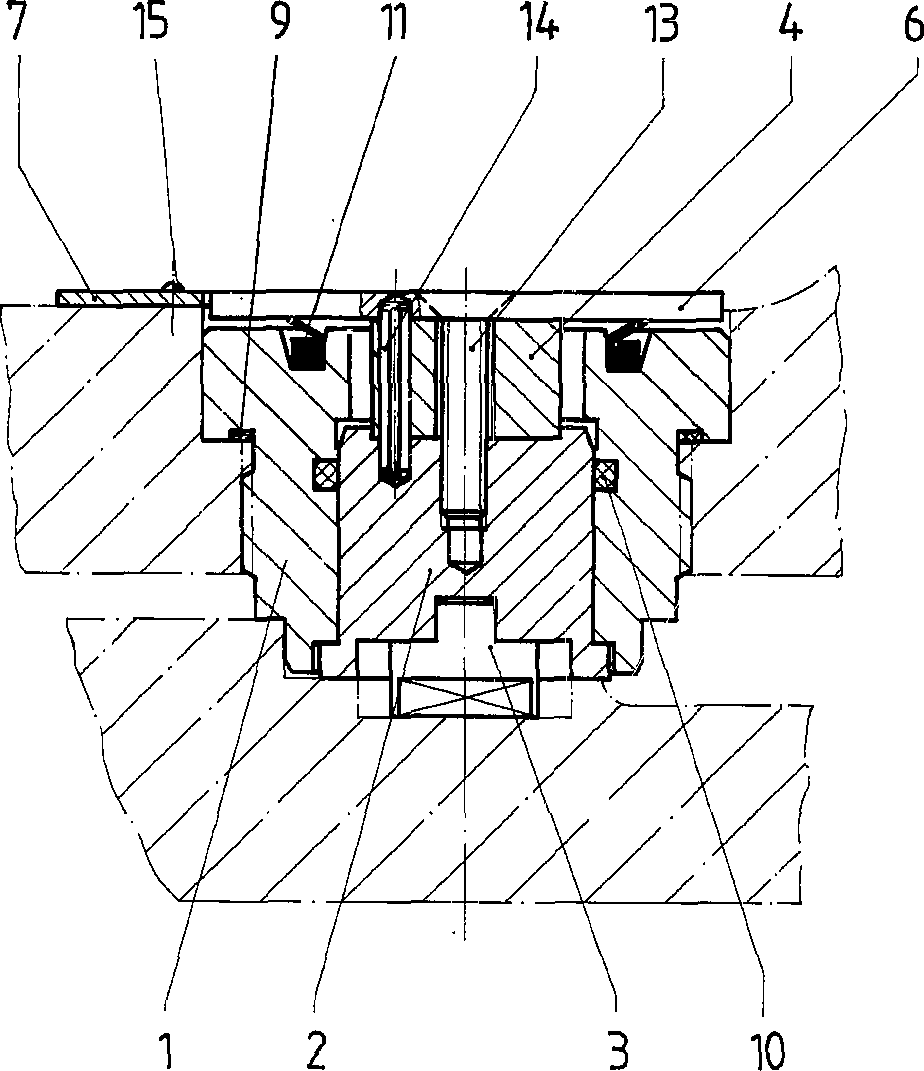

INDICATING DEVICE A4VS 500/750/22 -VR910919860
Axial piston pump Bosch Rexroth series A4VS, type code INDICATINGDEVICEA4VS500/750/22-V, material number R910919860.
- Number
- R910919860
- Type code
- INDICATING DEVICE A4VS 500/750/22 -V
- Group
- A4VS 500
- Edition
- 02/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910911342 | STUD BOLT | 1 | ||
| R910911343 | DRIVER PIVOT | 1 | ||
| R910911344 | COUPLING ELEMENT | 1 | ||
| R910911345 | DISTANCE PIPE | 1 | ||
| R910911346 | POINTER | 1 | ||
| R910943648 | DIAL | 1 | ||
| R910919864 | O-RINGD | 1 | ||
| R910945823 | QUAD RINGD | 1 | ||
| R910919866 | KANTSEAL | 1 | ||
| R910928615 | COUNTERSUNK-HEAD SCREW | 1 | ||
| R910106763 | SLOTTED SPRING PIN | 1 |
