Unit · AXIAL-PISTON PUMP
AA10VO28+FHD/31R-PSC61N00R910920073
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO28+FHD/31R-PSC61N00, material number R910920073. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O).
- Number
- R910920073
- Type code
- AA10VO28+FHD/31R-PSC61N00
- Group
- A10VO 28
- Edition
- 06/2020

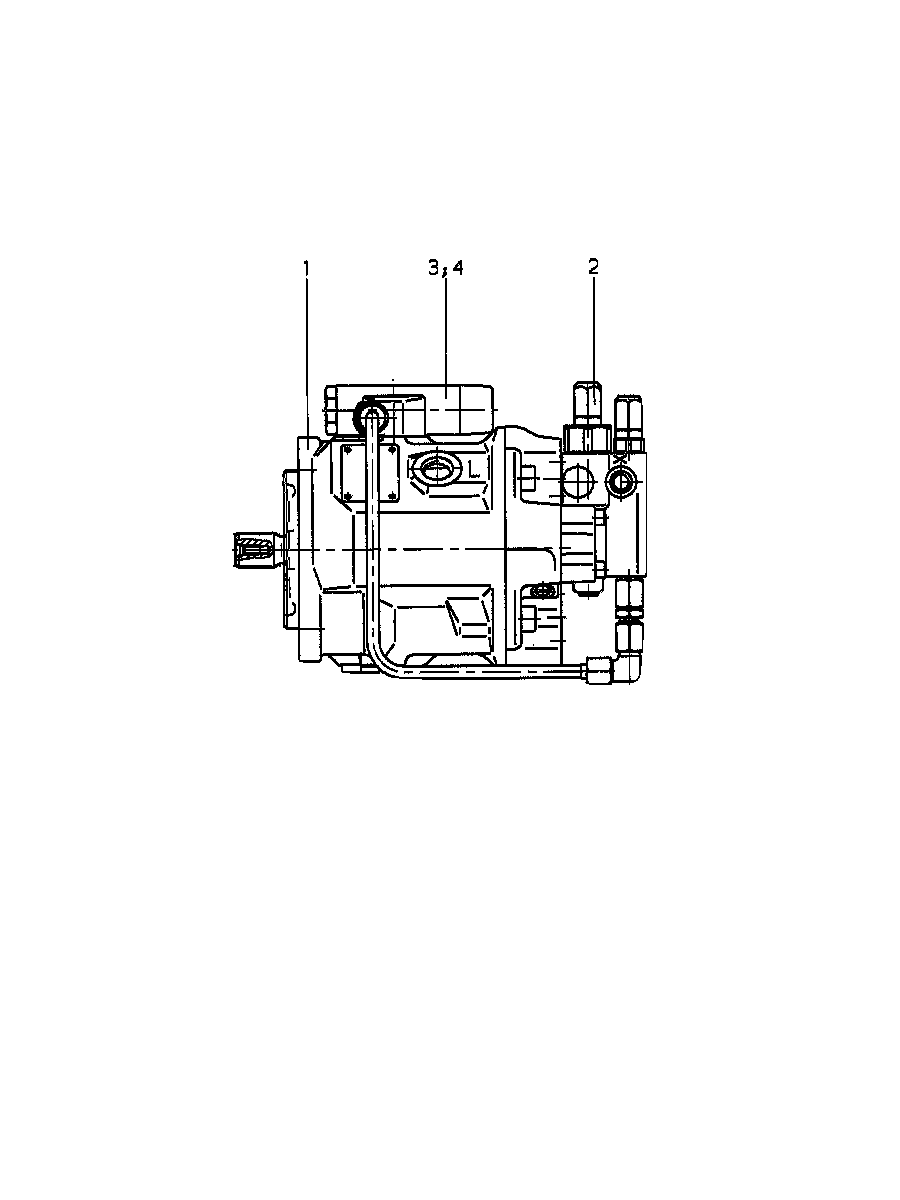

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910921290 | BASE UNIT Assembly parts list →L | 1 | |
| 2 | R902533818 | CONTROL VALVE Assembly parts list →L | 1 | |
| 3 | R902533803 | CONTROL VALVE Assembly parts list →L | 1 | |
| R910921696 | ADAPTER Assembly parts list →L | 1 | ||
| 10 | R910923710 | PIPING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
