Unit · BASE UNIT
GE A10VSO 28 OV /31R-PPA12N00 -SO193R910920239
Base unit Bosch Rexroth series A10VSO, type code GEA10VSO28OV/31R-PPA12N00-SO193, material number R910920239. Nominal size: NG 28. Version: HFA, HFB, HFC hydraulic fluid (E). Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 193.
- Number
- R910920239
- Type code
- GE A10VSO 28 OV /31R-PPA12N00 -SO193
- Group
- A10VSO 28
- Edition
- 06/2020

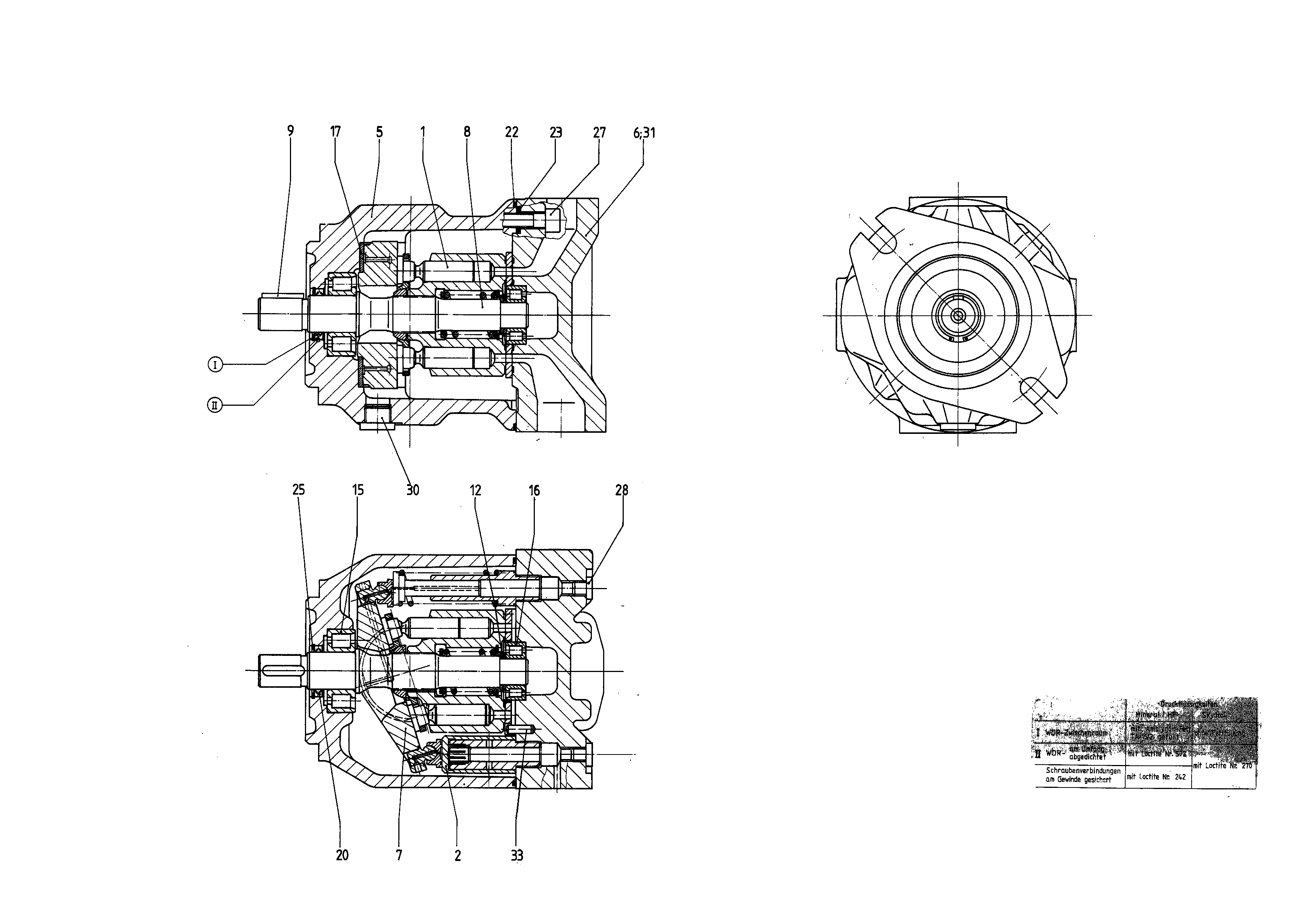

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902439597 | ROTARY GROUP Assembly parts list →L | 1 | |
| R910915210 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902550216 | PUMP HOUSING | 1 | ||
| 6 | R910948012 | CONNECTION PLATE | 1 | |
| R910960813 | SWASH PLATE | 1 | ||
| 8 | R902415569 | DRIVE SHAFT | 1 | |
| 9 | R910125539 | PARALLEL KEY | 1 | |
| 12 | R902400789 | ADJUSTMENT SHIM | 2 | |
| 15 | R910739502 | CYL. ROLLER BEARING | 1 | |
| R910739529 | CYL. ROLLER BEARING | 1 | ||
| R910902778 | BEARING SHELL | 2 | ||
| R910916103 | SHAFT SEALING RINGD | 1 | ||
| R910730041 | O-RINGD | 1 | ||
| 23 | R913052108 | R-RINGD | 4 | |
| R902403815 | RETAINING RING | 1 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| 28 | R909153364 | SCREW PLUGD | 2 | |
| 30 | R909153815 | SCREW PLUGD | 1 | |
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 33 | R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | HFA, HFB, HFC hydraulic fluid | E |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
