Unit · BASE UNIT
G A10VSO100 OV /31R-PPA12K55 -S0136R910920805
Base unit Bosch Rexroth series A10VSO, type code GA10VSO100OV/31R-PPA12K55-S0136, material number R910920805. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Special version no. 136.
- Number
- R910920805
- Type code
- G A10VSO100 OV /31R-PPA12K55 -S0136
- Group
- A10VSO 100
- Edition
- 06/2020

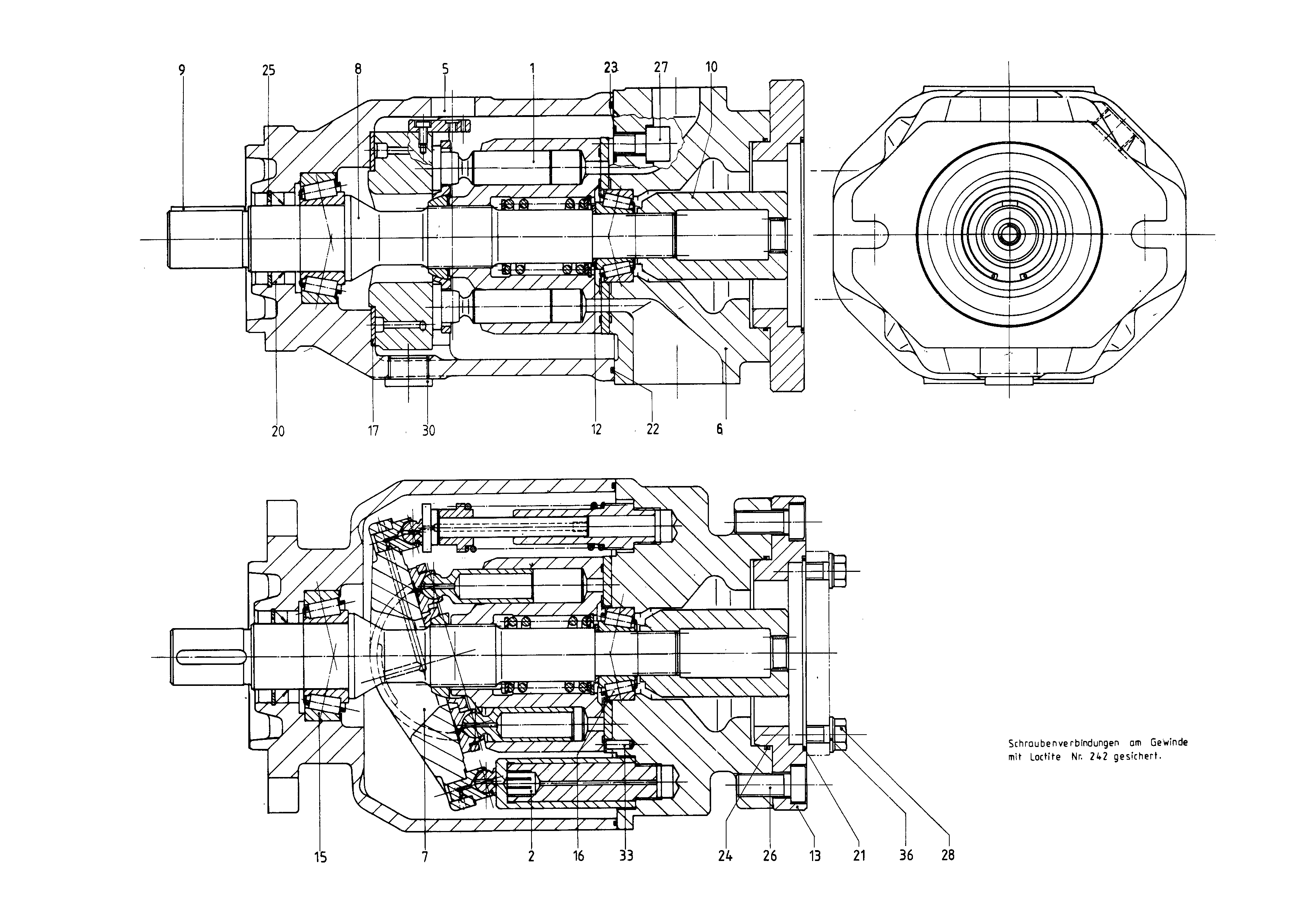

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910906871 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910917225 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910906815 | PUMP HOUSING | 1 | ||
| R910988619 | CONNECTION PLATE | 1 | ||
| R910961044 | SWASH PLATE | 1 | ||
| R910987697 | DRIVE SHAFT | 1 | ||
| R910923559 | PARALLEL KEY | 1 | ||
| R910943748 | SPLINED COUPLING | 1 | ||
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R910920114 | INTERMEDIATE FLANGE | 1 | ||
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910906881 | BEARING SHELL | 2 | ||
| R910113174 | SHAFT SEALING RINGD | 1 | ||
| R910102989 | O-RINGD | 1 | ||
| R910906911 | O-RINGD | 1 | ||
| R913068283 | R-RINGD | 4 | ||
| R910112291 | O-RINGD | 1 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910522767 | SOCKET HEAD CAP SCREW | 2 | ||
| R910389714 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
