Unit · CONTROL
V A6V M 355 HD2 /61-V020 -SO 27R910921100
Control Bosch Rexroth series A6VM, type code VA6VM355HD2/61-V020-SO27, material number R910921100. Nominal size: NG 355. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 25 bar (HD2). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020).
- Number
- R910921100
- Type code
- V A6V M 355 HD2 /61-V020 -SO 27
- Group
- A6VM 355
- Edition
- 06/2020

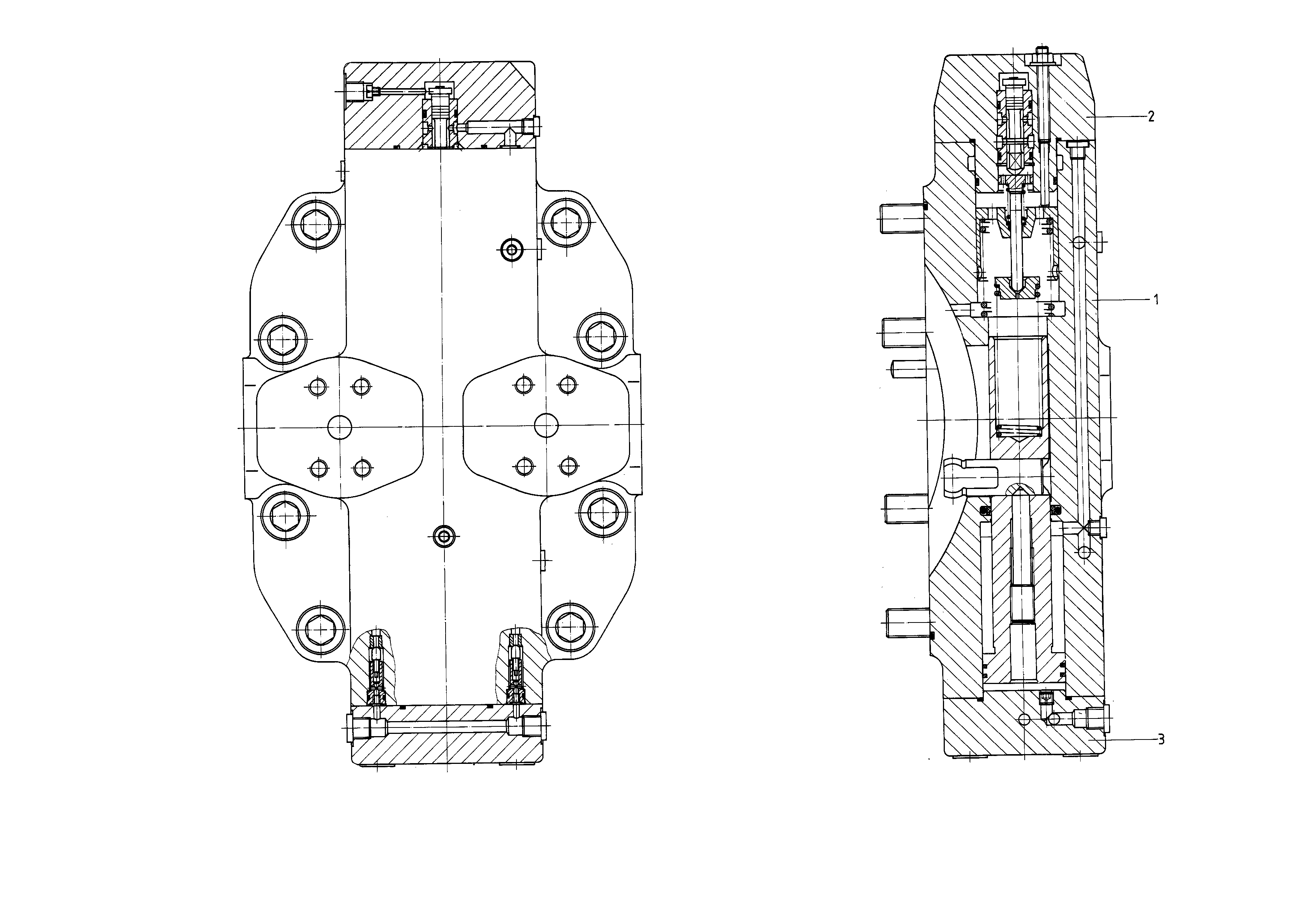

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910921099 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| 2 | R910919952 | CONTROL PART Assembly parts list →L | 1 | |
| 3 | R910919953 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 355 | 355 |
| Control device | Proportional control, hydraulic ΔpSt = 25 bar | HD2 |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
