Unit · BASE UNIT
G A10VSO 45 OV /31R-PPA12K68 LR -SO136R910921732
Base unit Bosch Rexroth series A10VSO, type code GA10VSO45OV/31R-PPA12K68LR-SO136, material number R910921732. Nominal size: NG 45. Version: standard version (without symbol), swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft clockwise (R). Drive shafts: parallel keyed shaft DIN 6885 limited suitability for through drive (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports, laterally opposite fastening thread, metric (12). Through drives: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 136.
- Number
- R910921732
- Type code
- G A10VSO 45 OV /31R-PPA12K68 LR -SO136
- Group
- A10VSO 45
- Edition
- 06/2020

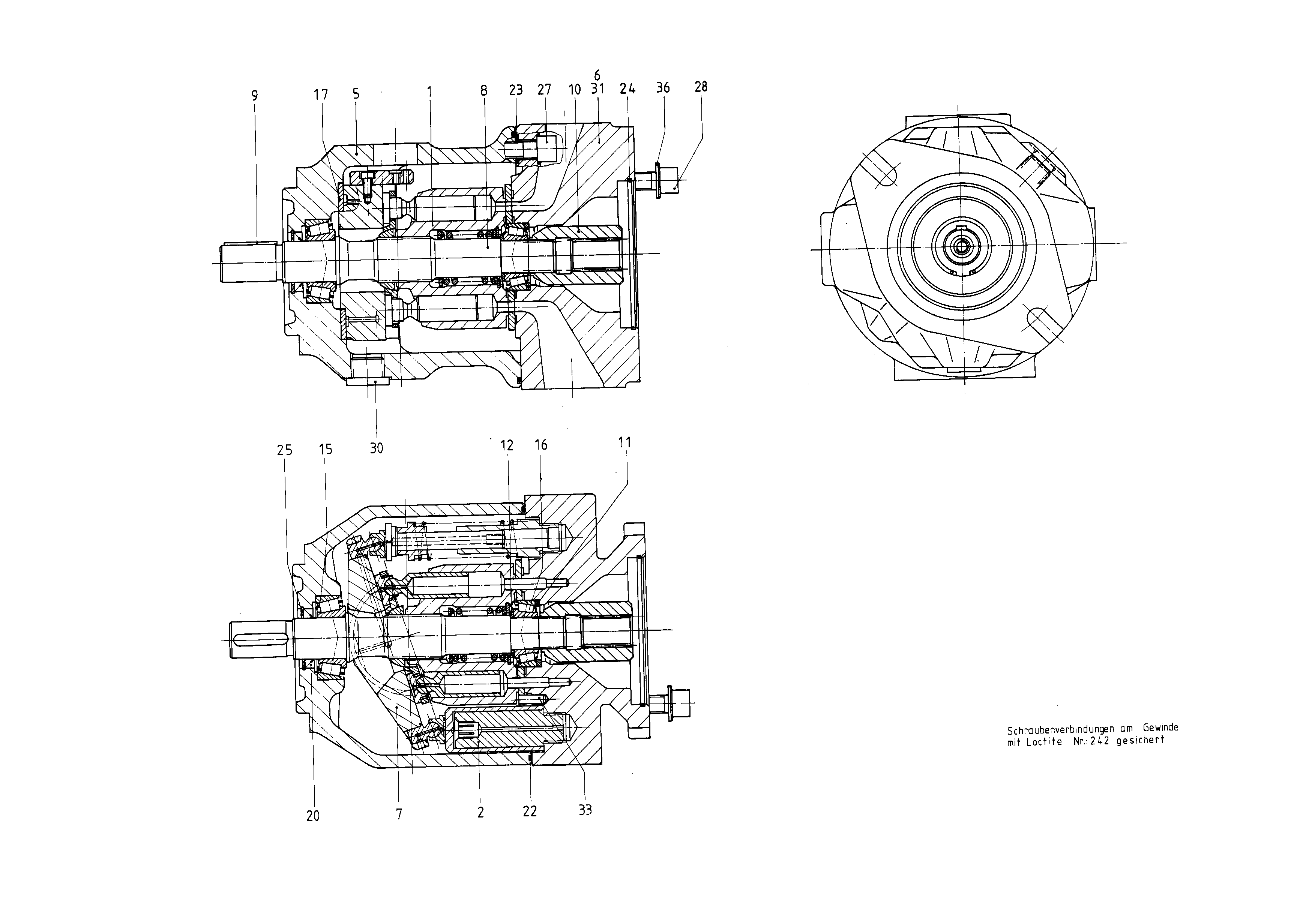

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902559903 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910917171 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902546049 | PUMP HOUSING | 1 | ||
| R910993447 | CONNECTION PLATE | 1 | ||
| R910961029 | SWASH PLATE Assembly parts list →L | 1 | ||
| R902417379 | DRIVE SHAFT | 1 | ||
| R910103438 | PARALLEL KEY | 1 | ||
| R902436084 | SPLINED COUPLING | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910900198 | BEARING SHELL | 2 | ||
| R910793671 | SHAFT SEALING RINGD | 1 | ||
| R910704997 | O-RINGD | 1 | ||
| R913052114 | R-RINGD | 4 | ||
| R910384259 | O-RINGD | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| 34 | R913011601 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | Standard version (without symbol), swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 45 | 45 |
| Series | Series 3, index 1 | 31 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Drive shafts | Parallel keyed shaft DIN 6885 limited suitability for through drive | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports, laterally opposite fastening thread, metric | 12 |
| Through drives | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
