Unit · AXIAL-PISTON PUMP

AA10VO45DFR/31R-PSC62K01-SO201R910922025

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DFR/31R-PSC62K01-SO201, material number R910922025. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T open Hydraulic (DFR). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 201.

Number: R910922025
Type code: AA10VO45DFR/31R-PSC62K01-SO201
Group: A10VO 45
Edition: 06/2020

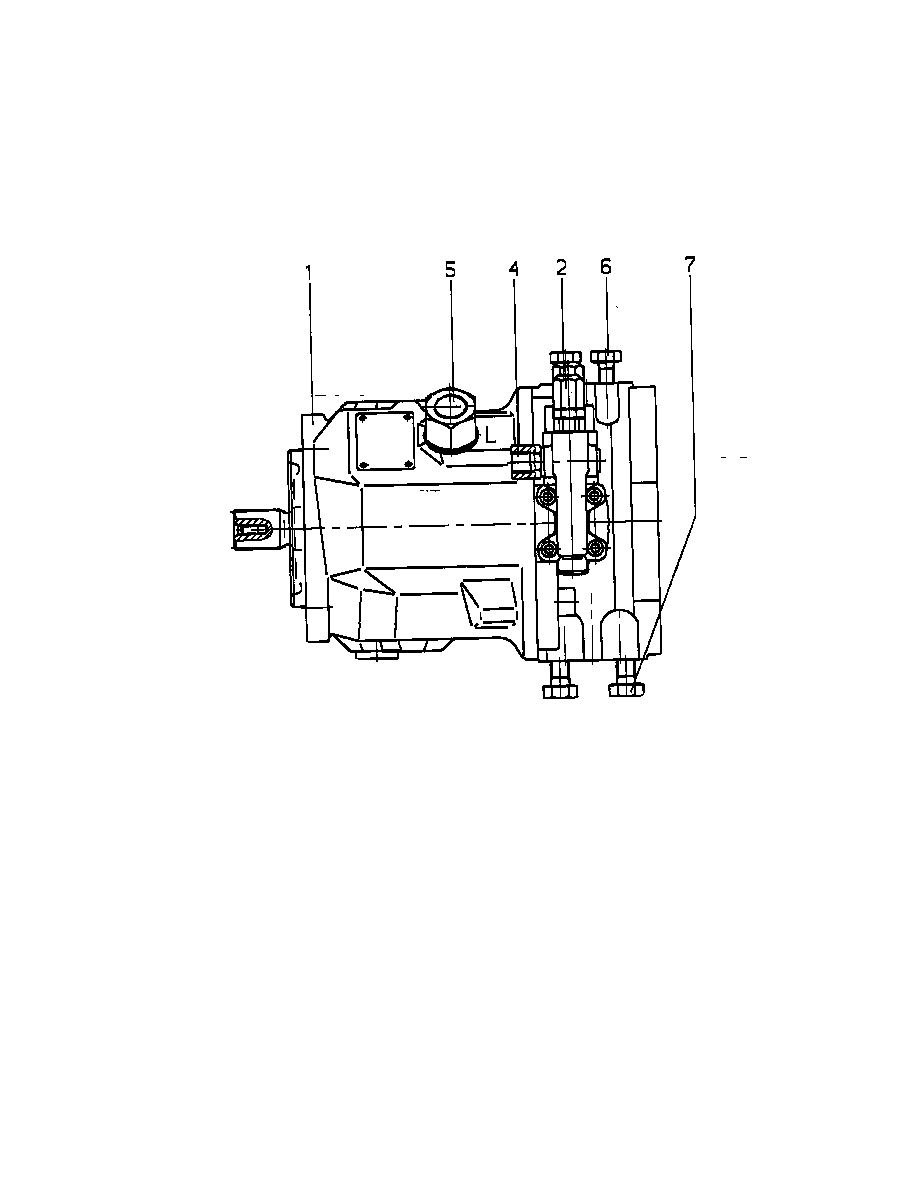

AA10VO45DFR/31R-PSC62K01-SO201 — Drawing

Pos.	Number	Name	Qty
1	R910906400	BASE UNIT Assembly parts list →L	1
2	R902453430	CONTROL VALVE Assembly parts list →L	1
4	R910921653	ADAPTER Assembly parts list →L	1
	R910792772	ADAPTER Assembly parts list →L	4
6	R910748889	HEXAGON SCREW	4
7	R910748919	HEXAGON SCREW	4

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	45	45
Control device	With flow controller X-T open Hydraulic	DFR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive	62
Through drive	82-2 (A) 5/8 in 9T 16/32DP	K01

Parameters from the type code

Other versions 9
