Unit · AXIAL-PISTON MOTOR
AA6VM355HA2/61W-PZH010AR910922186
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM355HA2/61W-PZH010A, material number R910922186. Nominal size: NG 355. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with pressure increase Δp = 100 bar (HA2). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 8-hole (H). Working port: SAE working ports Without valve 0 A and B at rear 01 (010). Beginning of control: at Vg min (standard for HA) (A).
- Number
- R910922186
- Type code
- AA6VM355HA2/61W-PZH010A
- Group
- A6VM 355
- Edition
- 06/2020

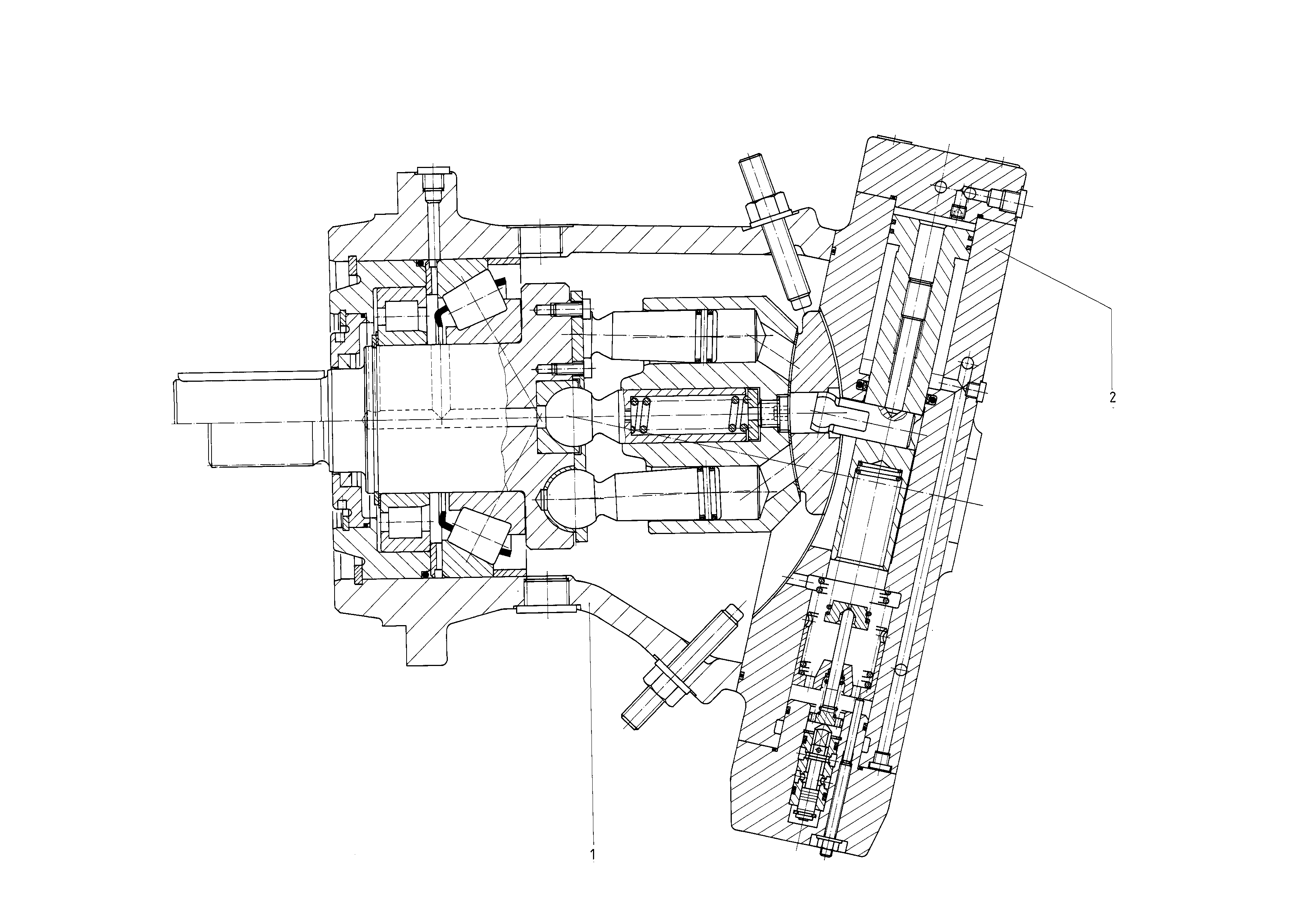

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910913030 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R910922182 | CONTROL Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 355 | 355 |
| Control device | Automatic control, high-pressure related with pressure increase Δp = 100 bar | HA2 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 8-hole | H |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
| Beginning of control | At Vg min (standard for HA) | A |
