Unit · CONTROL
V AA6V M 250 HD2 /61-P657 -SO 8R910922730
Control Bosch Rexroth series A6VM, type code VAA6VM250HD2/61-P657-SO8, material number R910922730. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 365 psi (25 bar) (HD2). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Working port: SAE working ports A and B at side, opposite + at rear Flushing and boost-pressure valve, mounted 7 (657). Standard/special version: special version (-S). Special version no. 8.
- Number
- R910922730
- Type code
- V AA6V M 250 HD2 /61-P657 -SO 8
- Group
- A6VM 250
- Edition
- 06/2020

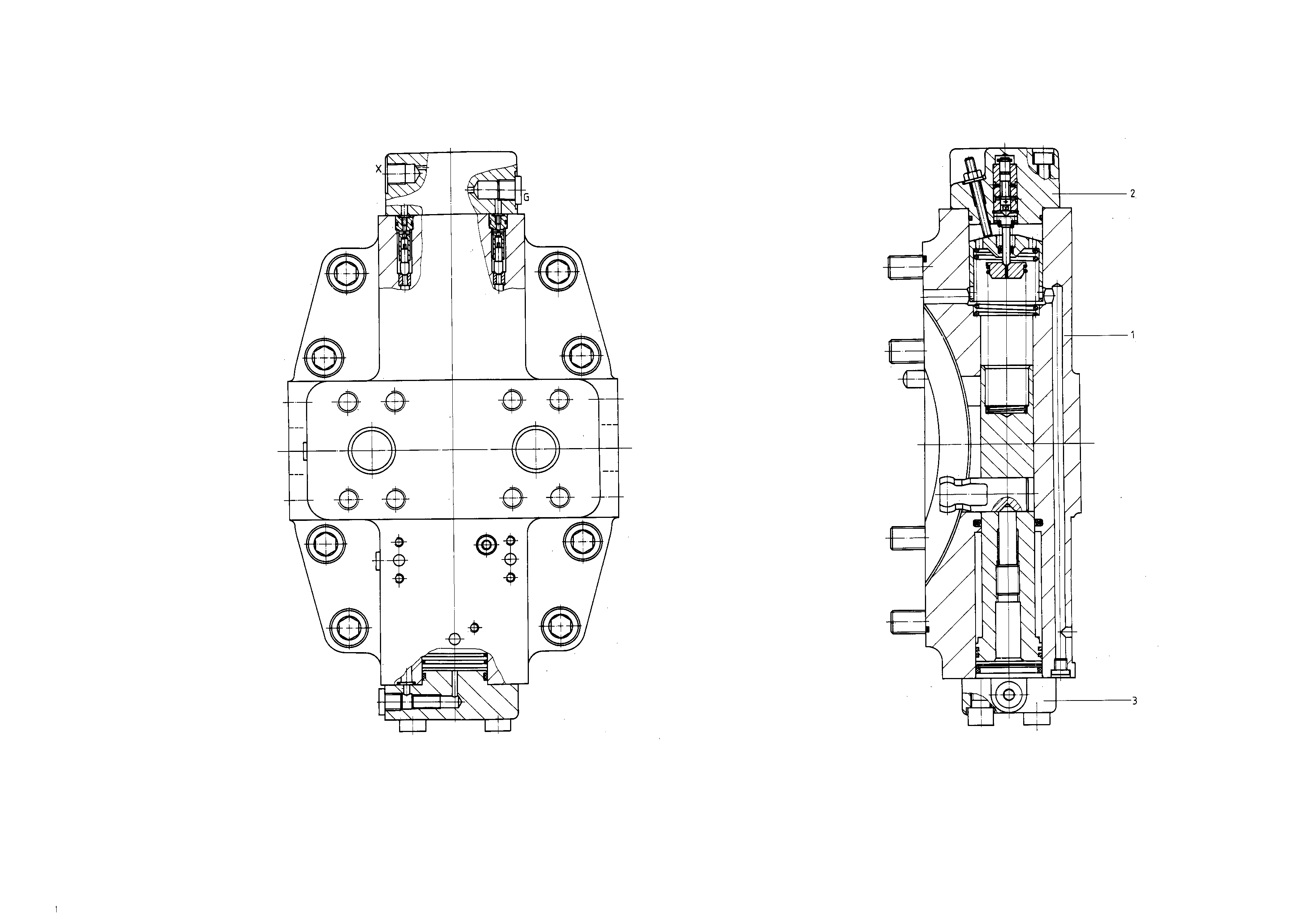

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910922727 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| 2 | R910801387 | CONTROL PART Assembly parts list →L | 1 | |
| 3 | R910802530 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Proportional control, hydraulic ΔpSt = 365 psi (25 bar) | HD2 |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Working port | SAE working ports A and B at side, opposite + at rear Flushing and boost-pressure valve, mounted 7 | 657 |
| Standard/special version | Special version | -S |
