Unit · AXIAL-PISTON MOTOR
AAA6VM250HD2/61W-PSD657B-SO29R910922732
Axial piston motor Bosch Rexroth series A6VM, type code AAA6VM250HD2/61W-PSD657B-SO29, material number R910922732. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 365 psi (25 bar) (HD2). Direction of rotation: viewed on drive shaft bidirectional (W). Drive shaft: splined shaft ANSI B92.1a (S). Mounting flange: SAE J744 - 4-bolt 165-4 (D). Working port: SAE working ports A and B at side, opposite + at rear Flushing and boost-pressure valve, mounted 7 (657). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S). Special version no. 29.
- Number
- R910922732
- Type code
- AAA6VM250HD2/61W-PSD657B-SO29
- Group
- A6VM 250
- Edition
- 06/2020

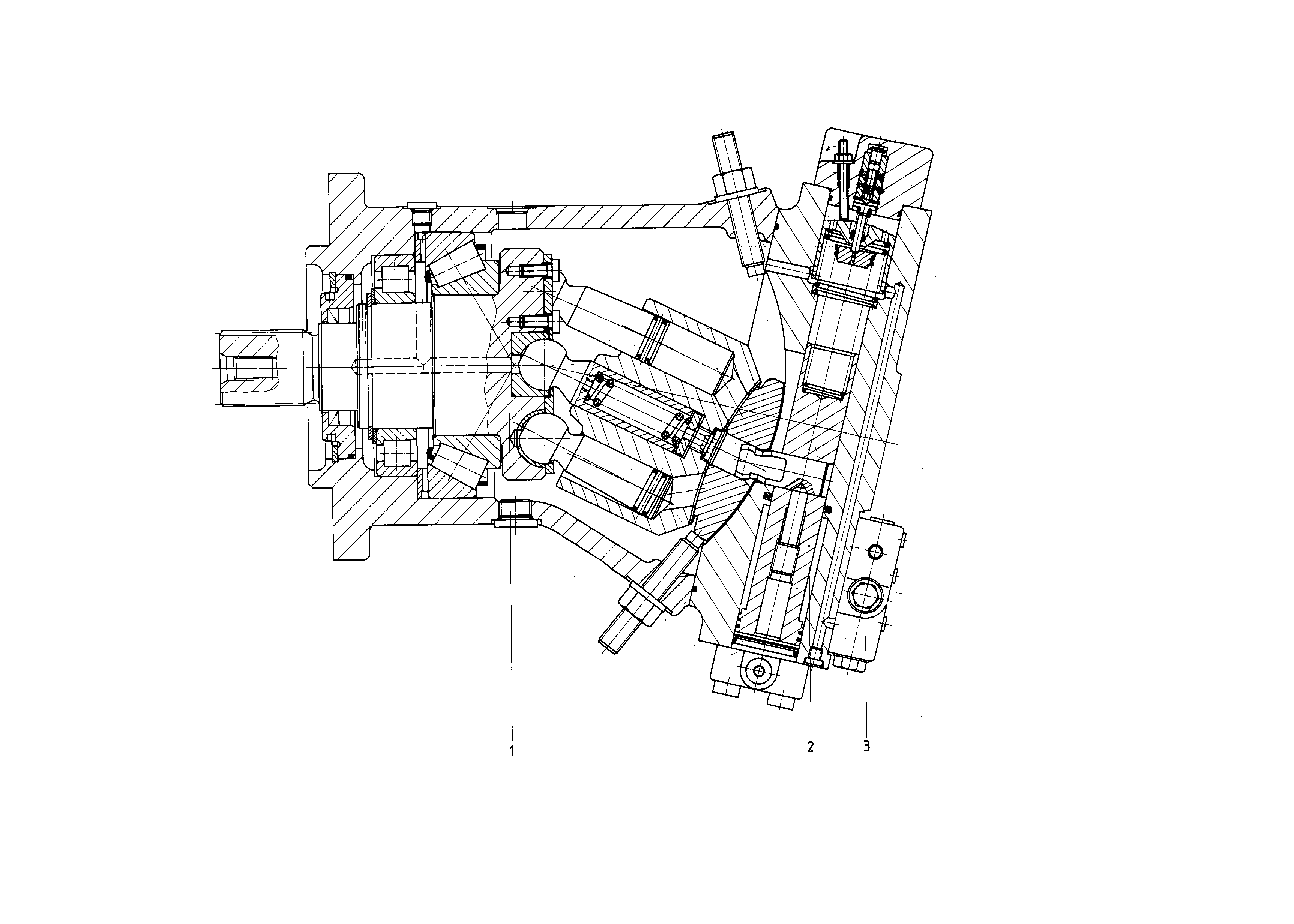

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910909652 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| 2 | R910922730 | CONTROL Assembly parts list →L | 1 | |
| R910800755 | FLUSH/BOOST PRESSURE VALVE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Proportional control, hydraulic ΔpSt = 365 psi (25 bar) | HD2 |
| Direction of rotation | Viewed on drive shaft bidirectional | W |
| Drive shaft | Splined shaft ANSI B92.1a | S |
| Mounting flange | SAE J744 - 4-bolt 165-4 | D |
| Working port | SAE working ports A and B at side, opposite + at rear Flushing and boost-pressure valve, mounted 7 | 657 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
