Unit · AXIAL-PISTON PUMP
A A10V O 28 DFR /31R-PSC62N00 -SO201R910922873
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO28DFR/31R-PSC62N00-SO201, material number R910922873. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T open Hydraulic (DFR). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: without through drive (N00). Special version no. 201.
- Number
- R910922873
- Type code
- A A10V O 28 DFR /31R-PSC62N00 -SO201
- Group
- A10VO 28
- Edition
- 06/2020

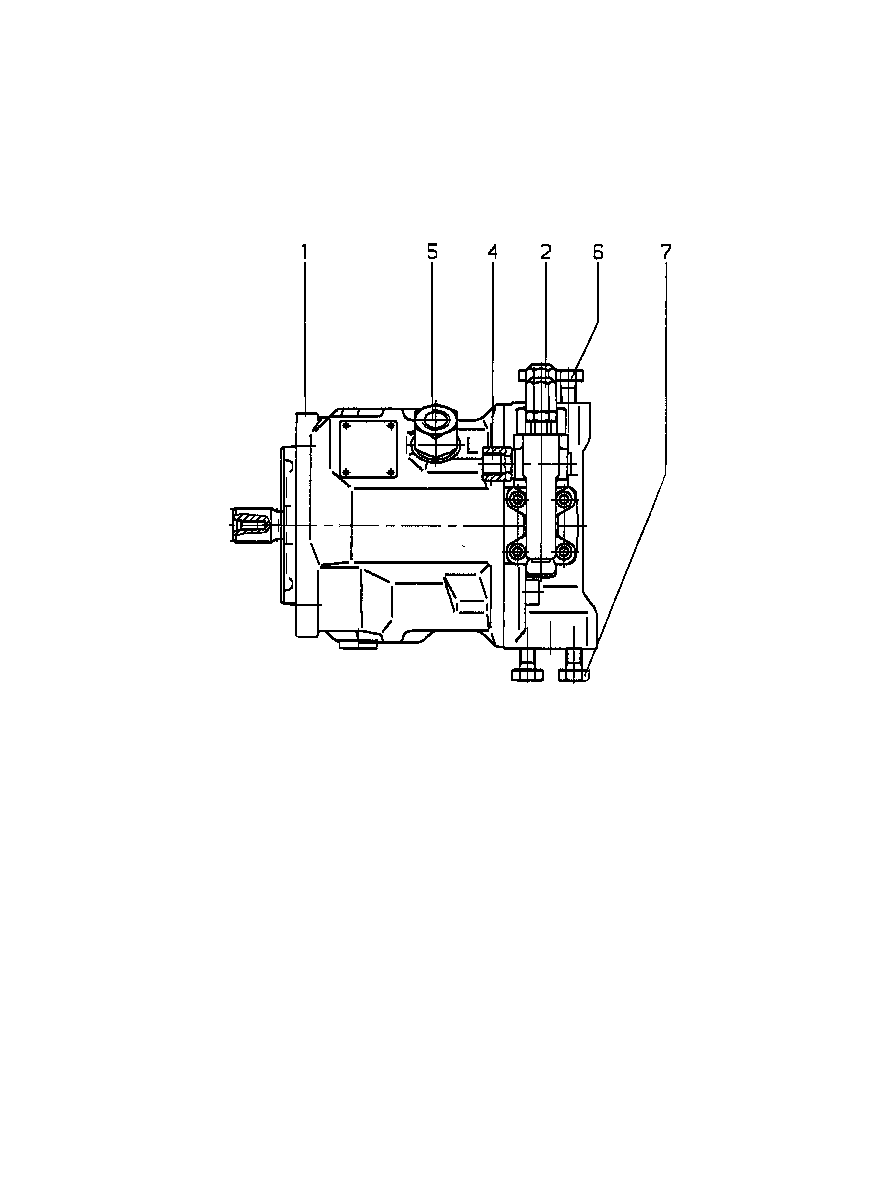

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910906437 | BASE UNIT Assembly parts list →L | 1 | |
| R902453430 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910921653 | ADAPTER Assembly parts list →L | 1 | ||
| R910792829 | ADAPTER Assembly parts list →L | 1 | ||
| 6 | R910748889 | HEXAGON SCREW | 4 | |
| R910748897 | HEXAGON SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Control device | With flow controller X-T open Hydraulic | DFR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | Without through drive | N00 |
Other versions 13
- R902434278 A A10V O 28 DFR /31R-PSC62N00
- R902544818 A A10V O 28 DFR /31R-PSC62N00
- R910907402 A A10V O 28 DFR /31R-PSC62N00
- R902414028 A A10V O 28 DFR /31R-PSC62N00 -S1270
- R910913576 A A10V O 28 DFR /31R-PSC62N00 -SO 13
- R910913495 A A10V O 28 DFR /31R-PSC62N00 -SO 97
- R902400155 A A10V O 28 DFR /31R-PSC62N00 -SO169
- R910995069 A A10V O 28 DFR /31R-PSC62N00 -SO413
- R902434289 A A10V O 28 DFR /31R-PSC62N00 ESO413
- R902438299 AA10VO28DFR/31R-PSC62N00-SO108
- R902414027 AL A10V O 28 DFR /31R-PSC62N00 -S1270
- R910992616 AL A10V O 28 DFR /31R-PSC62N00 -SO 97
- R902438300 ALA10VO28DFR/31R-PSC62N00-SO108
