Unit · AXIAL-PISTON MOTOR
AA6VM355HD1/61W-PPH027BR910922911
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM355HD1/61W-PPH027B, material number R910922911. Nominal size: NG 355. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 10 bar (HD1). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: ISO 3019-2 8-hole (H). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R910922911
- Type code
- AA6VM355HD1/61W-PPH027B
- Group
- A6VM 355
- Edition
- 06/2020

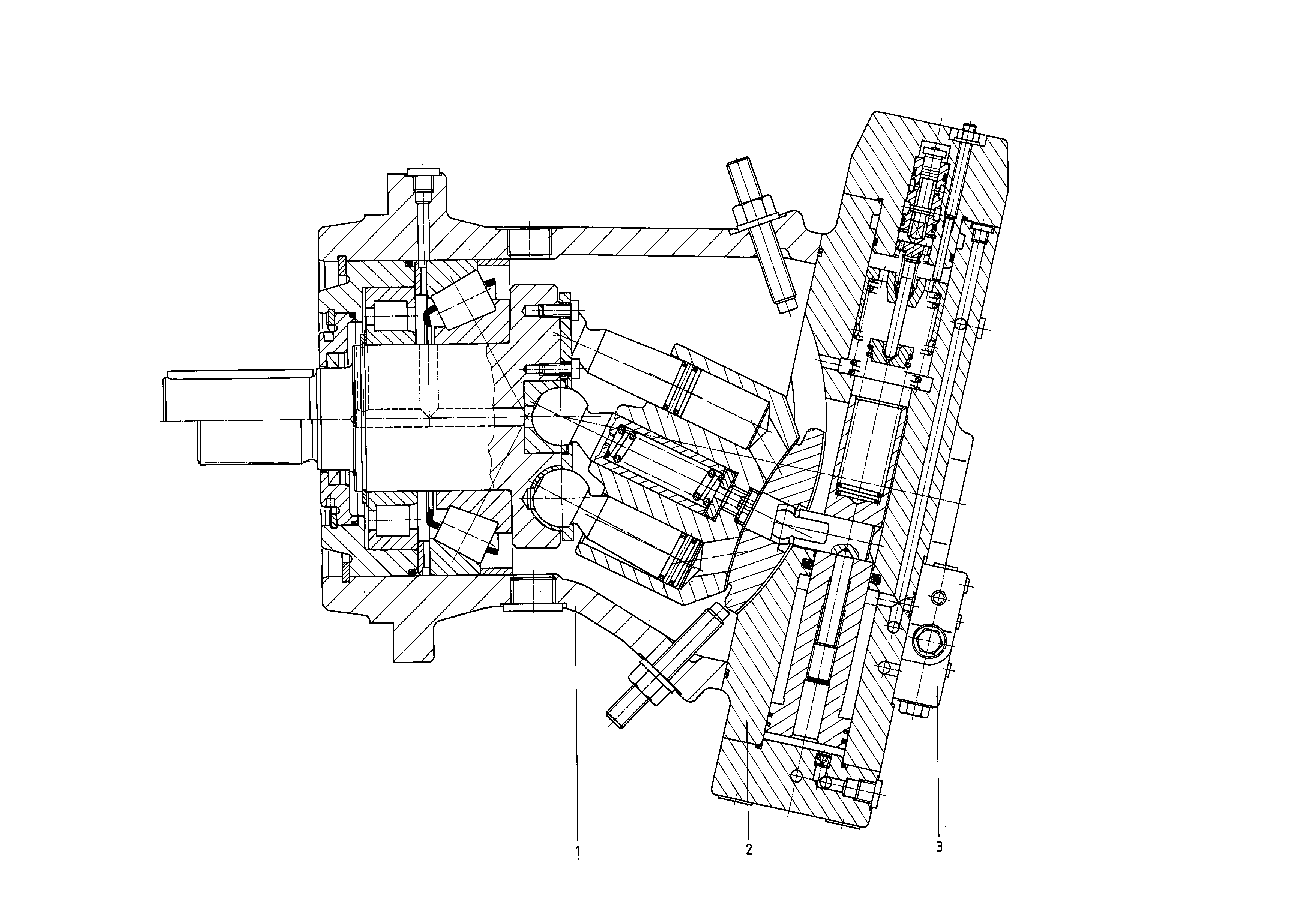

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910913032 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | |
| 2 | R910910463 | CONTROL Assembly parts list →L | 1 | |
| 3 | R910800755 | FLUSH/BOOST PRESSURE VALVE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 355 | 355 |
| Control device | Proportional control, hydraulic ΔpSt = 10 bar | HD1 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | ISO 3019-2 8-hole | H |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
