Unit · AXIAL-PISTON MOTOR
AAA6VM250HA1/61W-PSD520A-SO20R910923104
Axial piston motor Bosch Rexroth series A6VM, type code AAA6VM250HA1/61W-PSD520A-SO20, material number R910923104. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 145 psi (10 bar) (HA1). Direction of rotation: viewed on drive shaft bidirectional (W). Drive shaft: splined shaft ANSI B92.1a (S). Mounting flange: SAE J744 - 4-bolt 165-4 (D). Working port: SAE working ports Without valve 0 A and B at side, opposite 52 (520). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S). Special version no. 20.
- Number
- R910923104
- Type code
- AAA6VM250HA1/61W-PSD520A-SO20
- Group
- A6VM 250
- Edition
- 06/2020

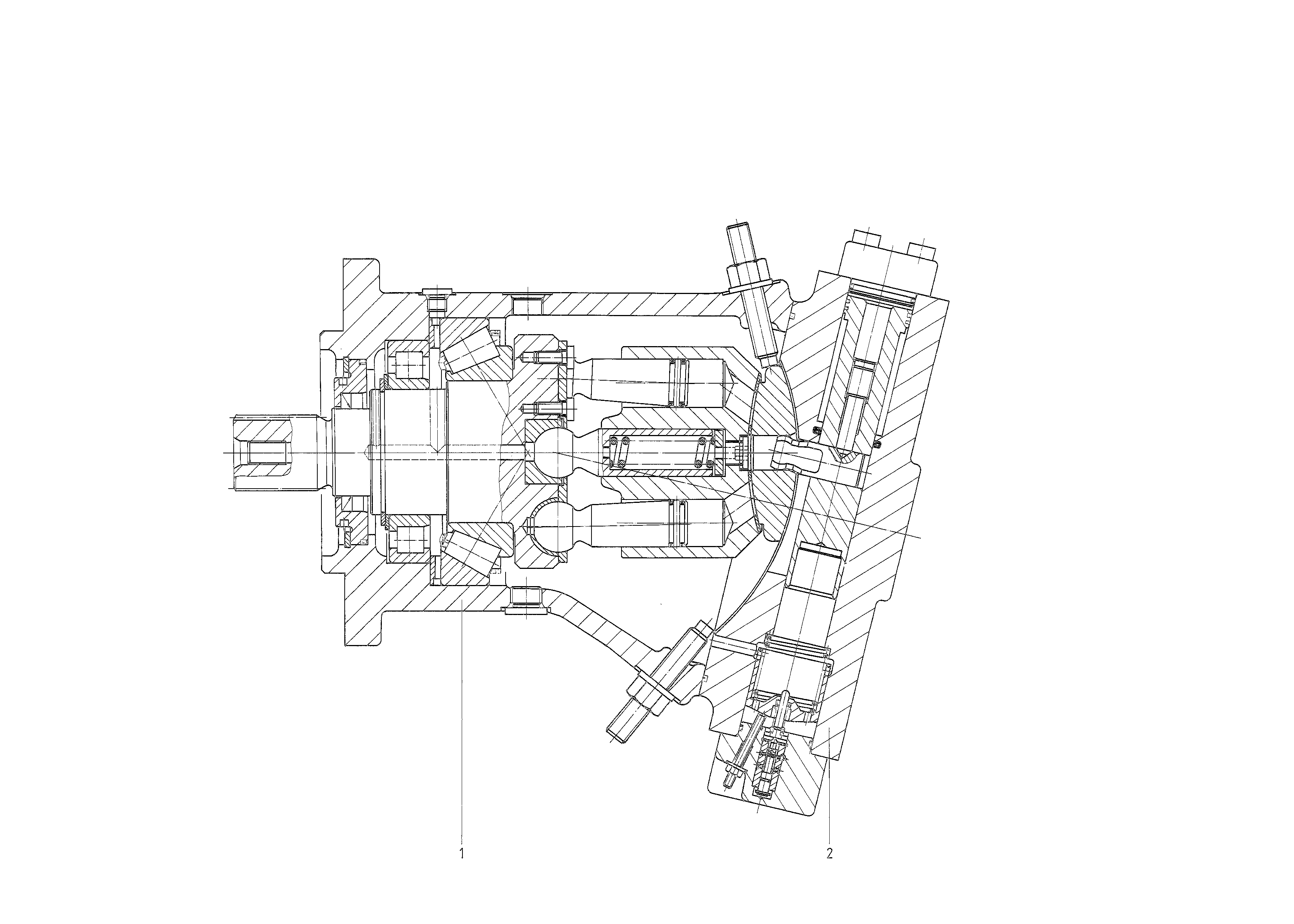

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910909652 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | |
| 2 | R910923105 | CONTROL Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 145 psi (10 bar) | HA1 |
| Direction of rotation | Viewed on drive shaft bidirectional | W |
| Drive shaft | Splined shaft ANSI B92.1a | S |
| Mounting flange | SAE J744 - 4-bolt 165-4 | D |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 52 | 520 |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
