Unit · CONTROL
V A6V M 250 HD2 /61-P088R910923166
Control Bosch Rexroth series A6VM, type code VA6VM250HD2/61-P088, material number R910923166. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 25 bar (HD2). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1).
- Number
- R910923166
- Type code
- V A6V M 250 HD2 /61-P088
- Group
- A6VM 250
- Edition
- 06/2020

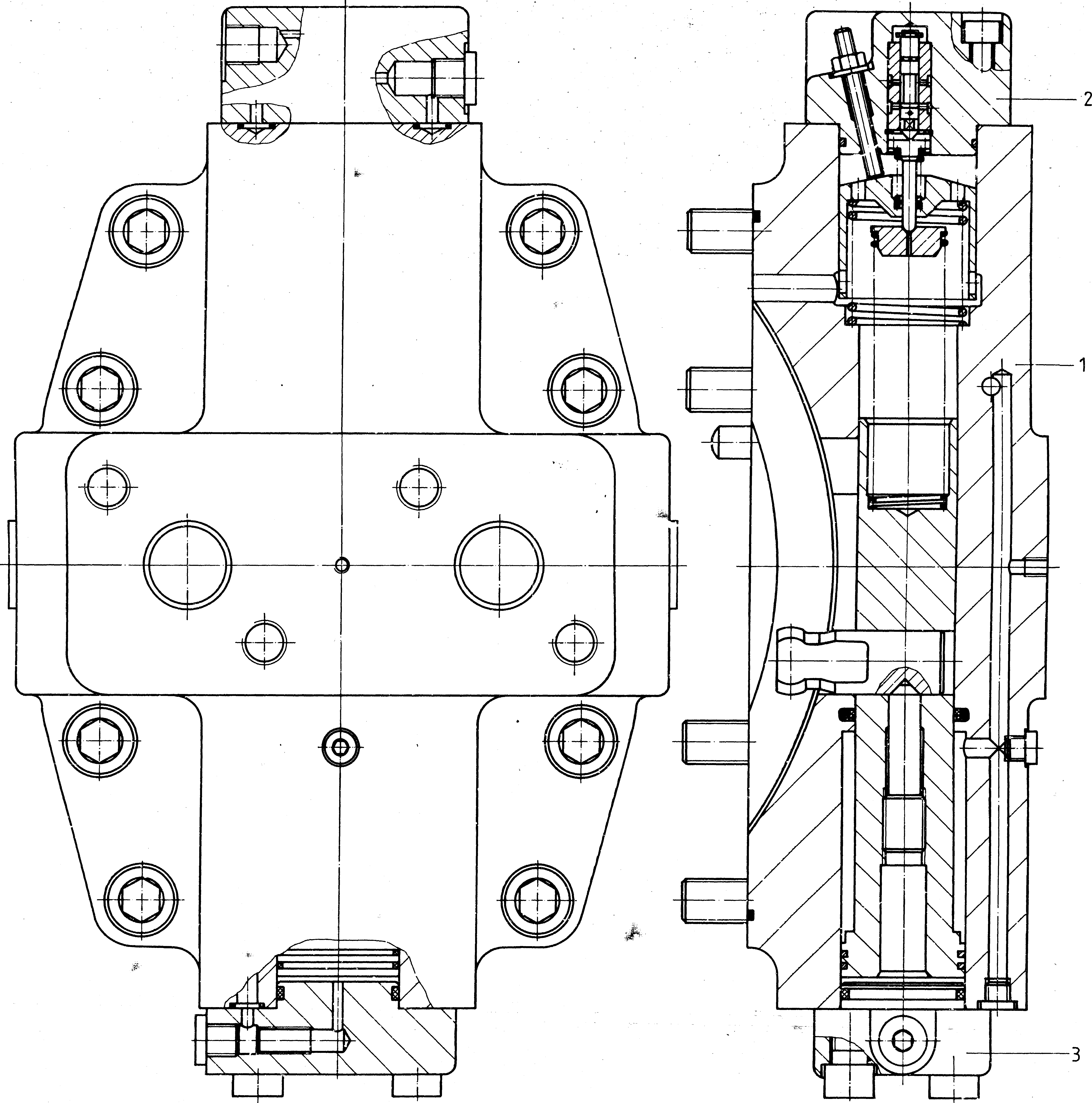

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910912122 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910801384 | CONTROL PART Assembly parts list →L | 1 | ||
| R910802527 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Proportional control, hydraulic ΔpSt = 25 bar | HD2 |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
