Unit · AXIAL-PISTON PUMP
AA10VO100+DFSR/31L-PSC62K68-SO160R910924576
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO100+DFSR/31L-PSC62K68-SO160, material number R910924576. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O).
- Number
- R910924576
- Type code
- AA10VO100+DFSR/31L-PSC62K68-SO160
- Group
- A10VO 100
- Edition
- 06/2020

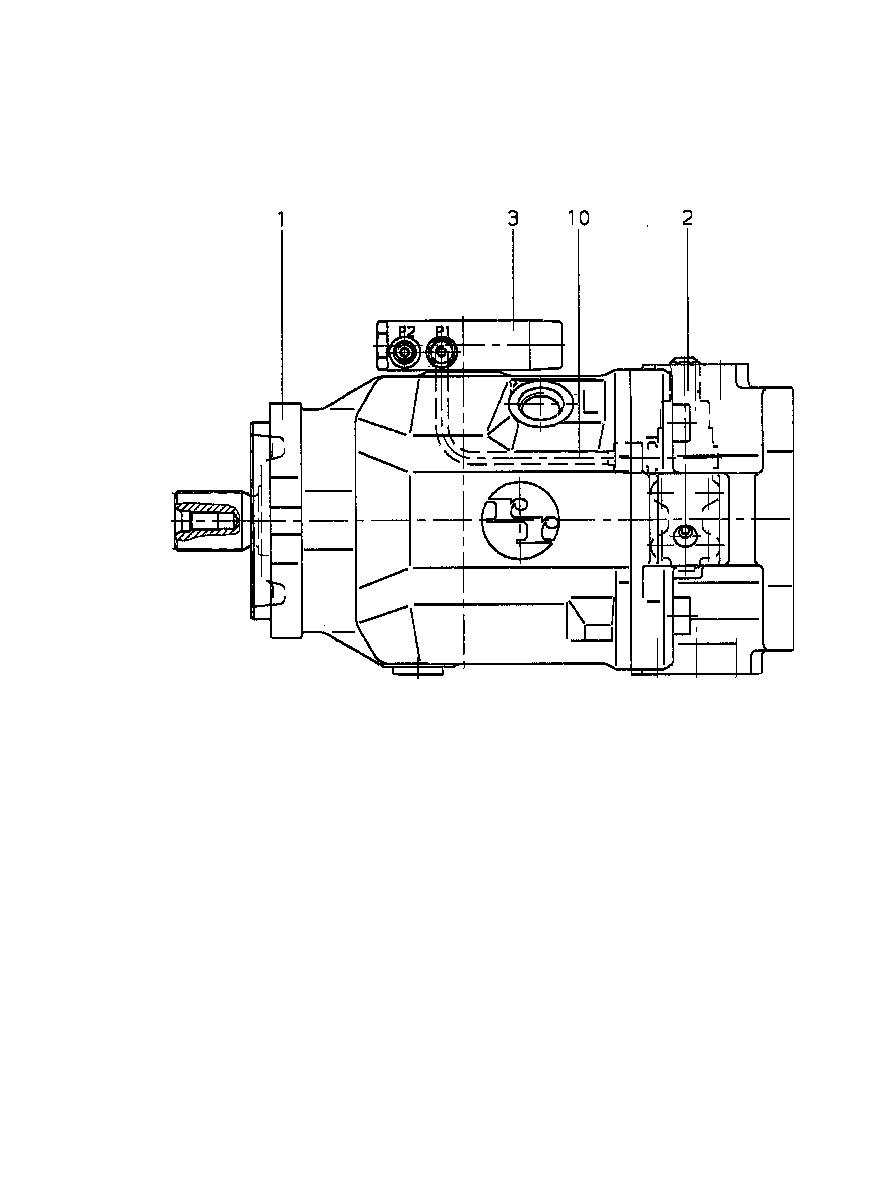

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910911202 | BASE UNIT Assembly parts list →L | 1 | |
| 2 | R902490090 | CONTROL VALVE Assembly parts list →L | 1 | |
| 3 | R902533227 | CONTROL VALVE Assembly parts list →L | 1 | |
| R910960877 | PIPING Assembly parts list →L | 1 | ||
| 14 | R909154478 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
