Unit · CONTROL
V A6V M 250 HA1T /61 -P017R910924844
Control Bosch Rexroth series A6VM, type code VA6VM250HA1T/61-P017, material number R910924844. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar (HA1). Override (only for HA): override, hydraulic, remote controlled, proportional (T). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 (017).
- Number
- R910924844
- Type code
- V A6V M 250 HA1T /61 -P017
- Group
- A6VM 250
- Edition
- 06/2020

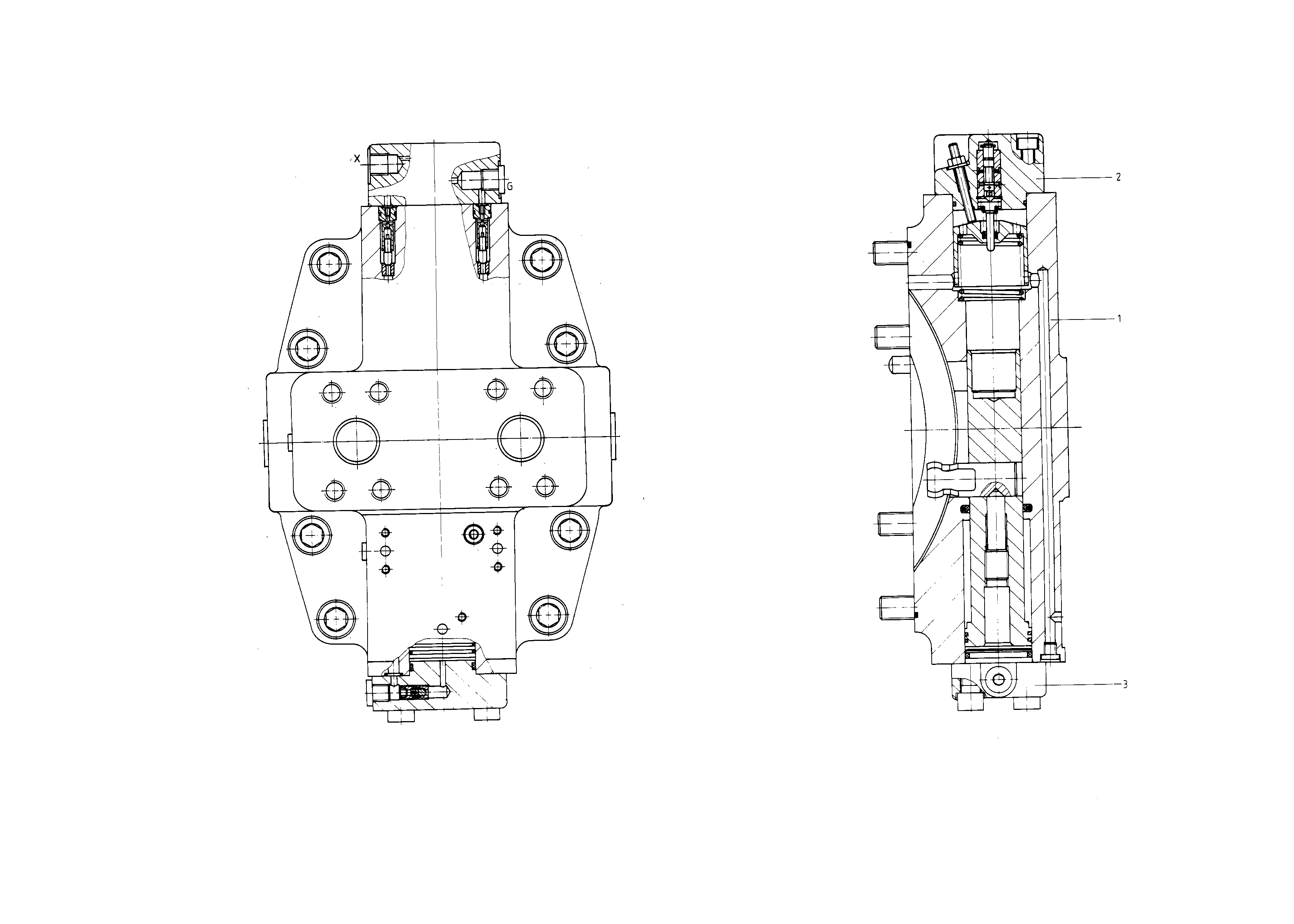

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910908944 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| 2 | R910801380 | CONTROL PART Assembly parts list →L | 1 | |
| 3 | R910802528 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar | HA1 |
| Override (only for HA) | Override, hydraulic, remote controlled, proportional | T |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 | 017 |
