Unit · AXIAL-PISTON MOTOR
AEA6VLM250HA2/61W-PZB020AR910925137
Axial piston motor Bosch Rexroth series A6VM, type code AEA6VLM250HA2/61W-PZB020A, material number R910925137. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Drive shaft bearing: long-life bearing (L). Operating mode: motor (M). Control device: automatic control, high-pressure related with pressure increase Δp = 100 bar (HA2). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg min (standard for HA) (A).
- Number
- R910925137
- Type code
- AEA6VLM250HA2/61W-PZB020A
- Group
- A6VLM 250
- Edition
- 06/2020

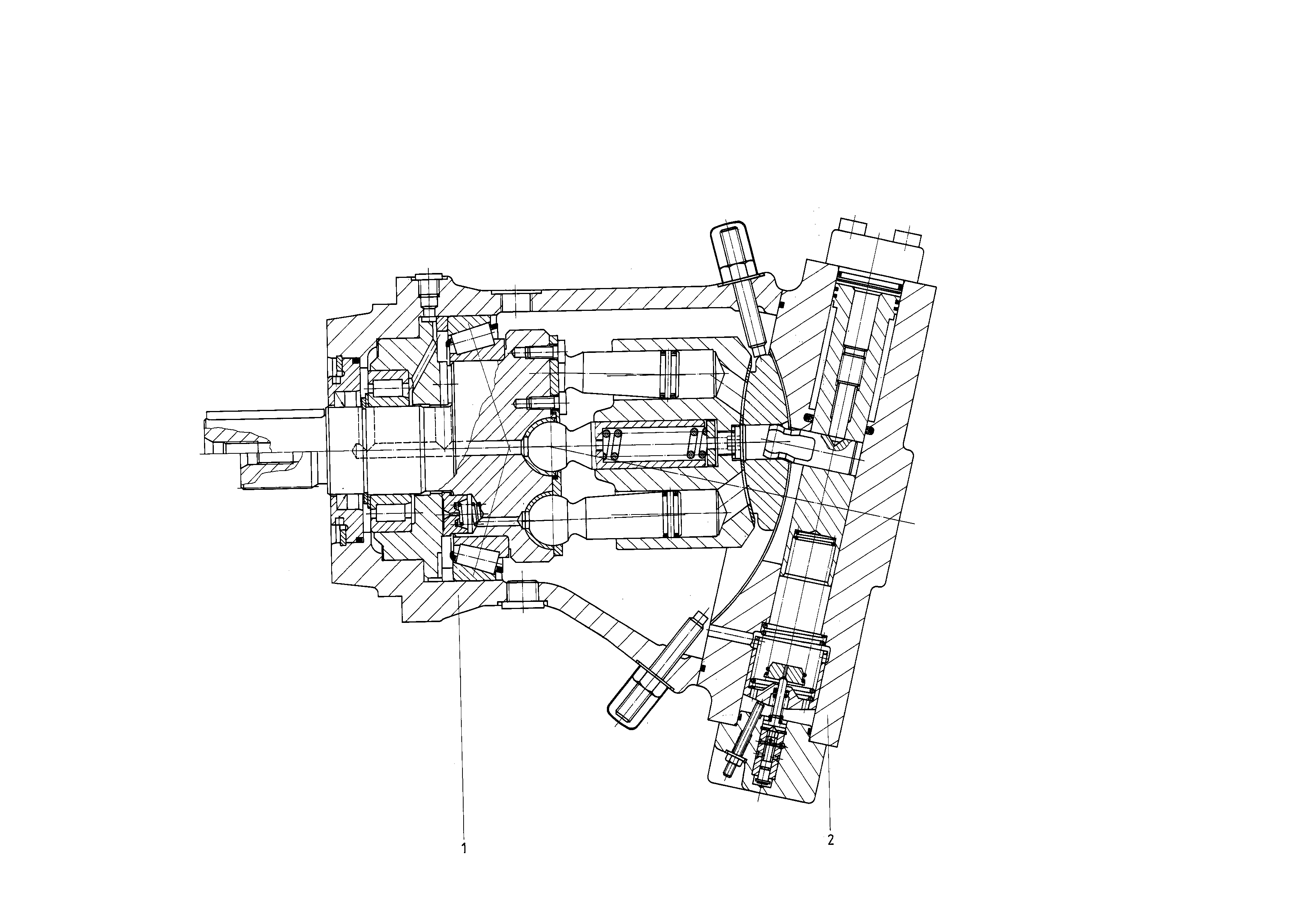

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910925123 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | |
| 2 | R910907820 | CONTROL Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Drive shaft bearing | Long-life bearing | L |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Automatic control, high-pressure related with pressure increase Δp = 100 bar | HA2 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg min (standard for HA) | A |
