Unit · BASE UNIT
G A10VSO 28 OV /31R-VPA12K25 LR -SO 13R910925166
Base unit Bosch Rexroth series A10VSO, type code GA10VSO28OV/31R-VPA12K25LR-SO13, material number R910925166. Nominal size: NG 28. Version: standard version (without symbol), swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft clockwise (R). Drive shafts: parallel keyed shaft DIN 6885 limited suitability for through drive (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports, laterally opposite fastening thread, metric (12). Special version no. 13.
- Number
- R910925166
- Type code
- G A10VSO 28 OV /31R-VPA12K25 LR -SO 13
- Group
- A10VSO 28
- Edition
- 06/2020

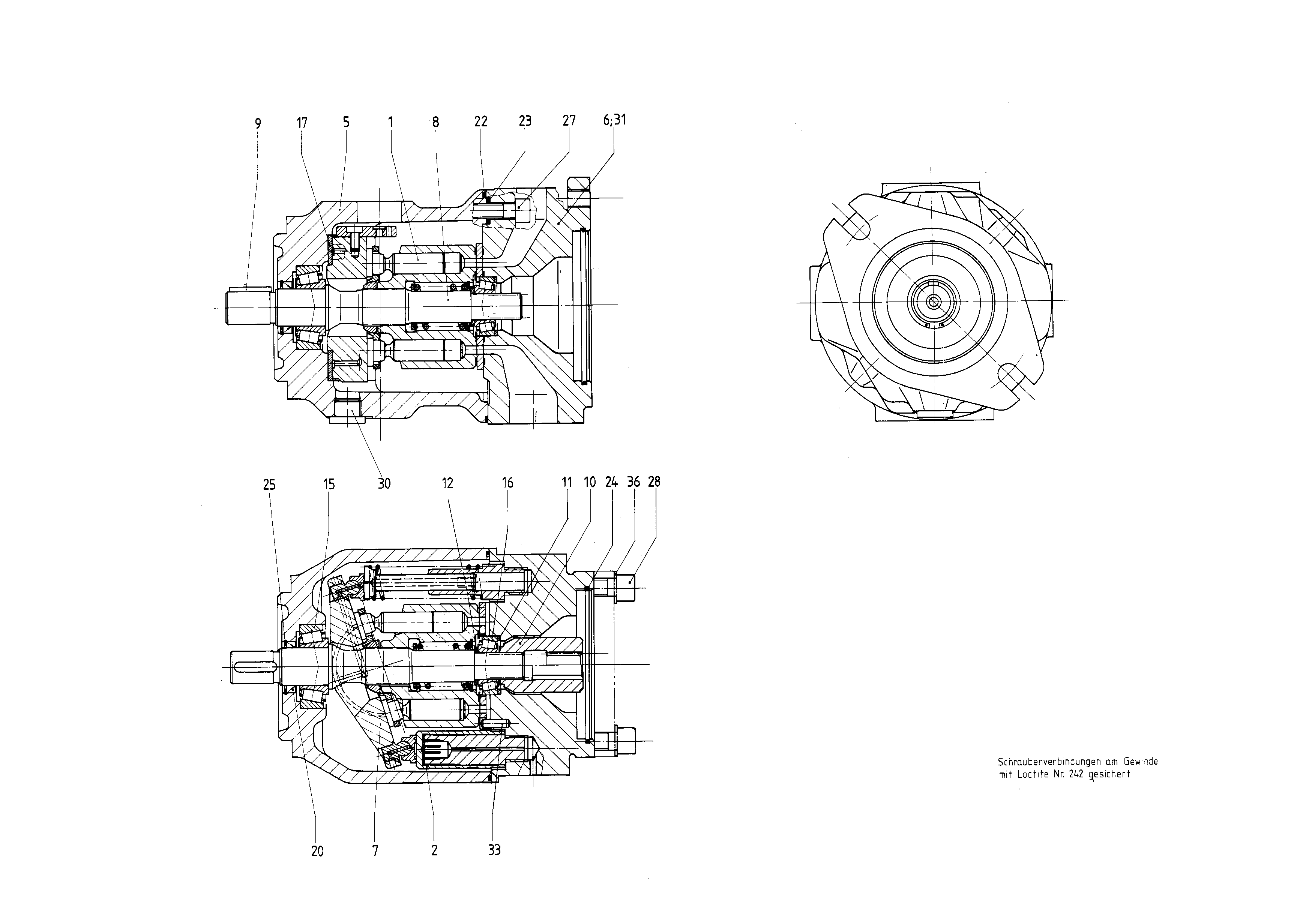

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902439597 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910916304 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902550219 | PUMP HOUSING | 1 | ||
| 6 | R902543231 | CONNECTION PLATE | 1 | |
| R910961001 | SWASH PLATE Assembly parts list →L | 1 | ||
| R902415913 | DRIVE SHAFT | 1 | ||
| R910125539 | PARALLEL KEY | 1 | ||
| 10 | R910799408 | HUB | 1 | |
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| 15 | R902438109 | TAPERED-ROLLER BEARING | 1 | |
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R910902778 | BEARING SHELL | 2 | ||
| R910794325 | SHAFT SEALING RINGD | 1 | ||
| R910976090 | O-RINGD | 1 | ||
| R913052104 | R-RINGD | 4 | ||
| 24 | R910640182 | O-RINGD | 1 | |
| R902403815 | RETAINING RING | 1 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156651 | SCREW PLUGD | 1 | ||
| 31 | R910942668 | BREAK-OFF PLUG | 2 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| 34 | R913011609 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | Standard version (without symbol), swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 28 | 28 |
| Series | Series 3, index 1 | 31 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Drive shafts | Parallel keyed shaft DIN 6885 limited suitability for through drive | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports, laterally opposite fastening thread, metric | 12 |
