Unit · POMPA OSIOWO-TŁOKOWA

AA10VSO100DFLR/31R-PPA12K00-SO47R910925250

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO100DFLR/31R-PPA12K00-SO47, material number R910925250. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Special version no. 47.

Number: R910925250
Type code: AA10VSO100DFLR/31R-PPA12K00-SO47
Group: A10VSO 100
Edition: 06/2020

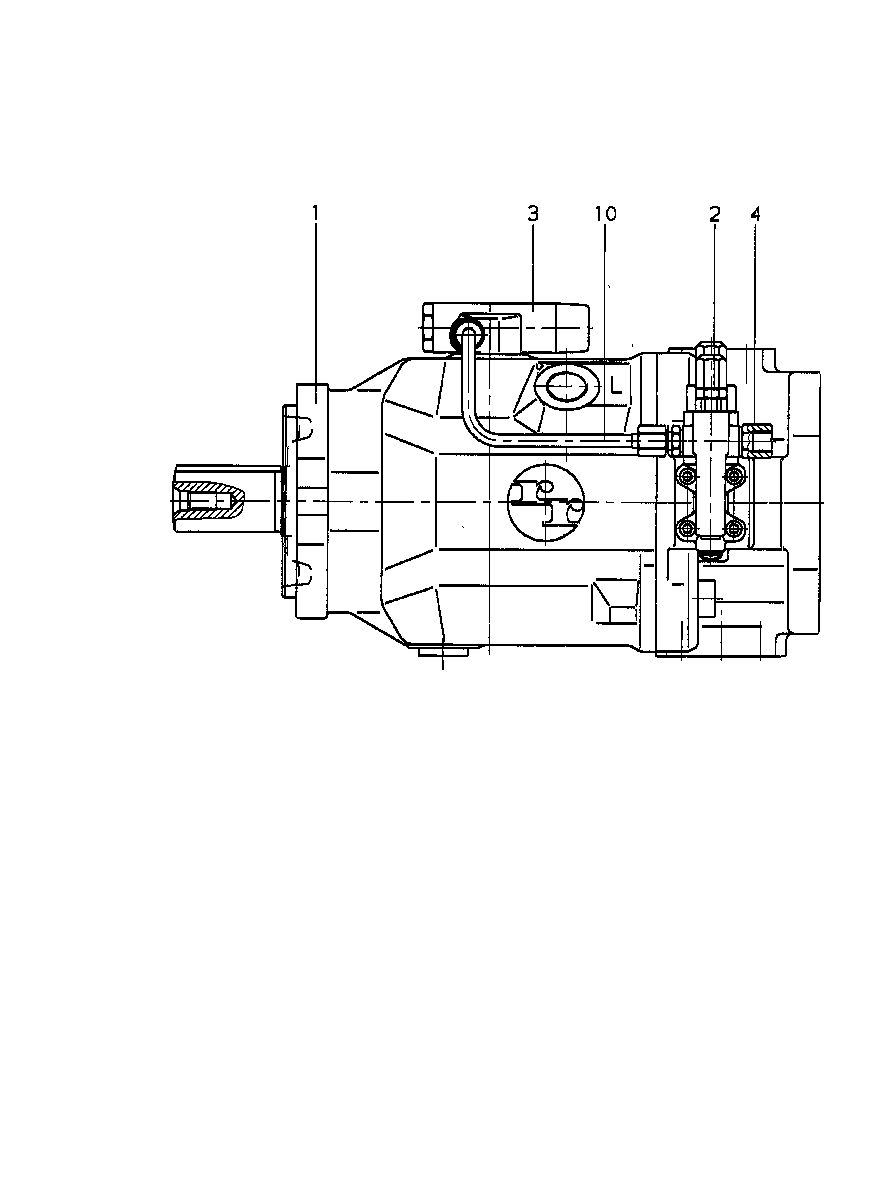

AA10VSO100DFLR/31R-PPA12K00-SO47 — Drawing

Pos.	Number	Name	Qty
1	R910924994	ZESPÓŁ PODSTAWY Assembly parts list →L	1
2	R902450439	ZAWÓR REGULACYJNY Assembly parts list →L	1
3	R902533217	ZAWÓR REGULACYJNY Assembly parts list →L	1
4	R910932941	ADAPTER Assembly parts list →L	1
10	R910960141	ORUROWANIE Assembly parts list →L	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar	A10VS
Operating mode	Pump, open circuit	O
Size (NG)	100	100
Control device	Pressure, flow and power controller	DFLR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft clockwise	R
Sealing material	NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid	P
Drive shaft	Parallel keyed shaft DIN 6885 permissible through-drive torque	P
Mounting flange	ISO 3019-2 2-hole	A
Working port	SAE flange ports according to ISO 6162, metric fastening thread laterally opposite	12

Parameters from the type code
