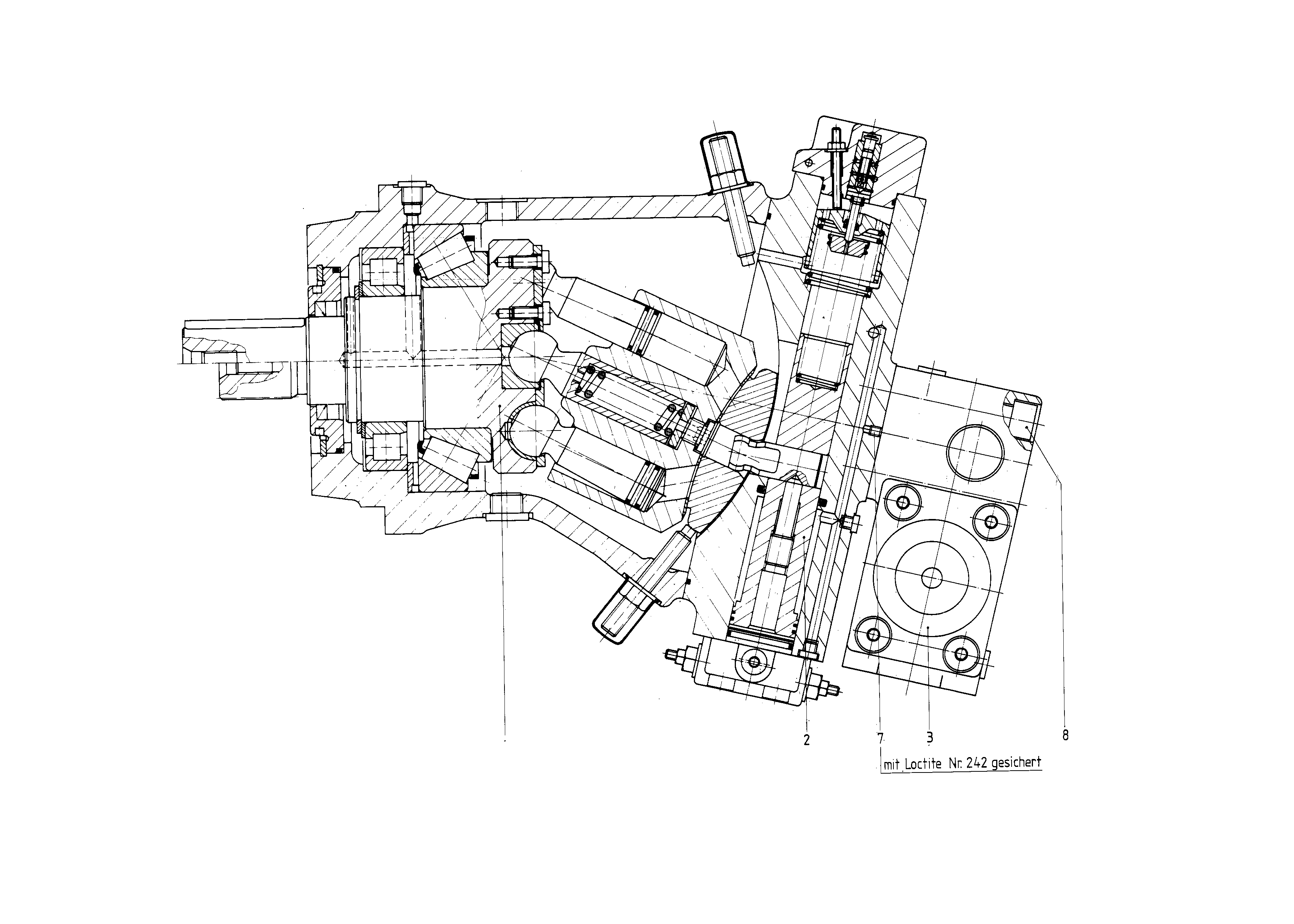

Unit · AXIAL-PISTON MOTOR
AA6VM250HD1D/61W-VZB088B-SO31R910925442
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM250HD1D/61W-VZB088B-SO31, material number R910925442. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 10 bar (HD1). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S). Special version no. 31.
- Number
- R910925442
- Type code
- AA6VM250HD1D/61W-VZB088B-SO31
- Group
- A6VM 250
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910906475 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R910925439 | CONTROL Assembly parts list →L | 1 | ||
| R910801390 | DUMMY | 1 | ||
| R910465976 | SETSCREW | 1 | ||
| R910513016 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Proportional control, hydraulic ΔpSt = 10 bar | HD1 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
