Unit · STEROWANIE
V A6V M 250 HA1 /61-P088R910926054
Control Bosch Rexroth series A6VM, type code VA6VM250HA1/61-P088, material number R910926054. Nominal size: NG 250. Axial piston unit: bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi (A6V). Operating mode: motor (M). Control device: automatic control with minimum pressure Δp ≤ approx. 145 psi high-pressure related, increase (10 bar) positive control (HA1). Swivel angle detection: without (0).
- Number
- R910926054
- Type code
- V A6V M 250 HA1 /61-P088
- Group
- A6VM 250
- Edition
- 06/2020

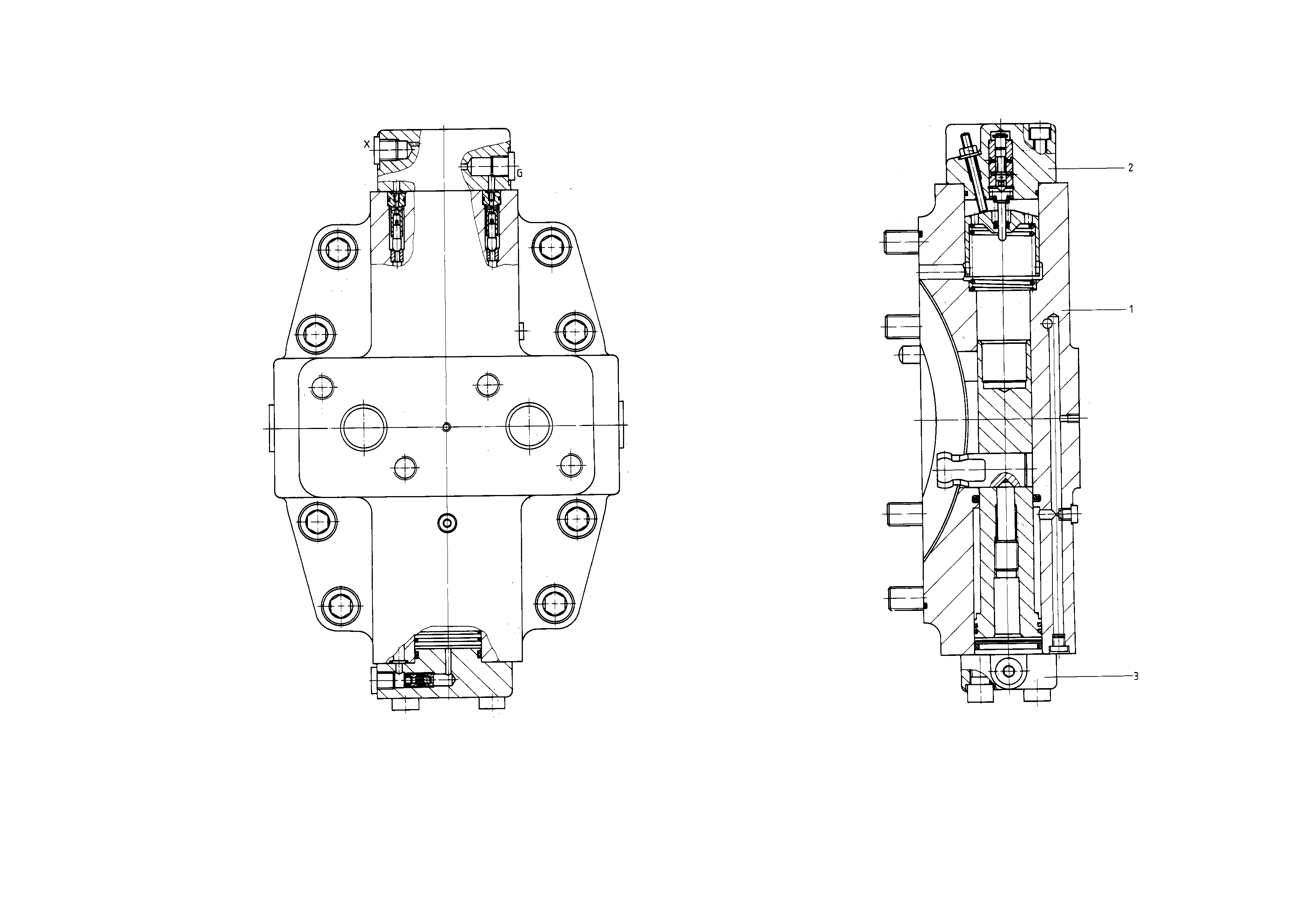

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910912122 | ELEMENT REGULACYJNY Assembly parts list →L | 1 | ||
| 2 | R910801388 | ELEMENT STERUJĄCY Assembly parts list →L | 1 | |
| 3 | R910802528 | POKRYWA Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Automatic control with minimum pressure Δp ≤ approx. 145 psi high-pressure related, increase (10 bar) positive control | HA1 |
| DEUTSCH - molded connector, 2-pin, without suppressor diode | P | |
| Swivel angle detection | Without | 0 |
| Setting range for displacement | 88 | 88 |
