Unit · AXIAL-PISTON PUMP
G A7V O 250 /60R-PPB -SO 10R910926157
Axial piston pump Bosch Rexroth series A7VO, type code GA7VO250/60R-PPB-SO10, material number R910926157. Nominal size: NG 250. Axial piston unit: bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A7V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft (R). Drive shaft: parallel keyed shaft according to DIN 6885 (P). Mounting flange: ISO 3019-2; 4-hole (B). Standard / special version: special version (-S).
- Number
- R910926157
- Type code
- G A7V O 250 /60R-PPB -SO 10
- Group
- A7VO 250
- Edition
- 06/2020

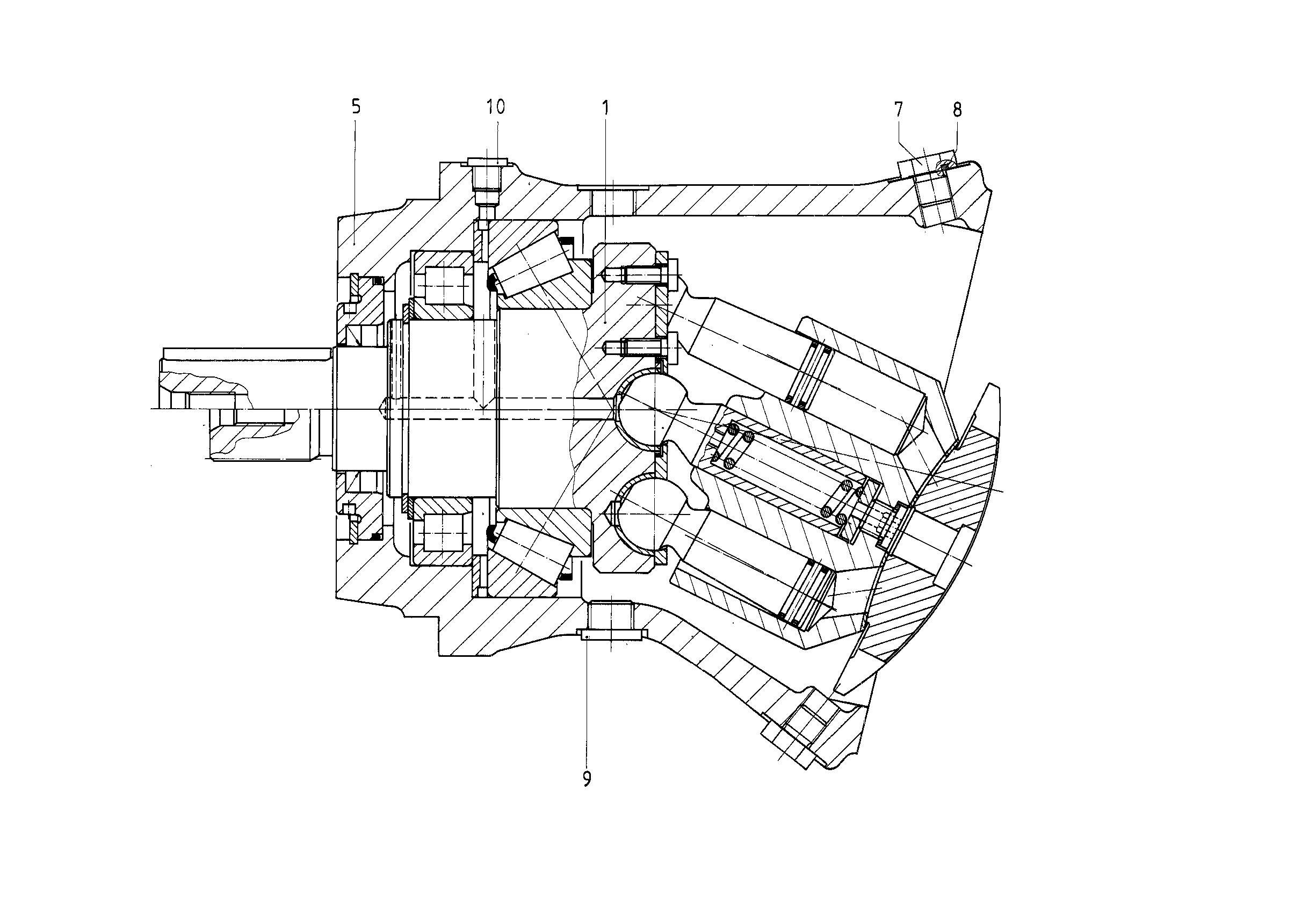

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910926156 | ROTARY GROUP Assembly parts list →L | 1 | |
| 5 | R902443566 | HOUSING | 1 | |
| 7 | R910925500 | SCREW PLUG | 2 | |
| 8 | R910744468 | SEAL RINGD | 2 | |
| 9 | R909151694 | SCREW PLUGD | 1 | |
| R909151979 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A7V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 250 | 250 |
| Direction of rotation | Viewed on drive shaft | R |
| Drive shaft | Parallel keyed shaft according to DIN 6885 | P |
| Mounting flange | ISO 3019-2; 4-hole | B |
| Standard / special version | Special version | -S |
