Unit · AXIAL-PISTON MOTOR
AA6VM250EZ2/61W-PPB010BR910926611
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM250EZ2/61W-PPB010B, material number R910926611. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: two-point control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EZ2). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports Without valve 0 A and B at rear 01 (010). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R910926611
- Type code
- AA6VM250EZ2/61W-PPB010B
- Group
- A6VM 250
- Edition
- 06/2020

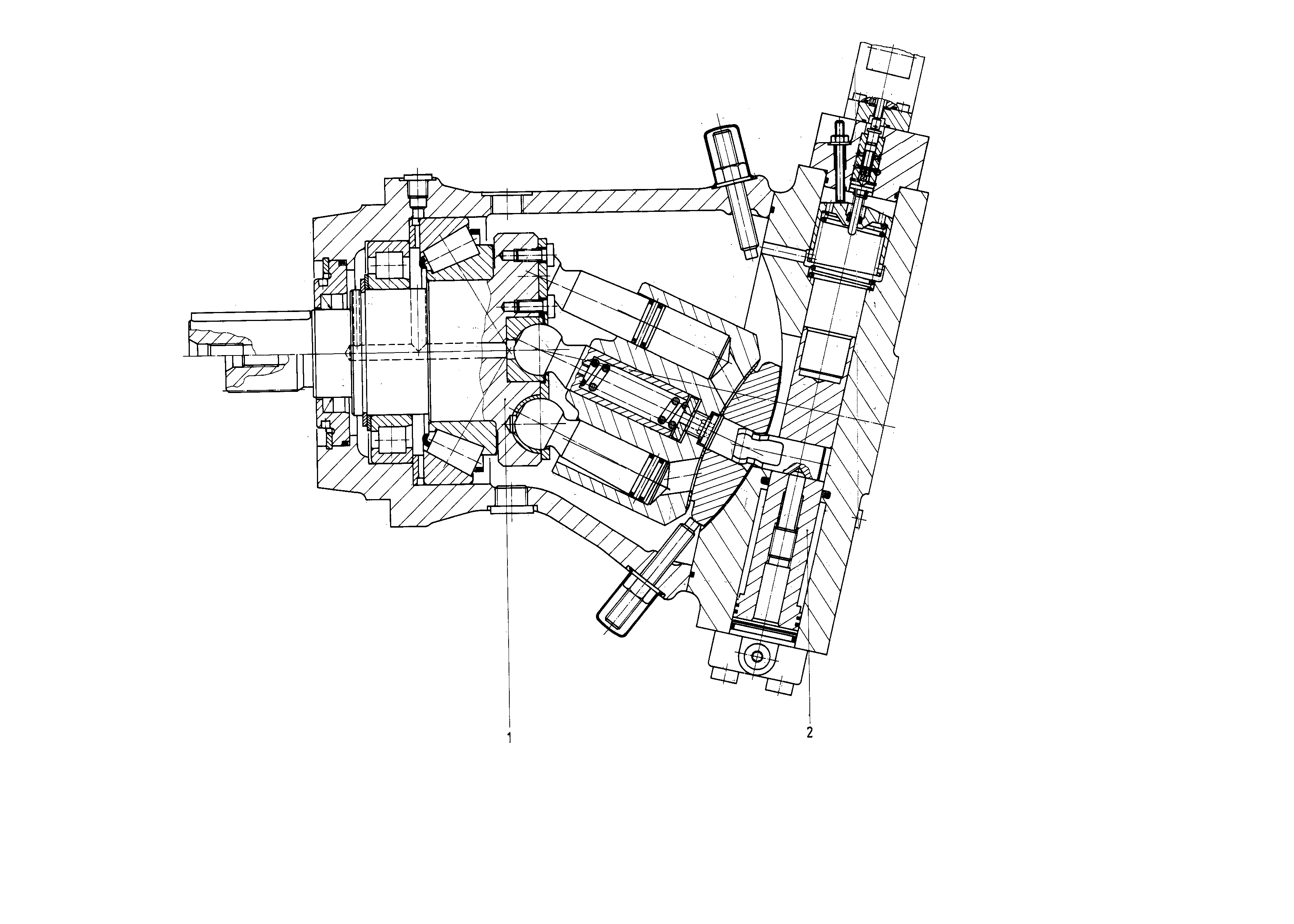

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910905228 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| 2 | R910926609 | CONTROL Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Two-point control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EZ2 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
