Unit · BASE UNIT
G A4VSG 125 M/10X-VPB10N00 -SO 9R910926930
Base unit Bosch Rexroth series A4VSG, type code GA4VSG125M/10X-VPB10N00-SO9, material number R910926930. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump / motor, closed circuit (G). Sealing material: FKM (fluorocarbon rubber) according to ISO 1629 (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through drives (for mounting options and dimensions: without through drive (N00).
- Number
- R910926930
- Type code
- G A4VSG 125 M/10X-VPB10N00 -SO 9
- Group
- A4VSG 125
- Edition
- 06/2020

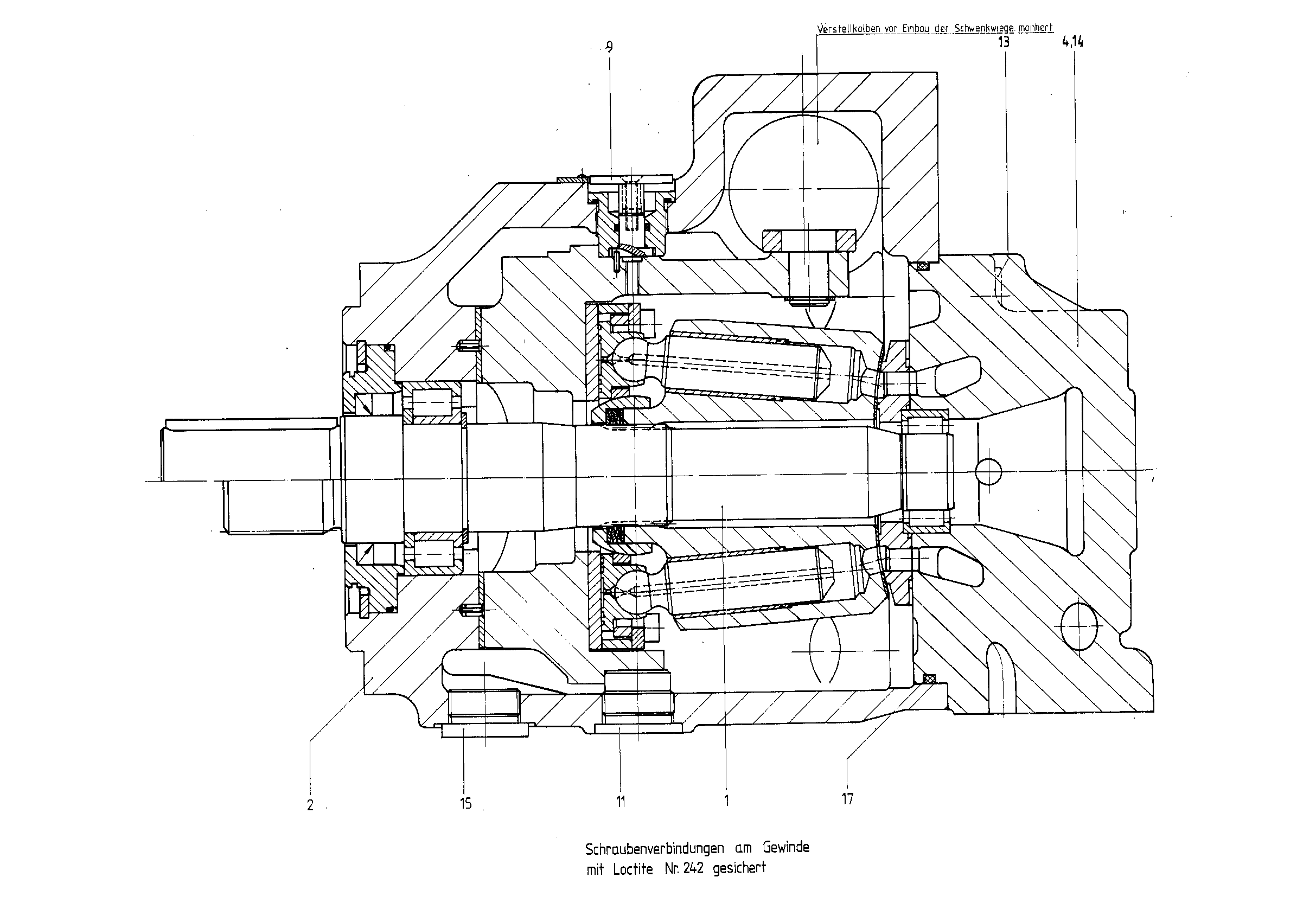

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910906915 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902452417 | REPAIR KIT | 1 | ||
| R910929468 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910929476 | STUD BOLT Assembly parts list →L | 1 | ||
| R910209228 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153930 | SCREW PLUGD | 2 | ||
| R909156652 | SCREW PLUGD | 3 | ||
| R910929492 | O-RINGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump / motor, closed circuit | G |
| Size (NG) | 125 | 125 |
| Series | Series 1, index 0 | 10 |
| Sealing material | FKM (fluorocarbon rubber) according to ISO 1629 | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through drives (for mounting options and dimensions | Without through drive | N00 |
