Unit · AXIAL-PISTON PUMP
PA4VSG125HD/11R-VPB10N000N-SO285R910927133
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG125HD/11R-VPB10N000N-SO285, material number R910927133. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: without through drive (N00). Valves: without valve block (0). Filtration: without filter (N). Special version no. 285.
- Number
- R910927133
- Type code
- PA4VSG125HD/11R-VPB10N000N-SO285
- Group
- A4VSG 125
- Edition
- 06/2020

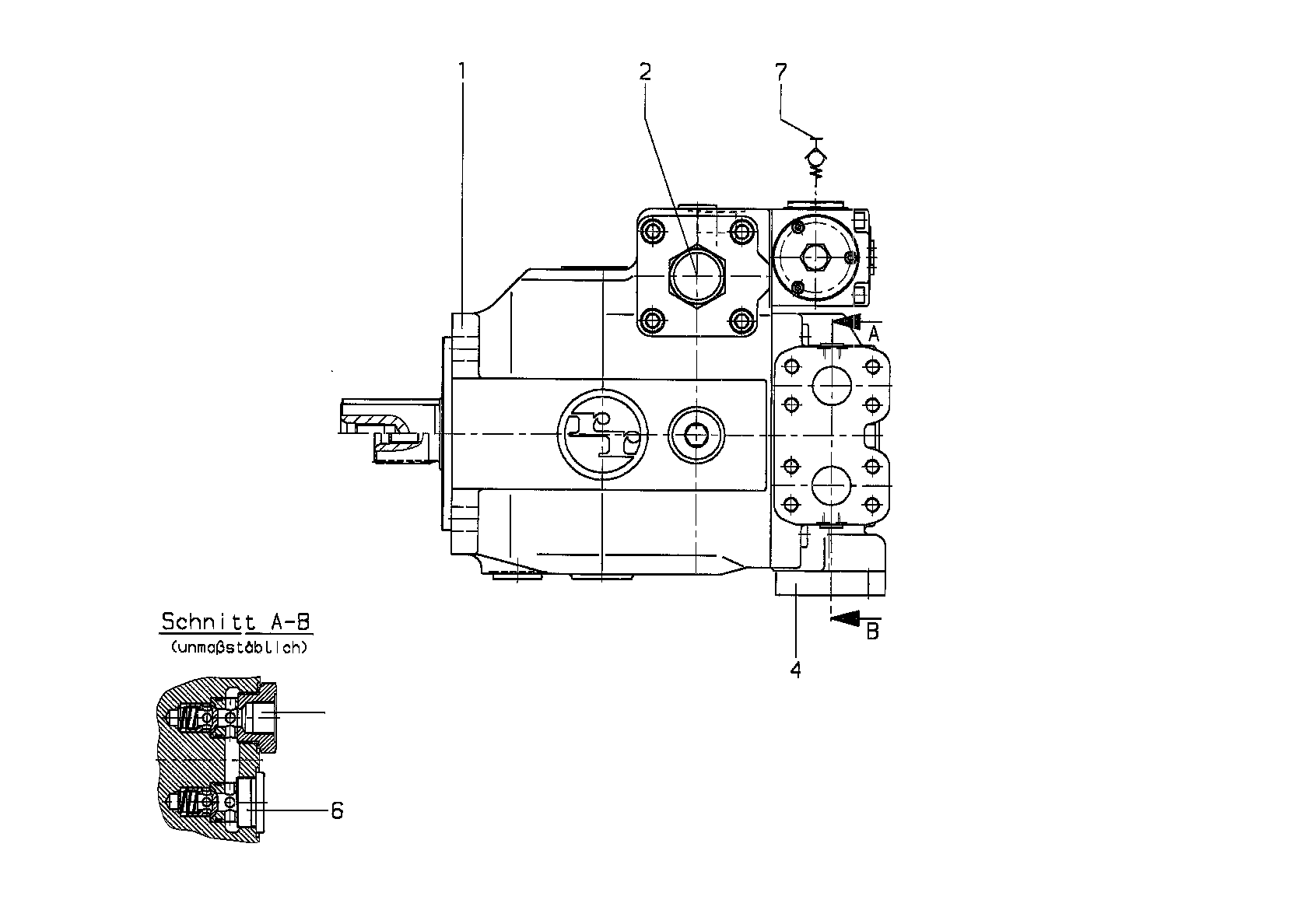

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910926930 | BASE UNIT Assembly parts list →L | 1 | ||
| R910926828 | CONTROL Assembly parts list →L | 1 | ||
| 4 | R902412337 | BLANK FLANGE Assembly parts list →L | 1 | |
| 5 | R910906960 | VALVE MOUNTING KIT | 1 | |
| 6 | R910906959 | VALVE MOUNTING KIT | 1 | |
| 7 | R910920008 | CHECK VALVE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 125 | 125 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through-drive | Without through drive | N00 |
| Valves | Without valve block | 0 |
| Filtration | Without filter | N |
