Unit · BASE UNIT
GEAA10VSO 45 OV /31R-VKC62K01 LRR910927190
Base unit Bosch Rexroth series A10VSO, type code GEAA10VSO45OV/31R-VKC62K01LR, material number R910927190. Nominal size: NG 45. Version: HFA, HFB, HFC hydraulic fluid (E). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01).
- Number
- R910927190
- Type code
- GEAA10VSO 45 OV /31R-VKC62K01 LR
- Group
- A10VSO 45
- Edition
- 06/2020

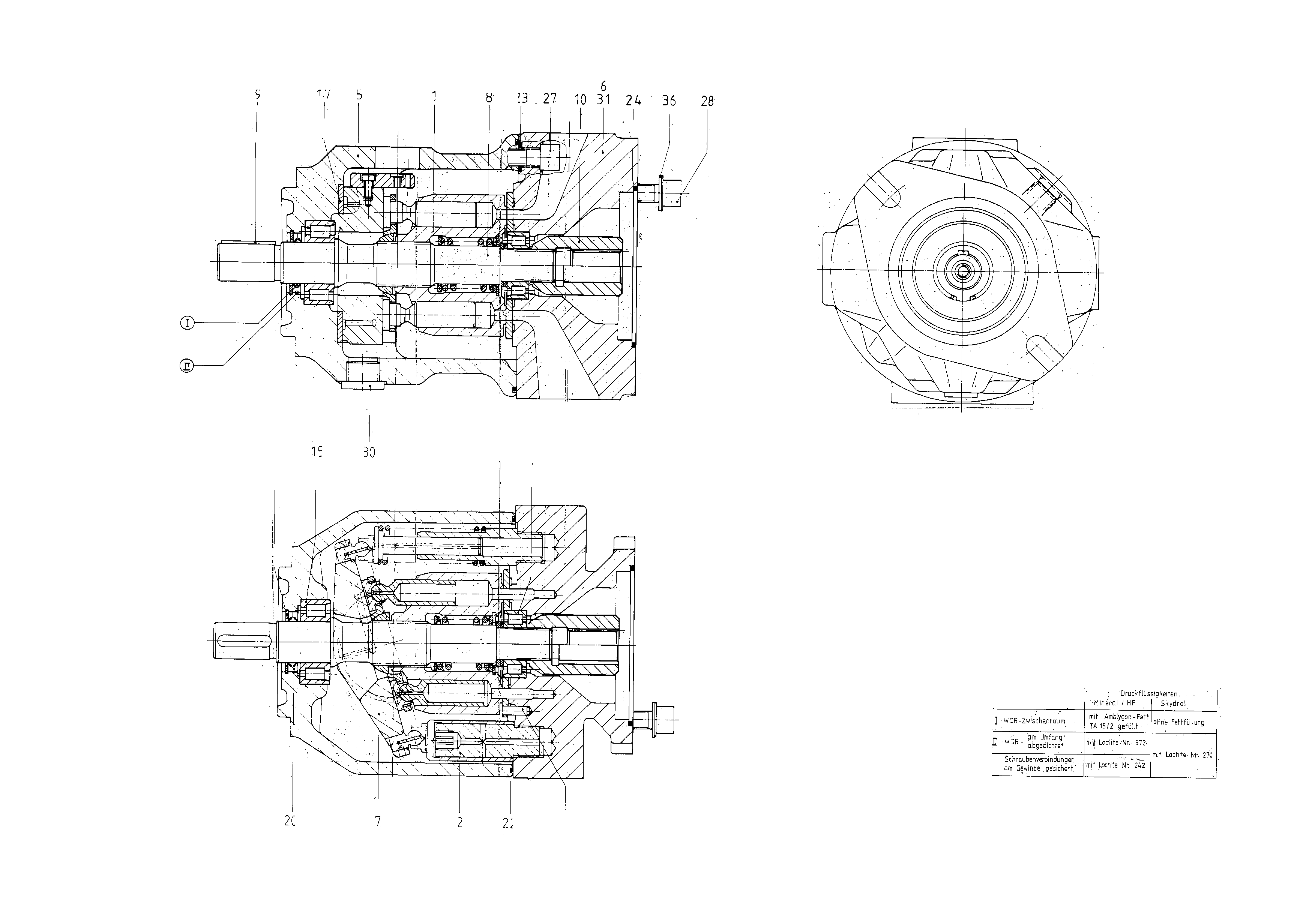

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902559903 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910910852 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902546051 | PUMP HOUSING | 1 | ||
| R910930605 | CONNECTION PLATE | 1 | ||
| R910961029 | SWASH PLATE Assembly parts list →L | 1 | ||
| R902417385 | DRIVE SHAFT | 1 | ||
| R910749265 | PARALLEL KEY | 1 | ||
| R910943529 | SPLINED COUPLING | 1 | ||
| 12 | R910938955 | ADJUSTMENT SHIM | 2 | |
| R910710911 | CYL. ROLLER BEARING | 1 | ||
| 16 | R910710938 | CYL. ROLLER BEARING | 1 | |
| R910900198 | BEARING SHELL | 2 | ||
| R910916104 | SHAFT SEALING RINGD | 1 | ||
| R910793698 | O-RINGD | 1 | ||
| R913052111 | R-RINGD | 4 | ||
| R910357049 | O-RINGD | 1 | ||
| 25 | R902403814 | RETAINING RING | 1 | |
| R910220264 | SOCKET HEAD CAP SCREW | 4 | ||
| R910967343 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 33 | R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | HFA, HFB, HFC hydraulic fluid | E |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
