Unit · CONTROL

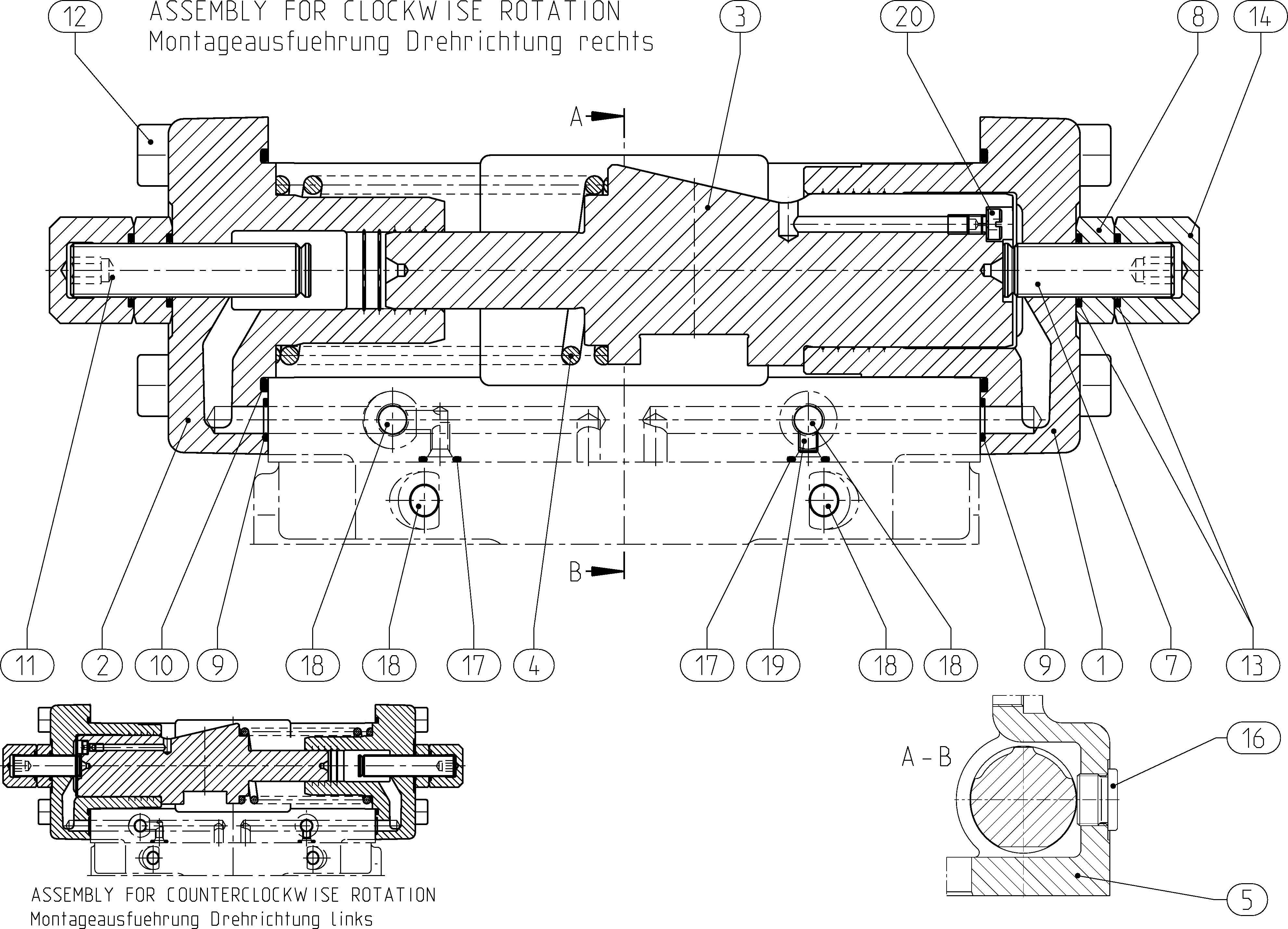

V A4VS 71 DR -SO806R910927285
Control Bosch Rexroth series A4VS, type code VA4VS71DR-SO806, material number R910927285.
- Number
- R910927285
- Type code
- V A4VS 71 DR -SO806
- Group
- A4VS 71
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902555542 | PISTON HOUSING | 1 | ||
| R910907979 | PISTON HOUSING | 1 | ||
| R902531051 | ADJUSTING PISTON | 1 | ||
| R910943108 | COMPRESSION SPRING | 1 | ||
| R910922441 | PUMP HOUSING | 1 | ||
| R902519540 | STUD BOLT | 1 | ||
| R910903387 | NUT | 2 | ||
| R910942134 | R-RINGD | 2 | ||
| R910530492 | O-RINGD | 2 | ||
| R902519541 | STUD BOLT | 1 | ||
| R910119091 | SOCKET HEAD CAP SCREW | 8 | ||
| R910401803 | O-RINGD | 4 | ||
| R910903389 | CAP NUT | 2 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R910942134 | R-RINGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910678899 | SETSCREW | 1 | ||
| R910930563 | SOCKET HEAD CAP SCREW | 1 |
