Unit · CONTROL

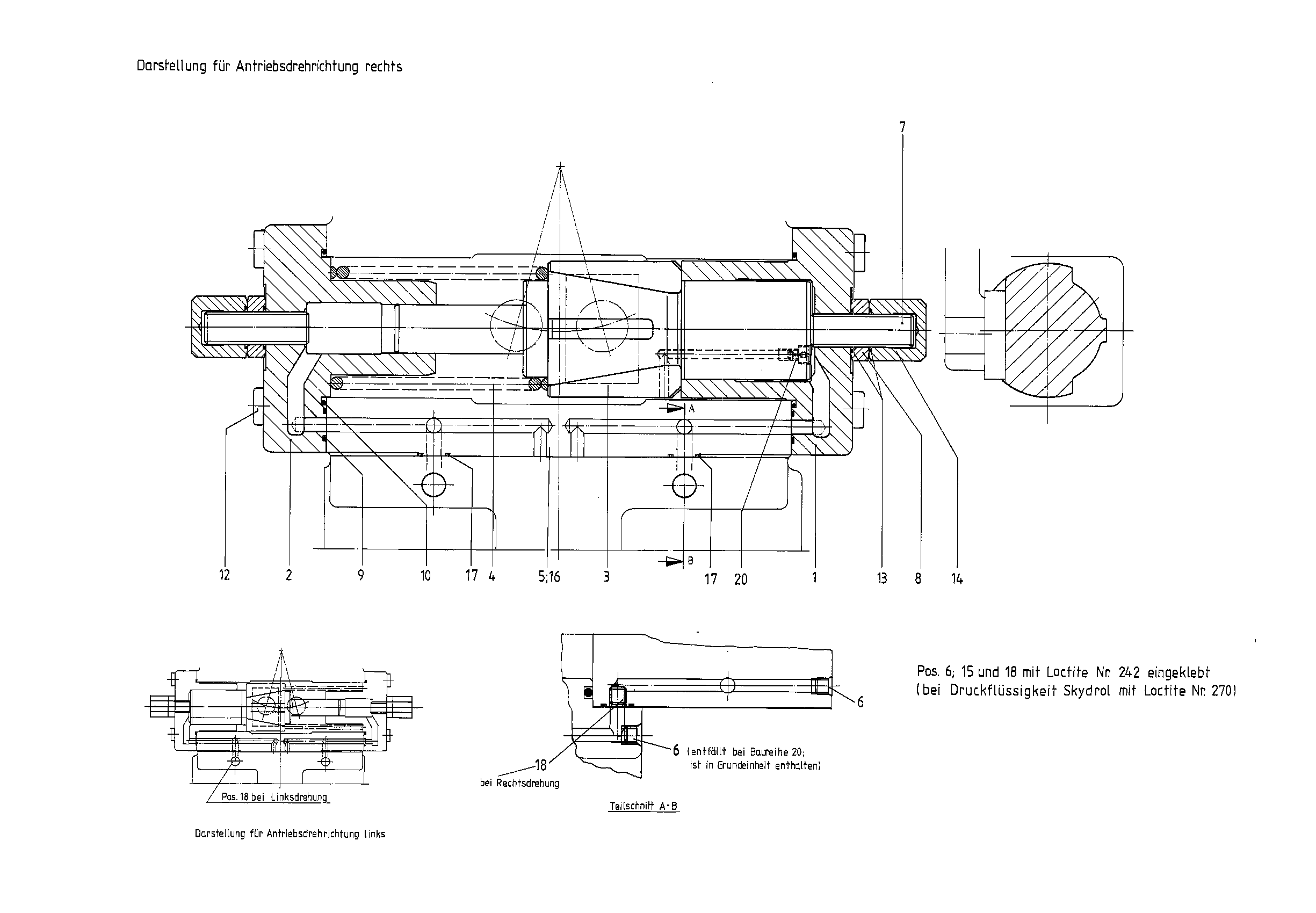

V A4VS 125 DR MOORING -SO103R910927362
Control Bosch Rexroth series A4VS, type code VA4VS125DRMOORING-SO103, material number R910927362.
- Number
- R910927362
- Type code
- V A4VS 125 DR MOORING -SO103
- Group
- A4VS 125
- Edition
- 02/2021
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910903736 | PISTON HOUSING | 1 | ||
| R910903728 | PISTON HOUSING | 1 | ||
| R902407536 | ADJUSTING PISTON | 1 | ||
| R910943111 | COMPRESSION SPRING | 1 | ||
| R902451455 | REPAIR KIT | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910042617 | SETSCREW | 2 | ||
| R910903326 | NUT | 2 | ||
| R910522449 | O-RINGD | 2 | ||
| R902650321 | R-RINGD | 2 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 8 | ||
| R910903130 | O-RINGD | 4 | ||
| R910903327 | CAP NUT | 2 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R910522449 | O-RINGD | 2 | ||
| R910118664 | SETSCREW | 1 | ||
| R910927343 | NOZZLE | 1 |
