Unit · BASE UNIT

GE A10V O 28 OV /31R-PSC61N00R910927612

Base unit Bosch Rexroth series A10VO, type code GEA10VO28OV/31R-PSC61N00, material number R910927612. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC Not for through drive (61). Through drive: without through drive (N00).

Number: R910927612
Type code: GE A10V O 28 OV /31R-PSC61N00
Group: A10VO 28
Edition: 06/2020

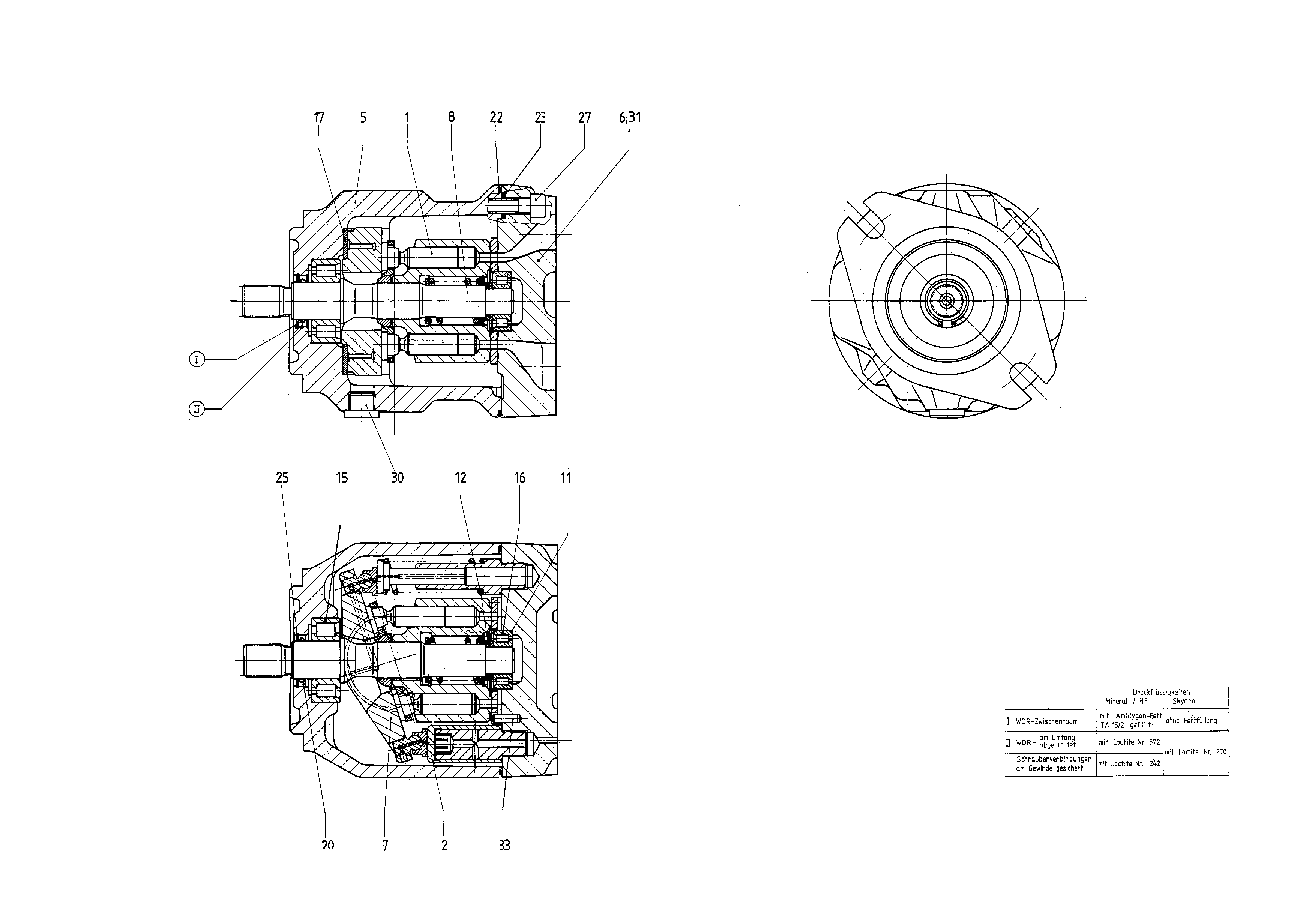

Pos.	Number	Name	Qty
	R902439597	ROTARY GROUP Assembly parts list →L	1
	R910911162	ADJUSTING PIECE Assembly parts list →L	1
	R902550217	PUMP HOUSING	1
6	R910947938	CONNECTION PLATE	1
	R910960813	SWASH PLATE	1
	R902417366	DRIVE SHAFT	1
	R902400789	ADJUSTMENT SHIM	2
	R910739502	CYL. ROLLER BEARING	1
	R910739529	CYL. ROLLER BEARING	1
17	R910902778	BEARING SHELL	2
	R910916103	SHAFT SEALING RINGD	1
	R910730041	O-RINGD	1
23	R913052108	R-RINGD	4
25	R902403815	RETAINING RING	1
	R910110191	SOCKET HEAD CAP SCREW	4
	R909153338	SCREW PLUGD	1
31	R909831318	DOUBLE BREAK-OFF PLUG	1
33	R902533908	STRAIGHT PIN	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	28	28
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC Not for through drive	61
Through drive	Without through drive	N00

Parameters from the type code
