Unit · INDICATING DEVICE

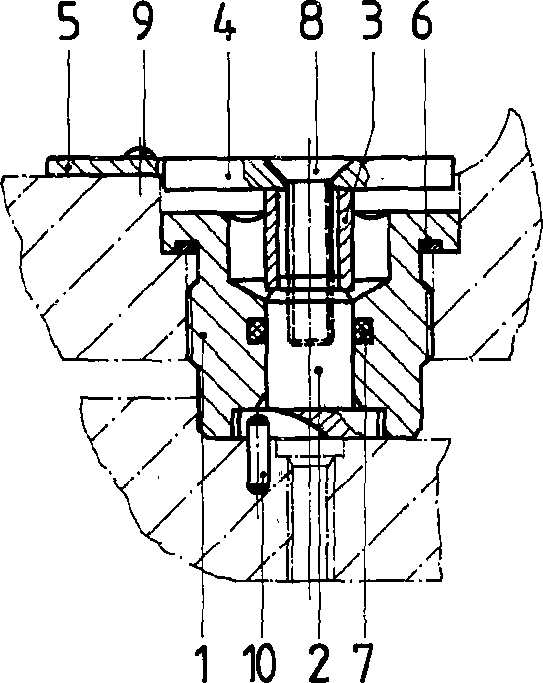

INDICATING DEVICE A4VS 125/180/22 -PR910928485
Axial piston pump Bosch Rexroth series A4VS, type code INDICATINGDEVICEA4VS125/180/22-P, material number R910928485.
- Number
- R910928485
- Type code
- INDICATING DEVICE A4VS 125/180/22 -P
- Group
- A4VS 125
- Edition
- 02/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910789534 | STUD BOLT | 1 | ||
| R910928465 | DRIVER PIVOT | 1 | ||
| R910798398 | DISTANCE PIPE | 1 | ||
| R910765422 | POINTER | 1 | ||
| R910907462 | DIAL | 1 | ||
| R910744514 | SEAL RINGD | 1 | ||
| R910929484 | QUAD RINGD | 1 | ||
| R910797472 | COUNTERSUNK-HEAD SCREW | 1 | ||
| R910928490 | STRAIGHT PIN | 1 |
